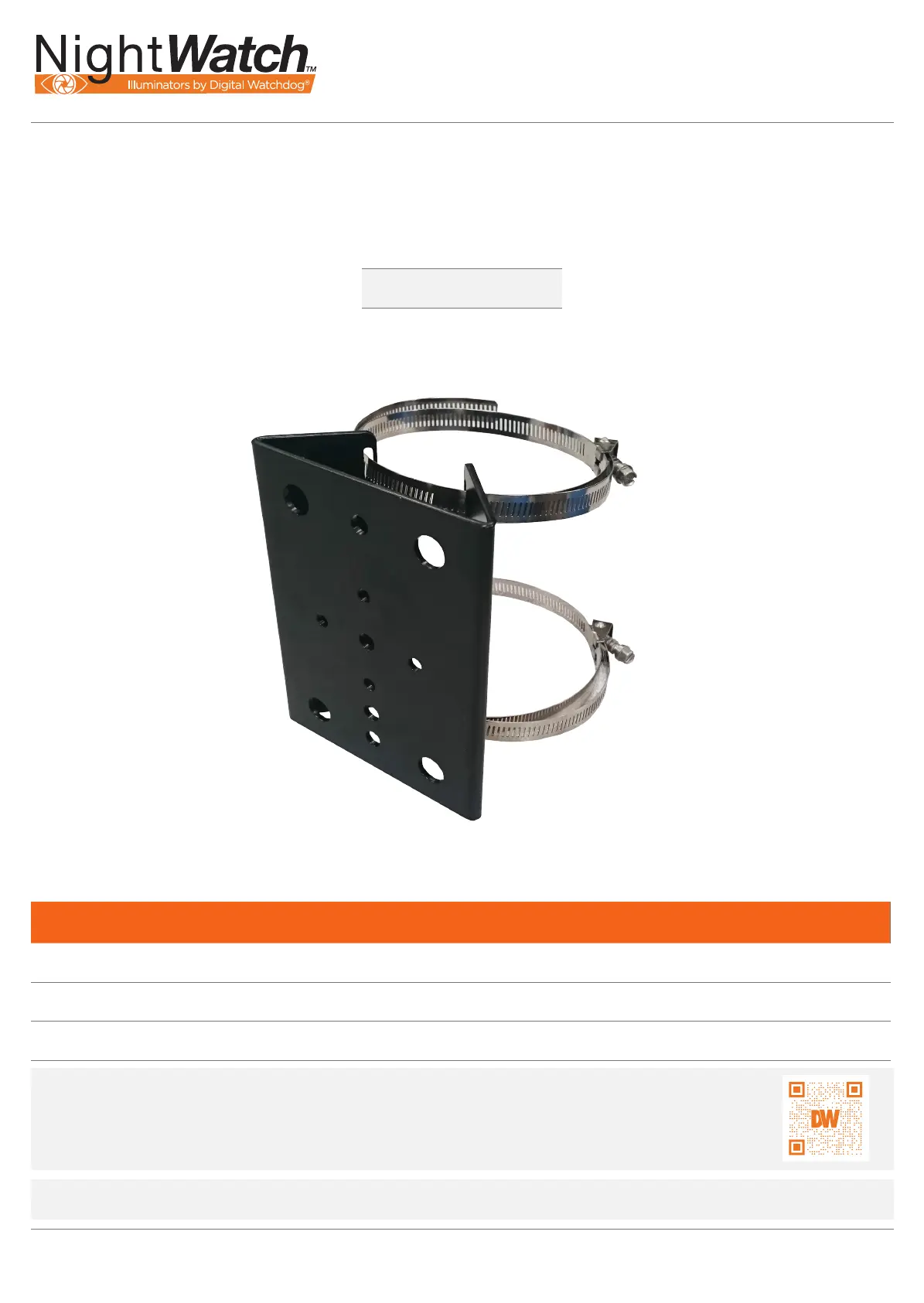

Pole–mount bracket for LED illuminators
DW-ILPM1
v
Attention: This document is intended to serve as a quick reference for initial setup.
It is recommended that the user read the entire instruction manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
digital-watchdog.com
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources.
2. Search for your product by entering the part number in the search bar. Results Search by Product’
for applicable part numbers will populate automatically based on the part number you enter.
3. Click ‘Search’. All supported materials, including manuals and quick start guide (QSGs) will
appear in the results.
Quick Start Guide
WHAT’S IN THE BOX
1 x pole mount bracket
1 x pole clips
1 x quick setup guide
46-3595/(813)888-9555
m
port Hours: 9:00AM – 8 00PM
Rev Date: 08/19
Copyright © Digital Watchdog. All rights reserved.
Specification s and pricing are subject to change without notice.
Quick Start Guide
INSTALLING THE POLE MOUNT BRACKET
Single pole mount bracket is compatible with all DW® NightWatch™ illuminators including DW-ILWM1,
DW-ILWM2 and DW-ILWM3 mount brackets.
The pole mount bracket comes with stainless steel straps to fit 2.95” to 7.87” (7.5 to 20 cm) diameter poles.
LED ILLUMINATOR INSTALLATION WITH POLE MOUNT BRACKET
1 2
3
Place the bracket against the pole in the required position. Thread the steel straps through the slots
located in the bracket and tighten around the pole with a suitable wrench.
A single illuminator can be mounted to the bracket using M6 nuts and bolts. Vertical adjustment can be made
using the two hex bolts on each side of the illuminator. Mounting holes are also provided to pair with single
(DW-ILWM1), double (DW-ILWM2) and triple mounting (DW-ILWM3) brackets.
Pole moun]ng bracket compa]ble with all DW Infra-Red and White-Light illuminators including
WM1,DW-ILWM2andDW-ILWM3moun]ngbrackets.

mpa]ble with all DW Infra-Red and White-Light illuminators including
LWM3moun]ngbrackets.
