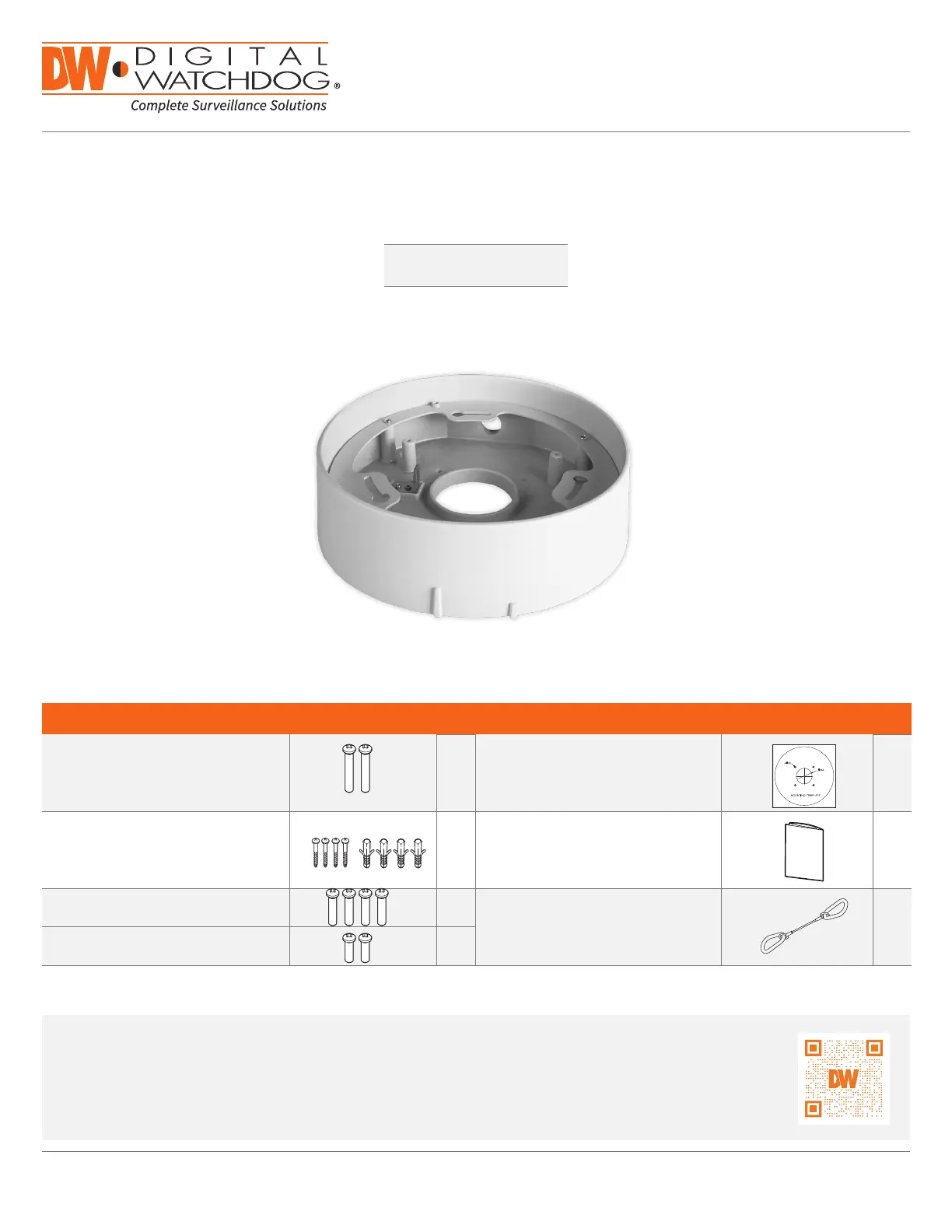

DWC-PV20JUNCW
Junction box for vandal dome cameras
Quick Start Guide
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM 8:00PM EST, Monday through Friday
digital-watchdog.com
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the search bar. Results ‘Search by Product’
for applicable part numbers will populate automatically based on the part number you enter.
3. Click ‘Search’. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
WHAT’S IN THE BOX
Camera Mounting Screws 2 Mounting Template 1
Screws and Plastic Anchors 4 1Quick Setup Guide
Gang Plate Mounting Screws.
Type A Installation 4
Safety Wire 1
Gang Plate Mounting Screws.
Type B Installation 2
1 Using the mounting template or the junction box itself, mark and drill the
necessary holes on the mounting surface.
2 Secure the junction box to the mounting surface using the screws and
anchors included.
3 Ax the safety wire at the bottom of the mounting brackets base. Connect
the other side of the safety wire to the base of the camera.
4
To mount the camera to the mounting accessory, remove the dome from
the camera base using the wrench included with the camera.
NOTE: Do not touch the lenses when handling the camera modules.
5
Pass wires through and make all necessary connections.
6
Secure the camera to the mounting bracket using the included screws. Align
the indented lines on the side of the camera with the lines on the mounting
bracket as seen in the image below. Rotate the camera clockwise to lock it
into position.
UNLOCK LOCK
7
Adjust the camera modules’ position and angle and complete the
installation by placing the dome cover on the camera. Secure the dome
cover to the camera base using the screws included with the camera. See
the camera’s QSG for more information.
Quick Start Guide
Rev Date: 08/21
Copyright © Digital Watchdog. All rights reserved.
Specications and pricing are subject to change without notice.
INSTALLATION
Junction box
Camera module
Camera dome cover
INSTALLATION WITH GANG BOX OR HANDY BOX (OPTIONAL)
Type A: Handy boxes Type B: 2-gang handy box/switch box
NOTE: When mounting the junction box to
a gang box using installation option
B, use the wall anchors and screws to
secure the junction box and gang box
to the mounting surface.
