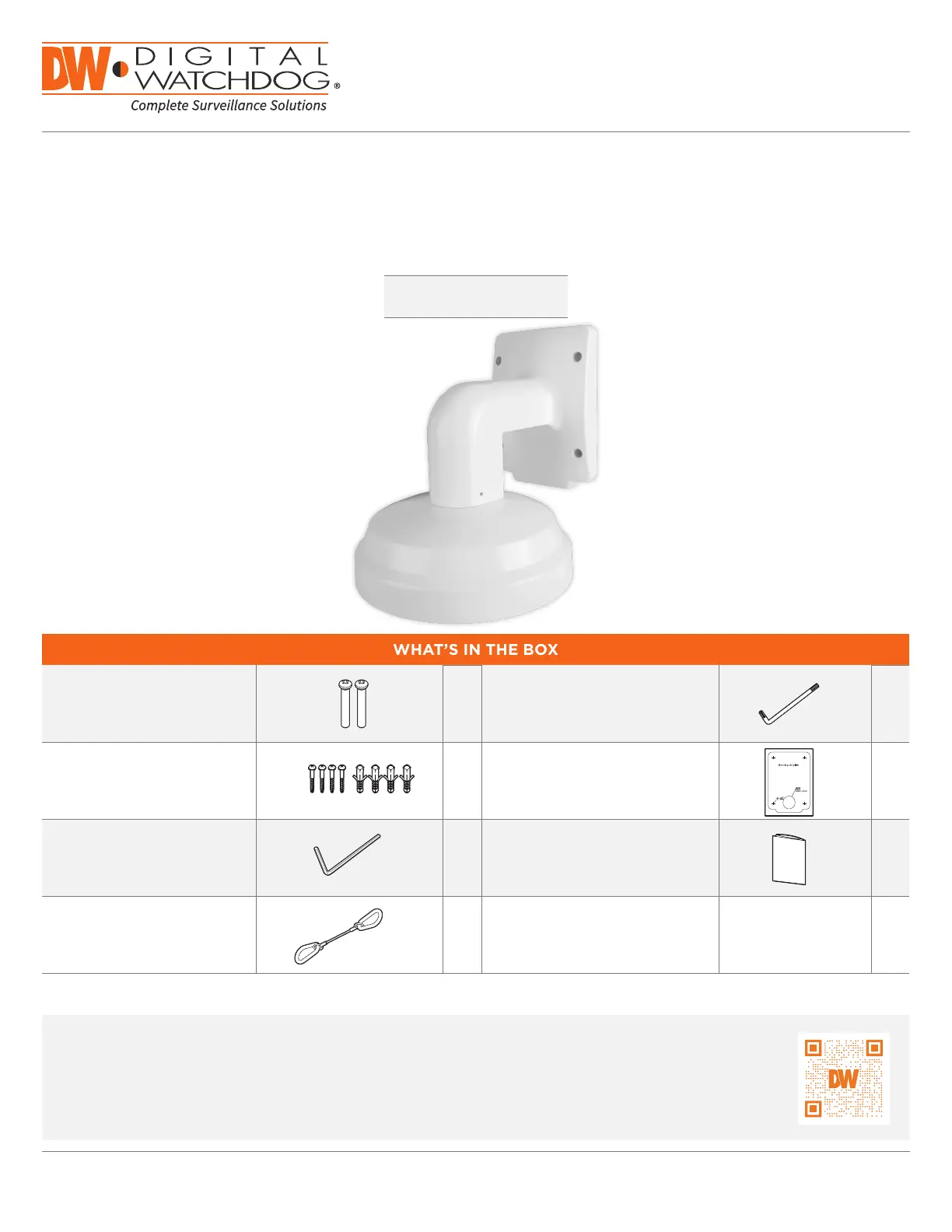

Wall mount bracket for multi-sensor
vari-focal cameras
Quick Start Guide
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
digital-watchdog.com
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the search bar. Results Search by Product’
for applicable part numbers will populate automatically based on the part number you enter.
3. Click . All supported materials, including manuals ‘Search’
and quick start guide (QSGs) will appear in the results.
DWC-PV20WMW
Camera Mounting Screws 2 Star Wrench (T20) 1
Screws and Plastic Anchors 4 Mounting Template 1
Hexagonal Wrench 1 1Quick Setup Guide
Safety Wire 1
Quick Start Guide
Rev: 08/21
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
1 Using the mounting template or the mounting brackets junction box itself, mark and drill the necessary holes on the mounting
surface.
2
Secure the mounting bracket to the mounting surface using the screws and anchors that were included with the mount.
3 Using the T20 star wrench that was included, open the junction box part of the mounting accessory.
4
Pass wires through the junction box’s neck.
5 Connect the wall mount’s base into the neck, and secure using the screws on the side of the neck. Use the hexagonal wrench to
secure the screws in place.
6 Ax the safety wire at the bottom of the mounting bracket’s base. Connect the other side of the safety wire to the base of the
camera.
7 To mount the camera to the mounting accessory, remove the dome from the camera base using the wrench included
with the camera.
NOTE: Do not touch the lenses when handling the camera modules.
8
Pass wires through and make all necessary
connections.
9
Secure the camera to the mounting bracket
using the included screws. Align the indented
lines on the side of the camera with the lines
on the mounting bracket as seen in the image
below. Rotate the camera clockwise to lock it
into position.
UNLOCK LOCK
10
Adjust the camera modulesposition and
angle and complete the installation by
placing the dome cover on the camera. Secure
the dome cover to the camera base using
the screws included with the camera. See the
cameras QSG for more information.
INSTALLATION
Wall mount junction
box and neck
Camera module
Camera dome cover
Wall mount base
