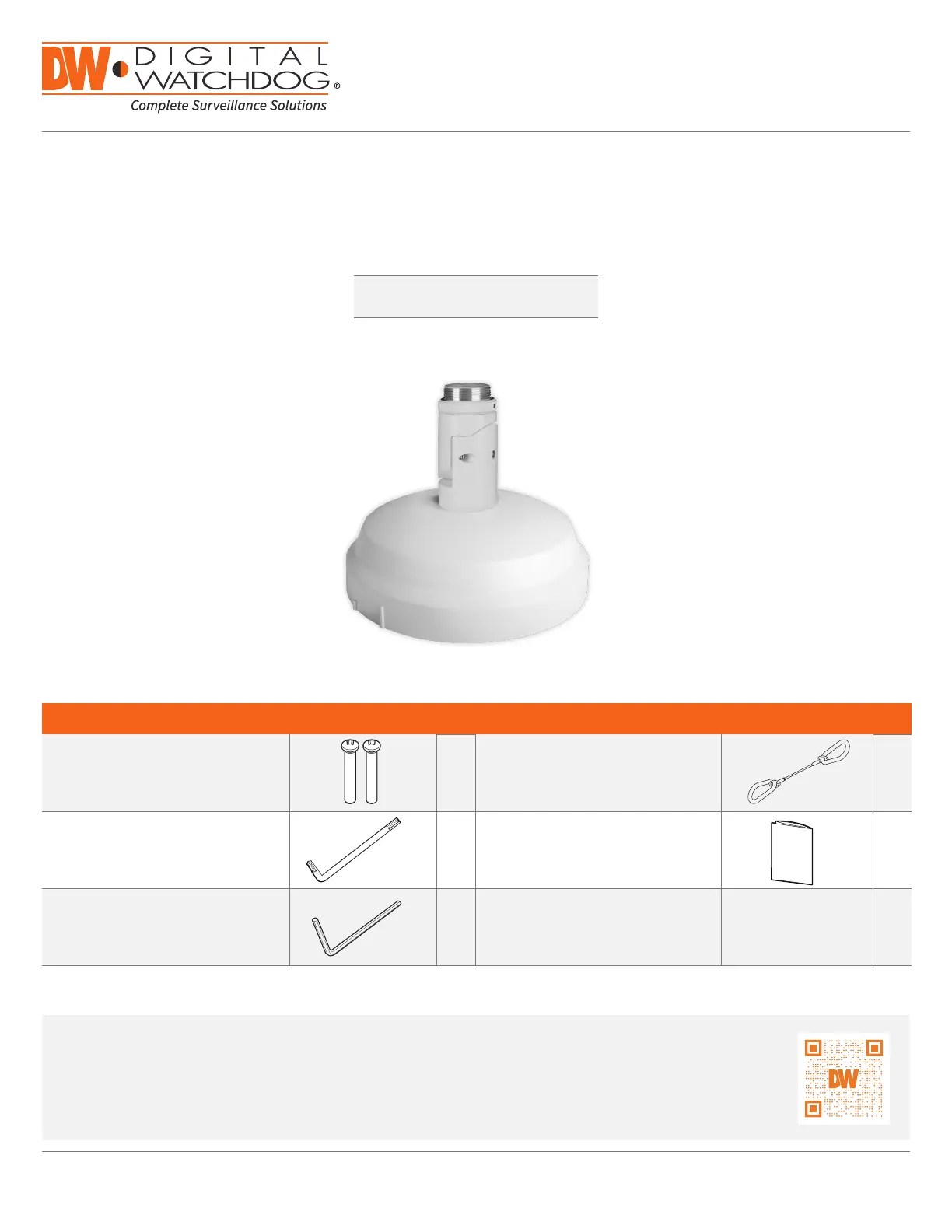

DWC-PV20ADPW
Tilting adapter for multi-sensor camera with vari-focal lens modules and
DWC-PZPARAM
Quick Start Guide
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM8:00PM EST, Monday through Friday
digital-watchdog.com
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the search bar. Results ‘Search by Product
for applicable part numbers will populate automatically based on the part number you enter.
3. Click ‘Search’. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
WHAT’S IN THE BOX
Tilt Mounting Screws 2 Safety Wire 1
Star Wrench 1 1Quick Setup Guide
Hexagonal Wrench 1
5
Connect the
mounting
accessory’s base
into the tilting
adapter, and secure
using the screws
on the side of the
adapter. Use the
hexagonal wrench to secure the screws in place.
6
Ax the safety wire at the bottom of the mounting bracket’s
base. Connect the other side of the safety wire to the base of
the camera.
7
Pass the wires through the rest of the accessory and make all
necessary connections in the camera.
8
To mount the camera to the mounting accessory, remove the
dome from the camera base using the wrench included with
the camera.
NOTE: Do not touch the lenses when handling the camera
modules.
9
Secure the camera to the mounting bracket using the
included screws. Align the indented lines on the side of the
camera with the lines on the mounting bracket as seen in
the image below. Rotate the camera clockwise to lock it into
position.
UNLOCK LOCK
10
Adjust the camera modules’ position and angle and complete
the installation by placing the dome cover on the camera.
Secure the dome cover to the camera base using the screws
included with the camera. See the camera’s QSG for more
information.
1 Before the installation, disassemble the tilting adapter by unscrewing the screw in the center of the female side and separating
the male and female parts and the O-ring in the center.
2 Connect the male part of the tilting adapter to the parapet mount bracket by rotating it clockwise until tightly secured. Secure
the connection by tightening the pipe nut using the hexagonal wrench included with the adapter.
3
Pass wires through the parapet mount, the male part of the tilting adapter, the O-ring in the center of the tilting adapter and
the female part of the tilting adapter.
4
Adjust the tilt angle from the three available options. Lock the bracket into the
desired angle using the star T-20 wrench included with the tilting adapter.
Quick Start Guide
Rev: 09/21
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
INSTALLATION
30
015
Tilting adapter
screws
Camera base
Camera dome cover
Mount base
Female part
Pipe nut
Mounting bracket neck
Male part
