4K HDMI over HDBaseT Transmitter
with PoH | Bi-directional IR & RS-232 (70m/230ft)
TX-70-POH Quickstart Guide
In the Box
1x TX-70-POH Transmitter
1x 2-pin Screw Down Phoenix Connector
1x 3-pin Screw Down Phoenix Connector
1x IR Emitter
1x Broadband IR Receiver (30KHz~50KHz)
2x Mounting Brackets
1x Quickstart Guide (this document)

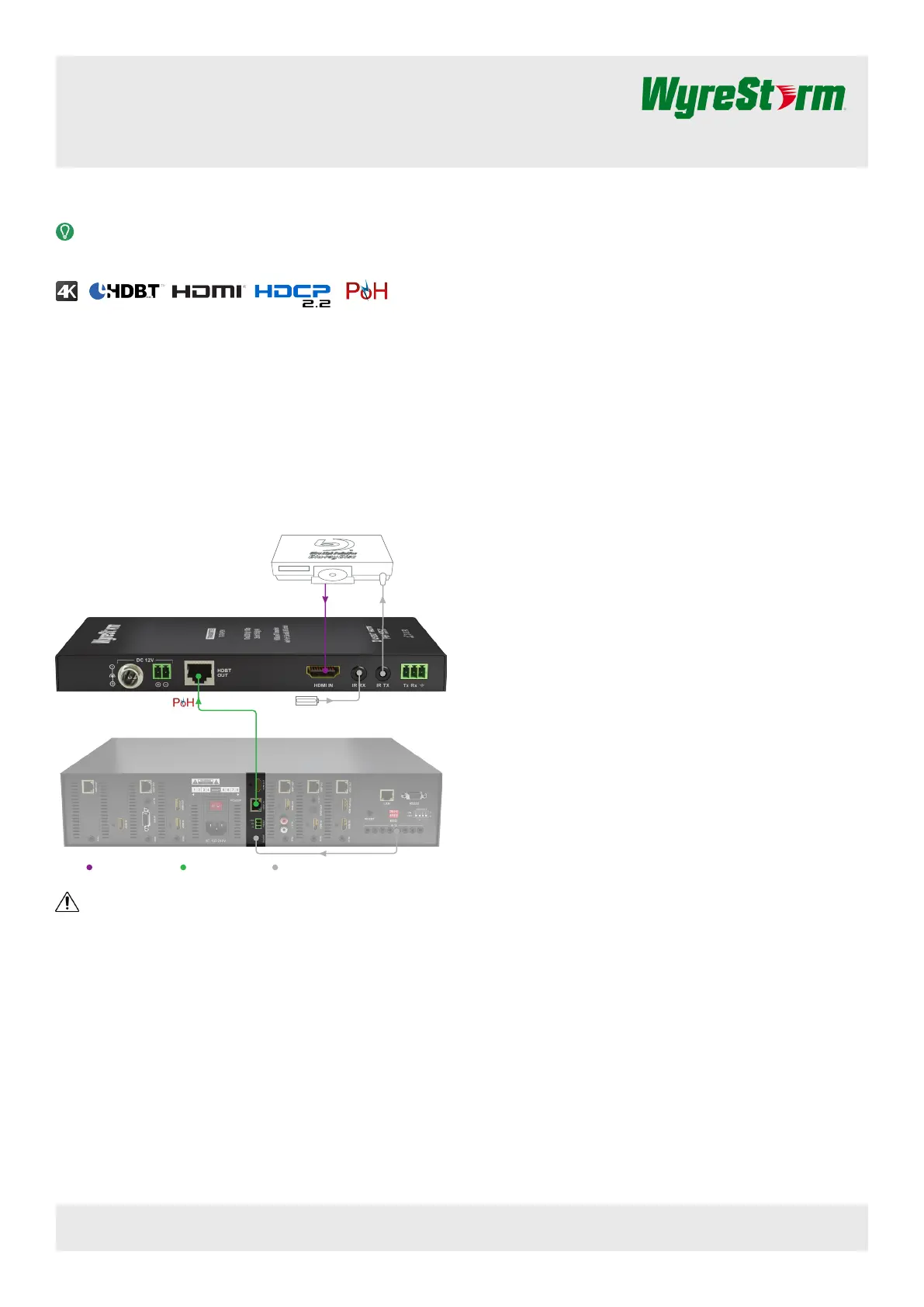

Basic Wiring Diagram
IR
Key HDMI/Digital Video HDBaseT/Ethernet
TX-70-POH
IR TX to IR Loop
(Required for remote source control)
MX-0808-PP-POH-CUSTOM with TX-POH-100
UHD Source
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Recommended Products
To take full advantage of the features of this receiver, WyreStorm
recommends the following products be used within the system.
• HDBaseT Matrix Switchers with HDBT In
The TX-70-POH was designed to be work with the HDBT In found on
some WyreStorm matrixes to allow remote devices to be used as a
source.
• MX-0808/1616-PP-POH-CUSTOM with TX-POH-100
• SW-1001-HDBT
• Cable for Connecting to IR Connecting Blocks/Control Systems
When connecting the IR RX to an IR connecting block or control
system, use the cable to remove the sleeve WyreStorm CAB-IR-LINK
+5V DC supplied by the IR Ext/IR RX ports.
Before Beginning
• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the In The Box
list.
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the matrix/
receiver location. See for resolution Supported Video Resolutions
distance restrictions. Terminate the cable per the HDMI/HDBaseT
Wiring section.
2. (Optional) If using 3rd party IR emitters or connecting blocks, run
the wire and terminate per the section.IR TX (Emitter) Wiring
3. (Optional) If using 3rd party IR receivers, run the wire and terminate
per the section.IR RX (Receiver) Wiring
4. (Optional) If using RS-232 pass-through, run the wire and terminate
per the section.RS-232 Wiring
Transmitter Installation
1. Install the matrix/receiver following the documentation provided
with the product.
2. Connect an HDMI source to the on the transmitter using HDMI In
an HDMI cable from a high quality brand such as WyreStorm
Express.
3. Using the cable created in Pre Wire step 1, connect the 8-pin RJ-45
female plug to the jack.HDBT In
4. (Optional) Using the included IR emitter or the cable created in
Pre Wire step 2, place an IR emitter onto a source device near the
device’s IR sensor. Connect the 3.5mm (1/8in) Mono Plug to an IR
TX port.
5. (Optional) Using an included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an port. If using a control system, use the IR Ext
WyreStorm CAB-IR-LINK Pre Wire or the cable created in step 3.
6. (Optional) If using RS-232 pass-through, connect the 3-pin
connector to the port on the receiver and the opposite end RS-232
to a port on the device being controlled.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
TX-70-POH Quickstart Guide | 151124
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.
PoH-Compatible HDBaseT transmitter to send HD Video & Audio 70m/230ft over HDBaseT.
Front Panel
Rear Panel
Power In 5.5mm Male Barrel Jack
Connection to this jack is not required when using PoH. See Power Supply Wiring.
HDBT Out 8-pin RJ-45 female
Connect to the of a matrix or HDBaseT transmitter.HDBT Out
HDMI In 19-pin type A HDMI female:
Supports HDMI and DVI/D (requires adapter-not included).
IR TX/RX
IR TX - 3.5mm (1/8in) Mono Jack:
Connect to the supplied IR emitter to control a local device from the remote display location via HDBaseT.
IR RX - 3.5mm (1/8in) Stereo Jack:
Connect to the supplied IR receiver to send IR to the remote display via HDBaseT.
See IR Wiring.
RS-232
3-pin Screw Down Phoenix Connector
Used to send and receive RS-232 signals to/from the source location via HDBaseT and rmware updates. See RS-232
Wiring.
RS-232 Mode
Switches the mode for the RS-232 port.
Normal: RS-232 HDBaseT pass-through.
Update: RS-232 rmware update.
Power LED Solid: The transmitter is powered On
Off: The transmitter is powered Off
Status LED Flashing: The transmitter is operating normally.
Off: The transmitter is Not operating normally.
HDCP LED
Solid: Audio and Video signal is HDCP protected.
Flashing: Audio and Video signal is not HDCP protected.
Off: No Audio and Video signal.
LINK LED Solid: Link to receiver has been established
Flashing: Link to receiver has not been established
A B C D E
A B C D E
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
TX-70-POH Quickstart Guide | 151124
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
support@wyrestorm.com
2 of 4
HDMI/HDBaseT Wiring
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables,
and electrical or environmental interference can have an adverse
effect on HDMI or HDBaseT transmission limiting performance. Steps
should be taken to minimize these factors (or remove completely)
during installation for best results.
• While similar in nature, the HDBaseT protocol is different than Ethernet
and voltages provided for PoH can be higher than those provided by
PoE. For this reason, never connect an HDBaseT link to an Ethernet
router or switch to avoid damaging the connected devices.
Wiring for HDBaseT follows the EIA T568B standard.
Pin 1
Pin 8
Wire colors shown follow EIA/TIA-568B standard.
Pin 1:
Pin 2:
Pin 3:
Pin 4:
Pin 5:
Pin 6:
Pin 7:
Pin 8:
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
Supported Video Resolutions
The type of category cable used and the distance between the
transmitter and receiver can restrict the available video resolution.
Cable Type Range Supported Resolution
Cat5/5e/6
70m/230ft 1080p@60Hz 48bit
35m/115ft 1080p@60Hz 3D
4K@60Hz 4:2:0 24bit
Cat6a 100m/328ft 1080p@60Hz 48bit
1080p@60Hz 3D
IR Wiring
IR TX (Emitter) Wiring
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
Tip: IR Signal
Sleeve: Ground (GND)
IR RX (Receiver) Wiring
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that
outputs +5V DC to power the included IR receiver.
IMPORTANT! IR TX Connection Guidelines
3rd party IR receivers may require a different voltage, refer to the
documentation provided with the IR receiver before making any
connections to avoid damaging the device.
When connecting to an IR control system use the WyreStorm CAB-IR-
LINK cable to remove the sleeve +5V DC.
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
RS-232 Wiring
RS-232 Connection Guidelines
The following wiring diagram shows the pinouts for the extender set.
While not shown, connect the TX (transmit) to RX (receive) pins at the
control system or PC side of the cable.
Most control systems and computers are DTE where pin 2 is RX, this can
vary from device to device. Refer to the documentation for the connected
device for pin functionally to ensure that the correct connections can be
made.
Wire colors shown follow EIA-561 standard.
Pin 1:
Pin 2:
TX (Transmit)
RX (Receive)
Pin 3: Ground (GND)
1 2 3
Power Supply Wiring
The TX-70-POH can receive power via PoH from a compatible HDBaseT
matrix. Should the distance or other factors prevent PoH from being
used, connect a 12V DC 1A power supply (sold separately) to the
receiver.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
TX-70-POH Quickstart Guide | 151124
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
support@wyrestorm.com
3 of 4
