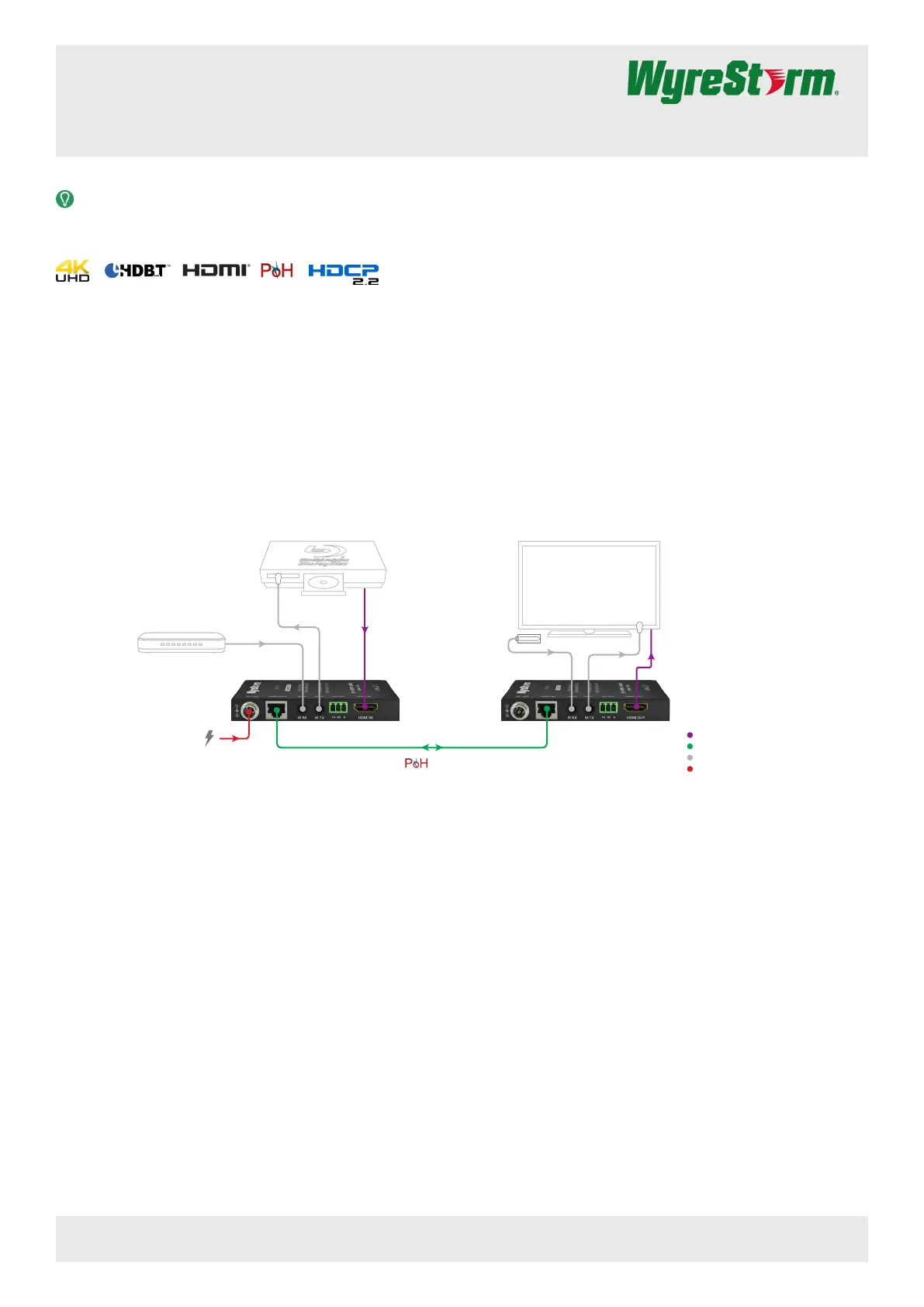

4K UHD HDBaseT Extender Set

with HDCP 2.2 & 2-way PoH

EX-70-G2 Quickstart Guide

Identifying Product Versions

This product was released in 2 different versions which contain different

chassis designs and feature sets. The differences are identied throughout

this document in order to make installation and use easier. Versions can

be identied by a v# after the model number on the product chassis model

number sticker. Note that version 1 of this product may not contain a v1 after

the product while all version 2s will contain a v2 after the model number.

In the Box

1x EX-70-G2 Transmitter

1x EX-70-G2 Receiver

1x 18V DC 1A Power Supply (US/UK/EU)

1x IR Emitters

1x IR Receivers

2x 3‐pin Screw Down Male Phoenix Connectors

4x Mounting Brackets (2x for TX | 2x for RX)

1x Quickstart Guide (this document)

Basic Wiring Diagram

EX-70-G2 Quickstart Guide | 180919

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

HDMI

IR Emitter

IR Receiver

18V DC 1A

Power Supply

IR to Control System

CAB-IR-LINK (Sold Separately)

EX-70-G2 Transmitter (TX) EX-70-G2 Receiver (RX)

HDMI Source HDMI Display

KEY

HDMI

HDBaseT Cat5e/6/6a

IR TX and RX

Power

HDBaseT

Cat6/6a/7

Front Panel (TX/RX) Rear Panel (TX/RX)

Power LED Solid: The receiver is powered On

Off: The receiver is powered Off

Status LED Flashing: The receiver is operating normally.

Off: The receiver is Not operating normally.

HDCP LED

Solid: HDCP content is present.

Flashing: HDCP content is not present.

Off: No signal.

LINK LED

Solid: Link to receiver has been established.

Flashing: Link to receiver has not been

established.

Power Input

5.5mm Screw Down Barrel Jack

Connect to the included 18V DC 1A power

supply to the transmitter or receiver. A power

supply is not required on the other end as it

will be powered using PoH.

See for important Power Supply Wiring

information.

HDBT In

HDBT Out

8-pin RJ-45 female

Connect the transmitters HDBT Out to

receivers HDBT In.

IR TX/RX

IR TX - 3.5mm (1/8in) Mono Jack: Connect

to the supplied IR emitter to control a local

device from the remote display location via

HDBaseT.

IR RX - 3.5mm (1/8in) Stereo Jack: Connect

to the supplied IR receiver to send IR to the

remote display location via HDBaseT.

See for more IR TX/RX Guidelines

information.

RS-232 1x RS-232: 3-pin Phoenix (v2 chassis only)

HDMI In (TX)

HDMI Out (RX)

19-pin type A HDMI female

Supports HDMI and DVI/D (requires adapter -

not included).

EX-70-G2 Quickstart Guide | 180919

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

EX-70-G2 Transmitter

EX-70-G2 Receiver

A B C D

EX-70-G2 Transmitter

EX-70-G2 Receiver

A B C ED

EX-70-G2 Quickstart Guide | 180919

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

3 of 4

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

IR TX/RX Guidelines

• Using WyreStorm infrared emitters and receivers is the best way to ensure

that most IR coding formats are transmitted and received by the NetworkHD

system. Other 3rd party emitters and receivers can be used; however, these

devices must operate in the same manner as the WyreStorm devices.

• Due to differences in IR across 3rd party control systems their IR ports

should never be connected directly to a NetworkHD system as an

incompatibility may exist. WyreStorm offers a cable that compensates for

voltage differences as well adjusts for differences in the pins used within the

port. Refer to the product page for more information.CAB-IR-LINK

IR TX Port Pinout

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

IR RX Port Pinout

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs

+5V DC to power the included IR receiver.

RS-232 Wiring

The EX-70-G2 v2 uses a 3-pin RS-232 with no hardware ow control. Most

control systems and computers are DTE where pin 2 is RX, this can vary

from device to device. Refer to the documentation for the connected device

for pin functionally to ensure that the correct connections can be made. This

connection is not available on the v1 version of this product.

3rd Party Device

Pin 1 TX (Transmit) > To > RX (Receive)--- ---

Pin 2 RX (Receive) > To > TX (Transmit)--- ---

Pin 3 G (Gro d) > To > G (Gro d)un --- --- un

WyreStorm Co ectornn

Power Supply Wiring

The EX-70-G2 can supply power from the transmitter to the receiver using PoH on the same category cable that transmits audio and video. The included power

must be connected to the transmitter in order to power the receiver (or vise versa). Should distance of the category cable or other factors prevent PoH from
