HDMI KVM Extender Set
with USB 2.0 Extension
EXP-EX-80-KVM Quickstart Guide
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
EXP-EX-80-KVM Quickstart Guide | 200330
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

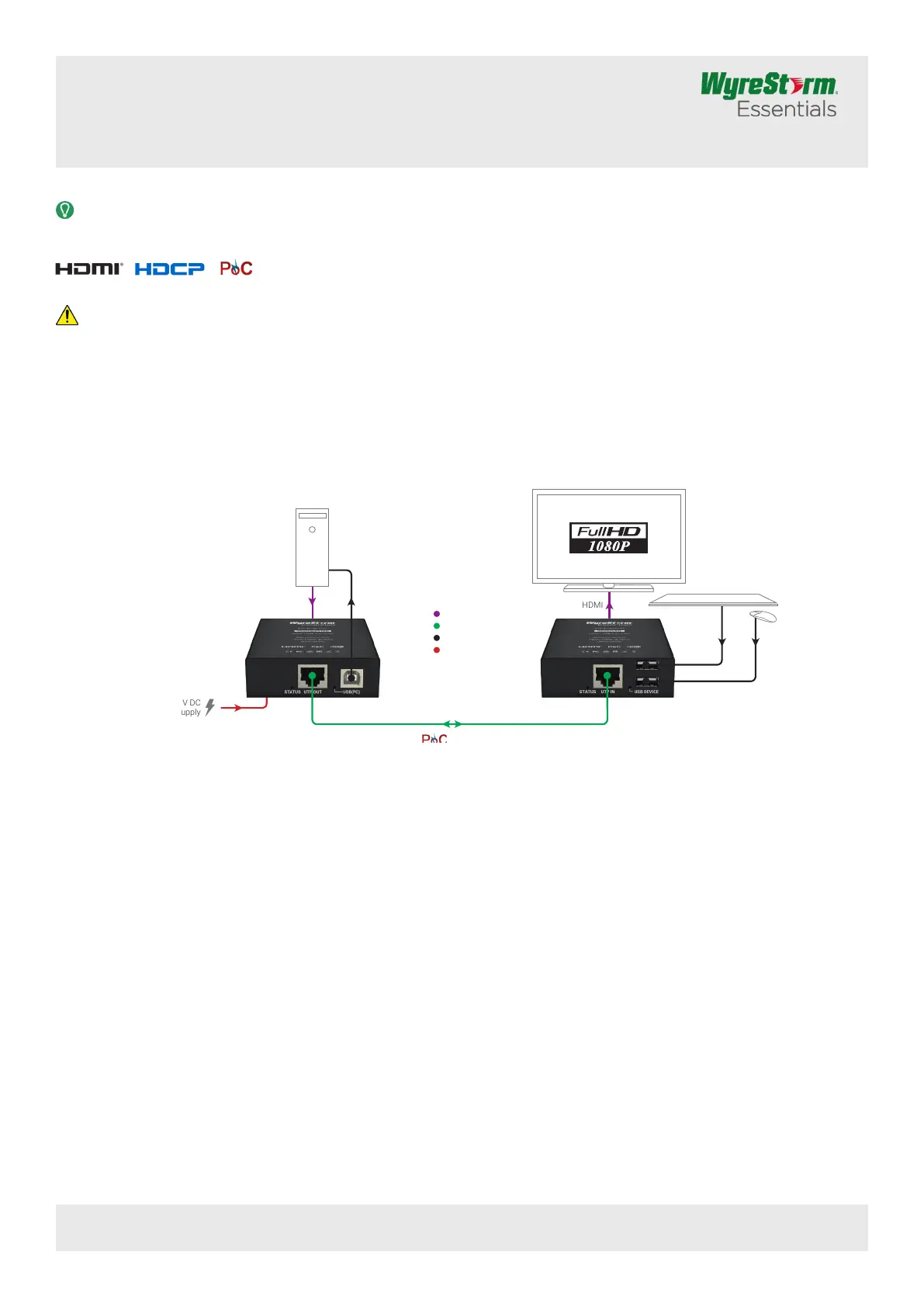

Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
In the Box
1x EXP-EX-80-KVM Transmitter
1x EXP-EX-80-KVM Receiver
1x 12V DC 2A Power Supply (US/UK/EU/AU)
1x USB Type B to Type A Cable
4x Mounting Brackets
HDMI
HDMI Monitor/Display
Keyboard and Mouse
12V DC
Power Supply
Cat5e/6/6a/7
HDMI USB
USB
EXP-EX-80-KVM Transmitter (TX) EXP-EX-80-KVM Receiver (RX)
KEY
HDMI
Cat5e/6/6a/7
USB
Power
Personal Computer
Transmitter (Front/Rear) Receiver (Front/Rear)
HDMI In 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
Power LED Solid: The unit is powered On
Off: The unit is powered Off
Power In
5.5mm Screw Down Barrel Jack
Connect to the included 12V DC 2A power
supply to the transmitter. A power supply
is not required on the other end as it will be
powered using PoC.
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
EUTP Out
8-pin RJ-45 female
Connect the transmitters UTP OUT to
receivers UTP IN.
FUSB LED
Solid: USB linked
Flashing: USB data transmitting
Off: No USB device connected
GUSB (PC) Host USB Type B female
Connection of USB Host device
HDMI Out 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
Power LED Solid: The unit is powered On
Off: The unit is powered Off
Power In
5.5mm Screw Down Barrel Jack
Connect to the included 12V DC 2A power
supply to the transmitter. A power supply
is not required on the other end as it will be
powered using PoC.
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
EUTP In
8-pin RJ-45 female
Connect the transmitters UTP OUT to
receivers UTP IN.
FUSB LED
Solid: USB linked
Flashing: USB data transmitting
Off: No USB device connected
GUSB Device
2x USB Type A female
Connection of USB devices such as
keyboards and mice.
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
EXP-EX-80-KVM Quickstart Guide | 200330
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
A B C D E F G A B C D E F G
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
EXP-EX-80-KVM Quickstart Guide | 200330
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
3 of 4
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends the use of shielded category cable to minimize
signal noise and interference.
• WyreStorm recommends using pre-terminated HDMI cables due to the
complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
.
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiving device
• Verify that all HDMI and UTP connections are not loose and are functioning
properly
• Verify that the UTP cable is properly terminated following EIA568B standard
• Verify that the output resolution of the source and display is supported by
this extender
Failed USB Connection or Slow Transmission rate
• Ensure the category cable length is within the range of requirement, USB HID
device is within 80m/260ft, USB storage device is within 60m/200ft.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
