4K HDR HDMI-Over-HDBaseT Receiver
with ARC & Audio Return
RXV-70-4K-ARC Quickstart Guide
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-70-H2 v2 Quickstart Guide | 190319
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

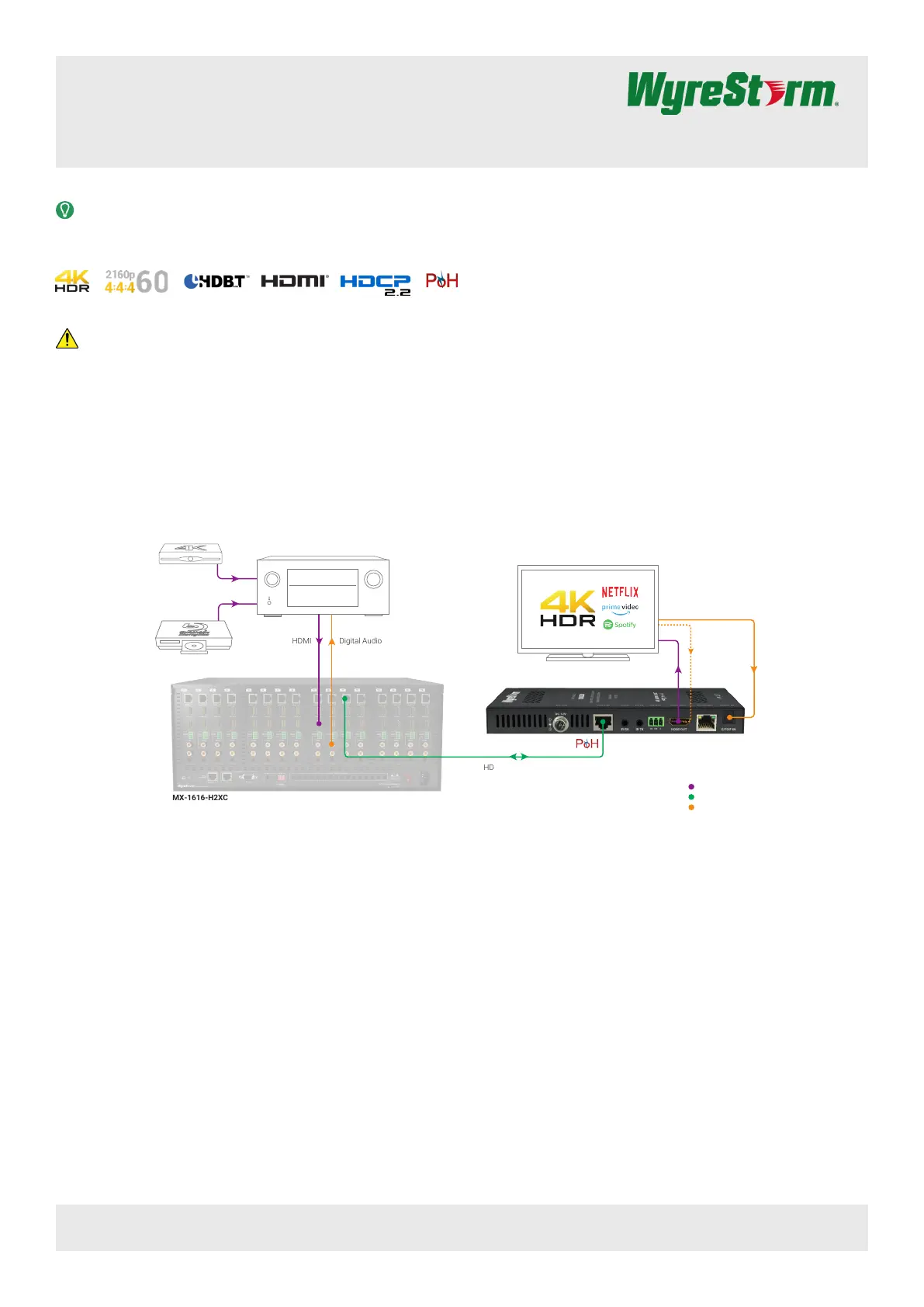

Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x RXV-70-4K-ARC Receiver
1x IR Emitter
1x IR Receiver
1x 3-pin Terminal Block
2x Mounting Brackets
1x Quickstart Guide (this document)
HDMI
HDMI
RXV-70-4K-ARC Receiver
MX-1616-H2XC
4K HDR HDMI Display
Audio
Return
Channel Digital
Audio
Digital Audio
KEY
Digital Audio
HDBaseT / Ethernet
HDMI
HDBaseT Cat6/6a/7
Note: HDMI or S/PDIF I/O
available for audio return
4K HLG Source
4K HDR Source HDMI
HDMI
AV Receiver
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-70-H2 v2 Quickstart Guide | 190319
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends the use of shielded category cable to minimize
signal noise and interference.
• WyreStorm recommends using pre-terminated VGA, HDMI, and DP cables
due to the complexity of these connector types. Using pre-terminated
cables will ensure that these connections are accurate and will not interfere
with the performance of the product.
.
IR TX/RX Guidelines
• Using WyreStorm infrared emitters and receivers is the best way to ensure
that most IR coding formats are transmitted and received by the NetworkHD
system. Other 3rd party emitters and receivers can be used; however, these
devices must operate in the same manner as the WyreStorm devices.
• Due to differences in IR across 3rd party control systems their IR ports
should never be connected directly to a NetworkHD system as an
incompatibility may exist. WyreStorm offers a cable that compensates for
voltage differences as well adjusts for differences in the pins used within the
port. Refer to the product page for more information.CAB-IR-LINK
IR TX Port Pinout
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
Tip: Anode
Sleeve: Cathode (IR Signal)
IR RX Port Pinout
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs
+5V DC to power the included IR receiver.
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
RS-232 Wiring
The RXV-70-4K-ARC uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary from
device to device. Refer to the documentation for the connected device for pin
functionally to ensure that the correct connections can be made.
3rd Party Device
Pin 1 TX (Transmit) > To > RX (Receive)--- ---
Pin 2 RX (Receive) > To > TX (Transmit)--- ---
Pin 3 G (Gro d) > To > G (Gro d)un --- --- un
WyreStorm Co ectornn
Audio Wiring
This receiver contains audio connections for S/PDIF TOSLINK (Digital Optical) input. Due to the nature of optical cables we recombined using pre-terminated
cables for this connection.
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-70-H2 v2 Quickstart Guide | 190319
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
3 of 4
Setup and Conguration
ARC and Audio In Settings
The audio returned to the matrix can be congured to be either from the
displays HDMI ARC channel or the S/PDIF In on the receiver. Set the switch on
the front of the receiver accordingly.
Set the switch to to send the audio returned ARC
from the display connected to the receivers HDMI
Out via Audio Return Channel back to the matrix.
Set the switch to the to send audio from S/PDIF In
the receivers S/PDIF In back to the matrix.
EDID Conguration
This receiver uses EDID pass-through from the display to the source. No conguration is required for EDID settings.
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiver.
• Verify that the HDBaseT cable is properly terminated following EIA568B
standard.
• Verify that the output resolution of the source and display is supported by
this extender.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
• Verify that all source and HDBaseT connections are not loose and are
functioning properly
No or Intermittent 3rd party Device Control
• Verify that the RS-232/Ethernet cables are properly terminated.
• Verify that emitters/receivers are compatible with WyreStorm IR.
• If using an IR control system, verify that it is connected using the CAB-IR-
LINK cable.
