Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343 1

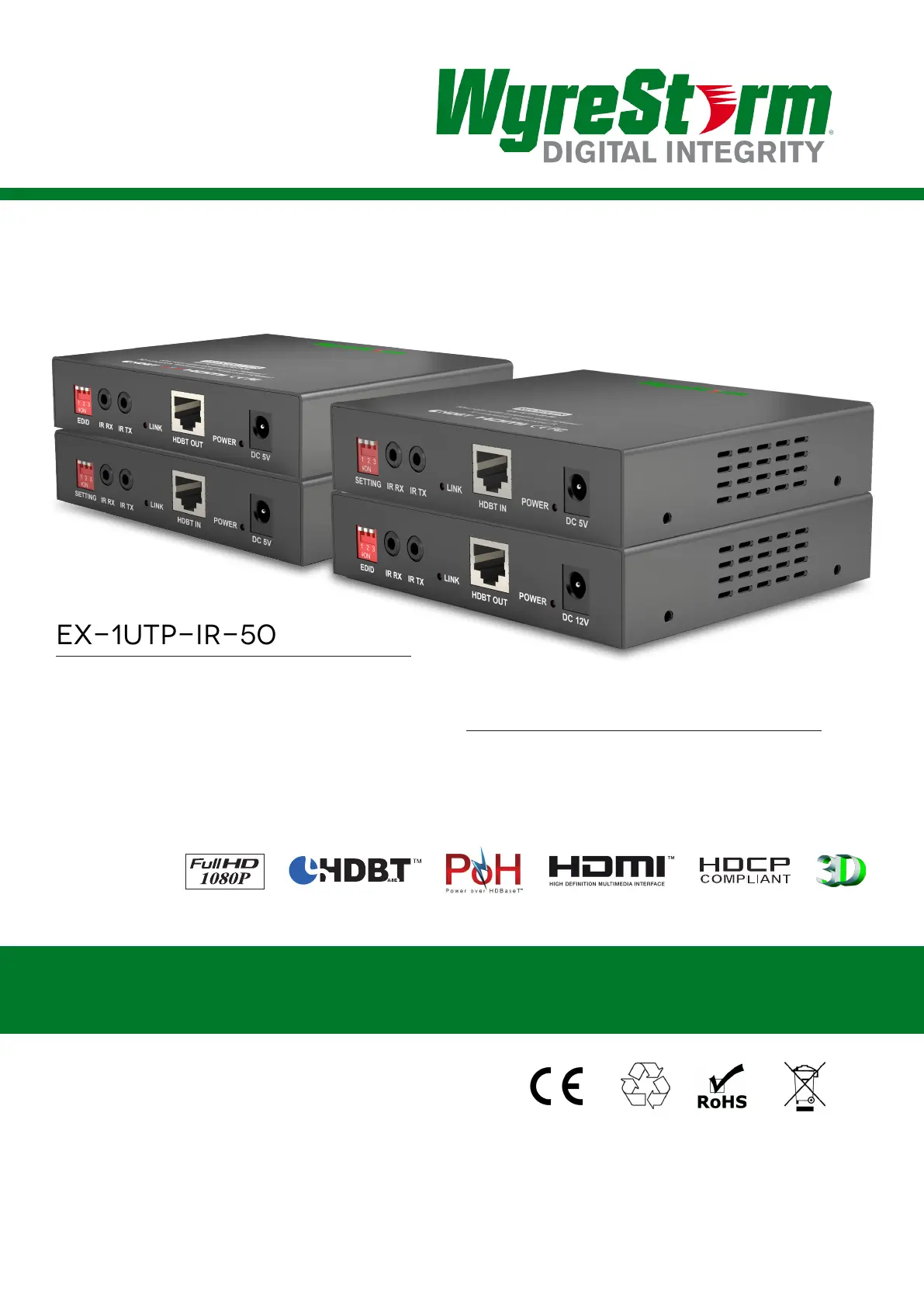

Instruction Manual
Thank you for choosing this WyreStorm product.
Please read these instructions carefully before installing to avoid complications later.
EX-1UTP-IR-50-POH
50M/164FT HDMI Extension Over HDBaseT incl.
Remote Power, full 3D & Bidirectional IR
EX-1UTP-IR-50
50m/164ft HDMI Extension over HDBaseT incl.
full 3D & Bidirectional IR
Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343
2
Contents
CONTENTS, INTRODUCTION, FEATURES, AND FEATURES
• HDBaseT extenders capable of 1080p HD @60Hz and
HD multichannel audio transmissions up to 50m/164ft
under perfect conditions*
• Discrete two-way IR control signal together with HDMI
signal over a single Cat5e/6/7 cable
• Power-over-HDBaseT (PoH) - 12v Mains connected
Transmitters pass unidirectional power along the Cat5e/6
to remotely power display receivers - no additional power
required at display locations. (EX-1UTP-IR-50-POH only)
• Fully supports 3D applications - frame packing/
sequential (Blu-ray) and Interlaced Stereoscopic (satellite/
cable) broadcasts
• Supports 36bit Deep Colour
• HDMI V1.4
• Cable termination follows IEEE-568B standards
• HDCP compliant
• Automatically adjusts feedback, equalisation and
amplication of signal for easy installation.
• LED indication for visual power and HDMI / HDBaseT
video signal status.
* Perfect transmission conditions denote straight cable
runs with no electrical interference, bends, kinks, patch
panels or wall outlets.
1. Introduction
The WyreStorm EX-1UTP-IR-50 and EX-1UTP-IR-
50-POH extender models feature Class B HDBaseT
technology for an even more aordable HDBaseT
extender solution over shorter distances up to
50m/164ft.
Designed for smaller projects that may not require the
feature set of full HDBaseT yet still benet from the
signal stability and functions oered by this powerful
technology, including distribution of full 1080p HD
video, HD audio and bidirectional IR, with the PoH
model including remote power passed through a single
Cat5e/6 cable from the transmitter to power the display
receiver.
The EX-1UTP-IR-50 and POH Extender models
comprise of a transmitter and receiver to distribute
full, uncompressed HD 1080p video @60Hz, HD
multichannel audio with bidirectional discrete IR control
of source and display from either location over distances
of up to 50m/164ft using a single shielded or unshielded
Cat5e/6 cable.
The EX-1UTP-IR-50-POH features Power-over-HDBaseT
technology, that enables the transmitter to draw 12v
power from a mains supply and pass the current along
the length of a single Cat5e/6 cable along with the video,
audio and control signals to power the receiver - no
power access is necessary at the display location for
ease of installation and connection; meaning no additional
power adaptors required and improved energy eciency.
Transmitters of both models include EDID management
to manually handle device communication via DIP
switch setting, with Receivers containing cable distance
setting mode to encourage successful transmission if
the distance of the cable run is an issue. Transmitters
and receivers of both models also feature protection
against ESD (electrostatic discharge) to further stabilise
transmission with LED indication on the unit housing
providing clear conrmation of power and signal link
status.
Both models are fully cascadable with distribution
increased by connecting multiple extenders for greater
exibility, whatever the application.
2. Features
Introduction
Features
Safety Precautions
Packaging Contents
Specication
Typical Application
Troubleshooting
FAQ’s
EDID & Distance Setting
Maintenance
Product Service
Panel Description
i. EX-1UTP-IR-50 Transmitter & Receiver
ii. EX-1UTP-IR-50 - POH Transmitter & Receiver
Connection & Operation
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
16
17
Mail In Service
Warranty
Warranty Limits and Exclusions
Installation Notes
Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343 3
SAFETY PRECAUTIONS, PACKAGE CONTENTS AND SPECIFICATION
3. Safety Precautions
• 1 x WyreStorm EX-1UTP-IR-50 / EX-1UTP-IR-50-
POH Transmitter
• 1 x WyreStorm EX-1UTP-IR-50 / EX-1UTP-IR-50-
POH Receiver
• 1 x Printed product manual and quick start guide (also
downloadable from this product main page)
• 2 x pairs of mounting brackets for transmitter/receiver
• 2 x 5VDC power supply (EX-1UTP-IR-50) / 1 x 12VDC
power supply (EX-1UTP-IR-50-POH)
• 1 x IR TX for IR control of to Source device from
display zone
• x IR RX to receive IR control signals in Display zone
to Source. (IR frequency range: 940nm IR Frequency:
38KHZ)
5. Unplug apparatus from power supply during
lightening storms or when unused for long periods
of time.
6. Protect the power cable from being walked on,
pinched or restricted in any way, especially at plug
connections.
7. Only use attachments/accessories specied by the
manufacturer.
8. Units contain non-servicable parts - Refer all
servicing to qualied service personnel.
4. Package Contents
5. Specication
1. Do not expose this apparatus to rain, moisture,
sprays, drips or splashes and ensure that no
objects containing liquids are placed on the
apparatus, including cups, glasses and vases.
2. Do not place this unit in a conned space such as
enclosed shelving, cabinets or bookshelves.
Ensure the unit is adequately ventilated.
3. To prevent the risk of electric shock or re hazard
due to overheating, do not cover the unit or
obstruct ventilation openings with material,
newspaper, cardboard or anything that may restrict
airow into the unit.
4. Do not install near external heat sources such as
radiators, heat registers, boilers or any device that
produces heat such as ampliers or computers and
do not place near sources of naked ame.
Dimensions (WxHxD): 120mm/4.72” x 24mm/0.94” x 101mm/3.97”
Weight 0.36kg / 0.79lb (Each)
Operang Temperature Range: -5 to +35°C (-41 to +95 °F)
Operang Humidity Range: 5 to 90 % RH (no condensaon)
Video Amplier Bandwidth: 6.75Gbps
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: EX-1UTP-IR-50 5 volts p-p TTL (Transmier), 5 volts p-p TTL (Receiver)
EX-1UTP-IR-50-POH 12 volts p-p TTL (Transmier), 5 volts p-p TTL (Receiver)
Maximum Single Link Range: 1080p 36bit colour depth
HDMI Transmission distance: 1080p signal up to 15m/ 49 HDMI
Video Format Supported: VESA: 640x480, 800x600, 1024x768, 1280x1024, 1600x1200,
1920x1080, 1920x1200 DTV/HDTV: 480i/576i/480p/576p/720p/
1080i/1080p
Output Video: HDMI 1.4+HDCP (Sync mirrors source), including 3D - frame packing/
sequenal (Blu-Ray) and Stereoscopic (Satellite/Cable broadcasts)
Maximum Cat5e/6 transmission 1080p signal up to 50m / 164 (Under perfect transmission condions including
distance: straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.)
Power Consumpon: EX-1UTP-IR-50 2.5 Was (Transmier) 5 Was (Receiver)
EX-1UTP-IR-50-POH 15 Was (Transmier) 5 Was (Receiver) -
power drawn from Transmier or mains
BTU Rang (Brish Thermal Unit): EX-1UTP-IR-50 EX-1UTP-IR-50-POH 25.59 51.02
WARNING
To reduce the risk of re, electric shock
or product damage:
onal
ngs if
extender sets.
