CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This sym bol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

ISSUE 2

VIP-854

NETWORK TIE LINE MODULE

INTRODUCTION

The VIP-854 Network Tie Line Module allows two

end-points to be connected via an Ethernet

connection, bridging multiple trunk & station lines.

SPECIFICATIONS

Access Methods

 2 PBX, FXO (Trunk) Ports

 2 PBX, FXS (Station) Ports

Features

 RJ-45 for network connection

 2 RJ-11 FXO (Trunk) Ports

 2 RJ-11 FXS (Station) Ports

 2 Failover Phone Ports

 2 Relays with Form C contacts

 Front Panel Status & Network LEDs

 2.5mm Barrel Power Connector

 Power over Ethernet (802.3af) compliant

Dimensions/Weight

 1.38" H x 6.13" W x 5.25" D

(3.50cm H x 15.6cm W x 13.33cm D)

 Weight: 1.25 lbs. (0.57 kg)

Nominal Specifications

Input Impedance: 600 Ohms

Input Level: -10dBm

Output Impedance: 600 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 AMP @ 24VDC

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via Power over Ethernet (802.3af) Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty Item

1 VIP-854

1 VSP Document

2 Mounting Brackets w/ Hardware

4 Rubber Pads

INSTALLATION

NOTE: The telephone system referred to in

this manual is the customer premise

equipment such as an electronic key system,

a PBX or a dedicated single line telephone

sets. The VIP-854 is not intended for direct or

indirect connection to the public telephone

network. When used with a customer premise

telephone system such as a key system or

PBX system, these units are interfaced to the

FXS or single line station port, which is a fully

protected interface device. Also, the host

system must be configured to disallow central

office trunk conferencing in order to prevent

indirect connection to the public network.

Precautionary Designations

2 947644

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated

in a commercial environment. This

equipment generates, uses and can radiate

radio frequency energy and if not installed

and used in accordance with the instruction

manual, may cause harmful interference to

radio communications. Operation of this

equipment in a residential area may cause

harmful interference in which case the user

will be required to correct the interference at

his own expense.

Mounting

The VIP-854 is designed for wall or table

mounting.

Wall: Using the mounting brackets and hardware

provided, secure the VIP-854 to the wall.

Table: Provided with the VIP-854 are four rubber

stick on pads. Peel these pads off their carrier

backing and place at the four corners of the

bottom of the unit.

Power Connections

The preferred method of powering a VIP-854 is

via a Power over Ethernet (PoE) switch, meeting

the 802.3af specification.

If the rear panel barrel connector is used for

power, the preferred power supply is a Valcom

VIP-324D.

Make all signal connections prior to powering the

VIP-854, either via Power over Ethernet (802.3af)

or the Barrel Connector on the back of the

VIP-854.

Network Connection

The VIP-854 has one RJ-45 network connector

on the front panel.

Use a standard Ethernet patch cable to connect

the VIP-854 to an Ethernet switch. If using a

Power over Ethernet 802.3af compliant switch,

this front panel RJ-45 Ethernet connector will

supply power as well as network connectivity to

the VIP-854 unit.

Signal Connections

On the rear panel, the VIP-854 has 2 RJ-11 jacks

for connection to FXS circuits, 2 RJ-11 jacks for

FXO circuits, 2 RJ-11 jacks for failover telephone

connections and 1 terminal block for relay

connections.

Phone1, Phone2: Connect standard analog

Trunk lines to the VIP-854 via the rear panel RJ-

11 jacks labeled Phone1 or Phone2 (including

standard analog telephones). Tip and Ring

appears on pins 3 and 4 of these jacks.

Line1, Line2: Connect standard analog Station

circuits to the VIP-854 via the rear panel RJ-11

jacks labeled Line1 or Line 2 (including C.O. or

Centrex phone lines). Tip and Ring appear on

pins 3 and 4 of these jacks.

FP1, FP2: Connect a standard analog telephone

to the VIP-854 via the rear panel RJ-11 jack

labeled FP1 or FP2. Tip and Ring appear on pins

3 and 4 of these jacks.

In the event of power failure, the telephone in

FP1 will be able to access Line1 and FP2 will be

able to access Line2.

Relay Connections: Access to the 2 form C

relays is provided via a six pin screw terminal

block. The relays are labeled K1 and K2. Each

relay is brought out on three terminals. The

common contact is the middle terminal with the

normally closed contact on the left and the

normally open contact on the right. Relay

contacts are rated for 1A @ 24VDC.

Status Indicator Lights

The VIP-854 has 3 status indication lights on the

front panel.

STATUS: Flashes then illuminates to indicate

power.

LINK: Indicates 100 Mbit Ethernet connection

when illuminated. No activity indicates 10 Mbit

connection.

ACT: Indicator flashes to indicate network

activity.

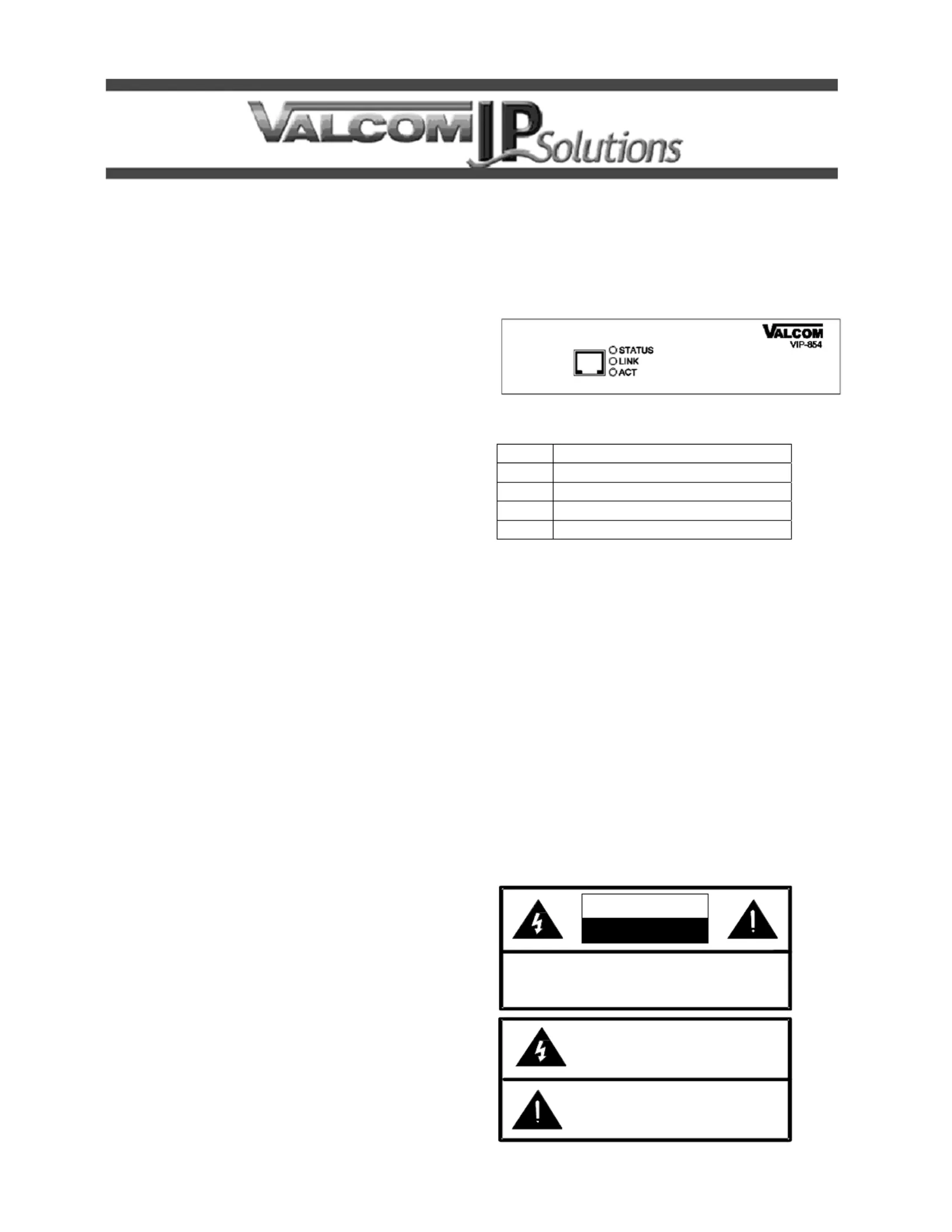

Front View

Rear View

3 947644

Setup

Information specific to your application will need

to be programmed into the VIP-854 using a

computer. The PC used for programming should

be connected to the same subnet as the VIP-854.

Setup will be done using the IP Solutions Setup

Tool. Download the latest version of the free IP

Solutions Setup Tool from the Valcom web site at

www.valcom.com/vipsetuptool.

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. Also, for VIP devices, verify network

connectivity to the device and multicast are

enabled on your network.

Assistance in troubleshooting is available from

the factory. Call (540) 563-2000 and Press 1 for

Technical Support or visit our website at

www.valcom.com

Valcom equipment is not field repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating your

company name, address, phone number, contact

person and the nature of the problem. Send the

unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of

normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever including, without

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified

immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road Roanoke, VA 24019-5056

Phone: (540) 563-2000 FAX: (540) 362-9800
