VOICE COIL DESKTOP SPEAKER
V-5330110
by
PagePac®
INTRODUCTION
The Desktop Speaker is a completely assembled
speaker unit for use with Voice Coil paging sys-
tems. Each speaker is equipped with 6-foot
speaker wire.
SPECIFICATIONS
FEATURES
• Volume Control
• Talkback
Dimensions/Weight
• 4.75”W x 1.75”H x 6.88”D
( 12.07cm X 4.5cm X 17.48cm)
• 3.0 lbs (1.4 kg)
OPERATION
The Desktop Speaker is recommended for use
with all PagePac® Voice Coil paging systems (or
equivalent systems) in which talkback is provided
(talkback is two-way communication between the
paging telephone and the paging loudspeaker).
However, the Desktop Speaker may be used with-
out talkback.
It is recommended that each Desktop Speaker,
when used with talkback, be a separate paging
zone. If this is not feasible, the total number of
Desktop Speakers in any one zone should be lim-
ited to two or less.
When installing PagePac Voice Coil Desktop
Speaker, be sure to use “B” or any similar crimp-
ing type connectors only. This will ensure a solid
connection that will not pull free or become inter-
mittent (see Figure 1).
VOLUME CONTROL
The “VOL” control adjusts the speaker volume in
both the page and music modes (see Figure 1). It
does not affect the talkback level.
INSTALLATION
Place the Desktop Speaker in the desired
location.
Connect the speaker cord to the speaker cable
run. The speaker run to which the Desktop
Speaker is connected must be connected to the
Voice Coil output of the PagePac 6 and PagePac
6 Plus.
TESTING
Access the Desktop Speaker and ensure that
paging occurs. While a page is in progress, adjust
the speaker volume with the VOL control.
Note: Generally, music volume should be
adjusted at the music source or on the PagePac 6
and PagePac 6 Plus MUSIC VOLUME control.
2 947185
TECHNICAL ASSISTANCE
When calling, have a VOM and a telephone test
set available and call from the job site. Call (540)
563-2000 and ask f r gePac echn cal p-o Pa T i Su
po t, or r visit our websites at http://www.pagepac.com
and www.valcom.com.
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature of
the problem. Send the unit to:
Valcom, Inc.
PagePac® Repair Dept.
5614 Hollins Road
Roanoke, VA 24019-5056

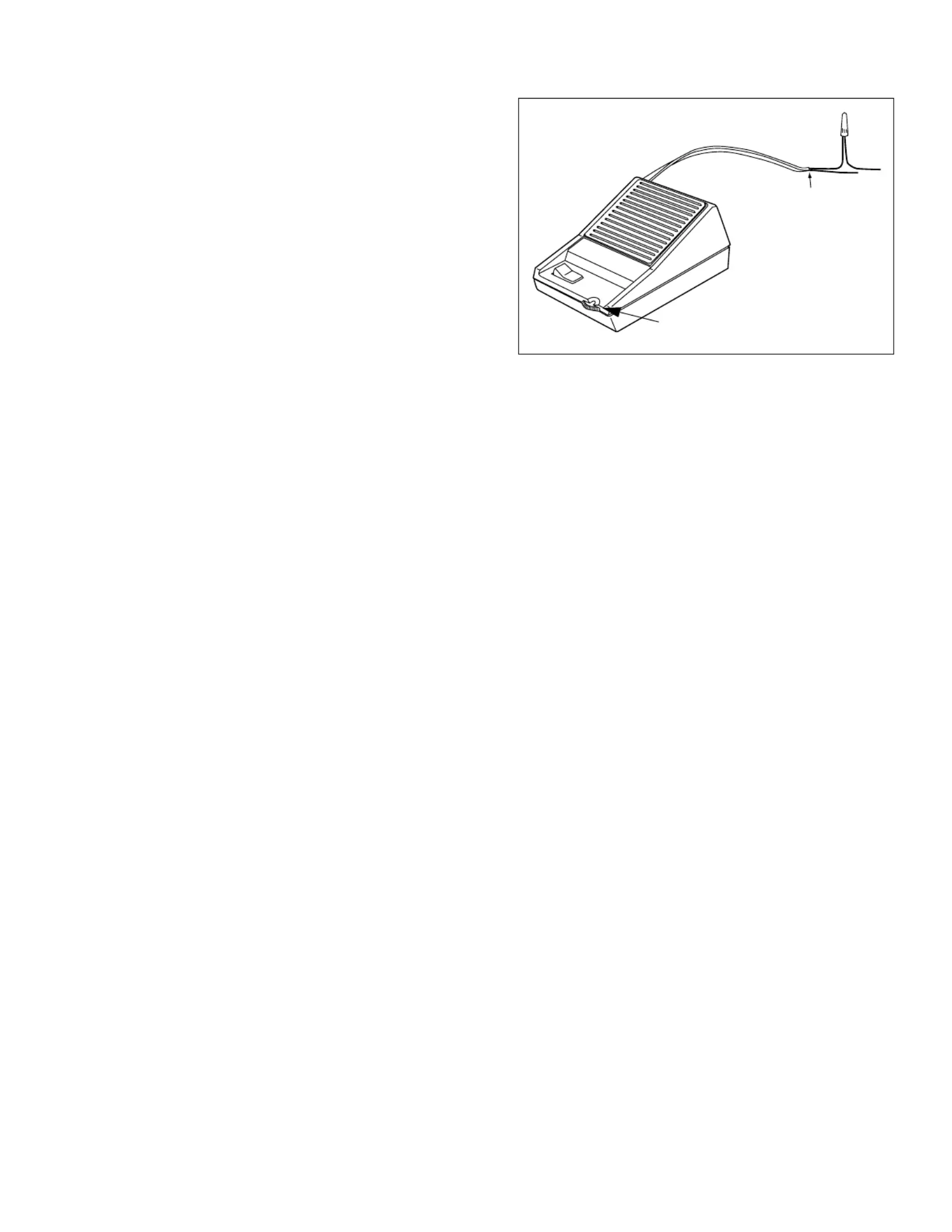

Figure 1
PRIV
TB
VOL
1
DESK TOP
SPEAKER
"B Connector"
Black /White wire designates
common connection
VOLUME CONTROL
