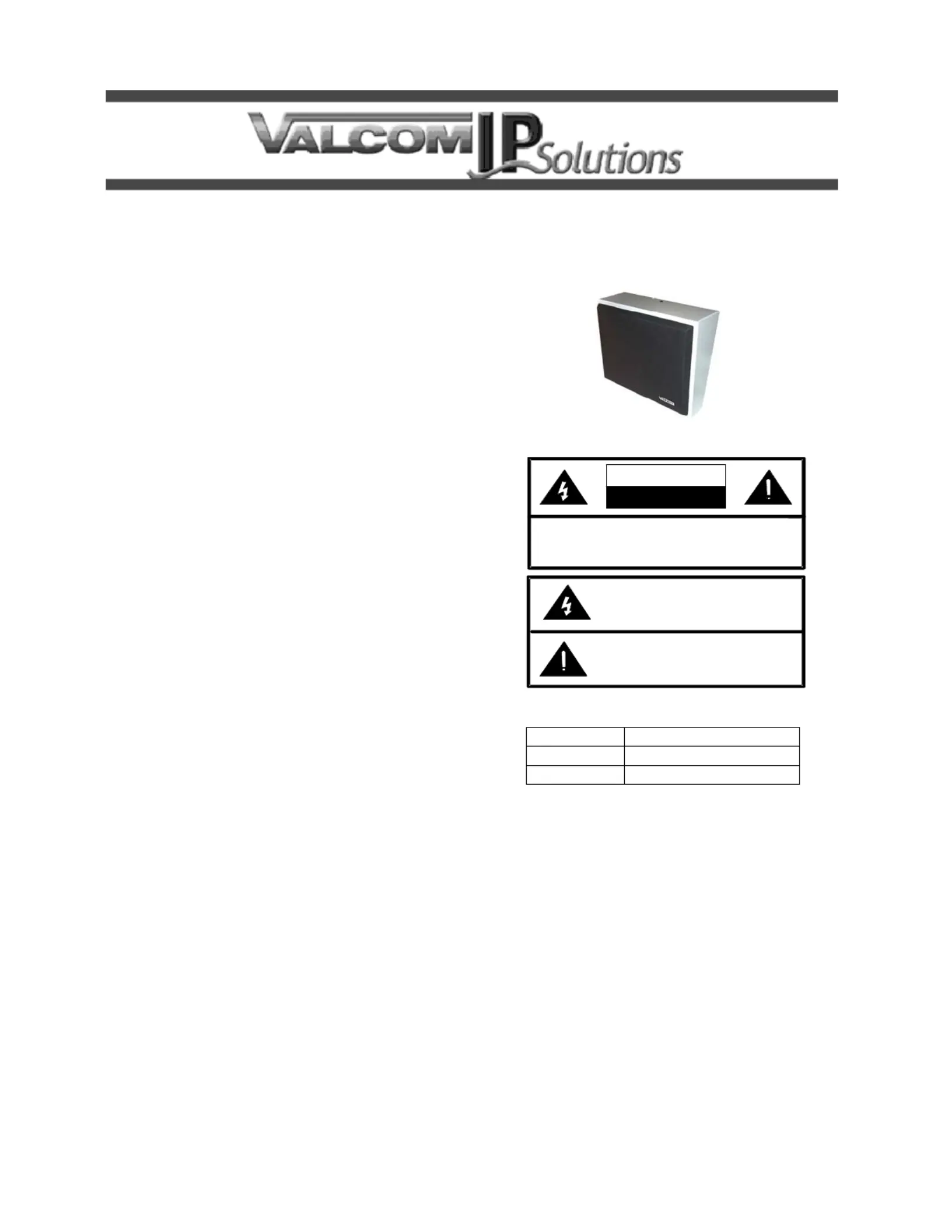

VIP-430

TALKBACK IP WALL SPEAKER

INTRODUCTION

The VIP-430 Talkback IP Wall Speaker enables

handsfree talkback access to a single location over

an IP-based LAN/WAN. This allows a handsfree

talkback extension anywhere on the network. The

speaker levels are electrically adjusted during

setup. The enclosure is made of steel with a

durable gray powder coated finish. The color of the

enclosure can easily be changed to match any

decor. A detachable black clothe grille is included.

A call switch input is provided for the remote

speaker location signaling.

Power is provided to the VIP-430 via a Power over

Ethernet switch meeting the 802.3af specification.

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This

equipment generates, uses and can radiate radio

frequency energy and if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case the

user will be required to correct the interference at

his own expense.

DIMENSIONS/WEIGHT

 10.13” H x 12.31” W x 4.63” D

(25.73cm x 31.27cm W x 11.75cm D)

 Weight: 4.25 LBS (1.91 kg)

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Precautionary Designations

CAUTION: To reduce the risk of electric shock,

Do not rem ove cover.

No user serviceable parts inside.

Refer serv icing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present with in this unit.

This symbol indicates that there are

importa nt operating and maintenance

instructions in the literature acc ompanying

this unit.

Packing List

Qty. Item

1 VIP-430

1 VSP Document

MOUNTING

Remove the screw holding the mounting bracket to

the enclosure. Mount the bracket using appropriate

hardware such as #8 pan head crews. After

making the required connections, reattach the

enclosure to the mounting bracket

Network Connection

The VIP-430 has one RJ-45 network connector on

the rear panel. Use a standard Ethernet patch cable

to connect the VIP-430 to an Ethernet switch.

Call Switch Connection

The VIP-430 provides a call switch input via screw

terminal connections. See Fig.1 for details.

2 947079

Setup

Information specific to your application will need to

be programmed to the VIP-430 using a computer.

The PC used for programming should be connected

to the same subnet as VIP-430. Setup will be done

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. If a spare unit is available, substitute

a spare unit for the suspected defective unit.

Assistance in troubleshooting is available from the

factory. Call (540) 563-2000 and press 1 for

Technical Support or via email at

support@valcom.com

When requesting assistance, you should include all

available information. It is strongly suggested that

you go to the web site and review the information

available at www.valcom.com.

Valcom equipment is not field repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the

unit clearly stating your company name, address,

phone number, contact person and the nature of

the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056

using the IP Solutions Setup Tool. Download the

latest version of the free IP Solutions Setup Tool

from Valcom web site at

www.valcom.com/vipsetuptool.


