1 947645

Issue 4

VIP-848

Networked Input & Relay Module

INTRODUCTION

The VIP-848 Networked Input & Relay Module

allows passing of contact closures, which are

software programmable to be either Form A or

Form B, over an IP-based LAN/WAN. Multiple

VIP-848 Networked Input & Relay Modules can be

used on the same network to create very large

and distributed systems.

SPECIFICATIONS

Features

 8 Relay Contacts That Are Programmable To

Form A or Form B

 8 Contact Closure Inputs

 RJ-45 For Network Connection

 Front Panel Activity LED

 Removable Connector Provided For Input And

Relay Interface

 2.5mm Jack For DC Power

 Power Over Ethernet (PoE) 802.3af

Compliant

 No Server Required

 1 to 11 Digit Dial Plans

 Easy Windows Based Setup

Dimensions/Weight

 1.50” H x 6.19" W x 5.88" D

(3.81cm H x 15.72cm W x 14.94cm D)

 Weight: 1.00 lbs. (0.45 kg)

Nominal Specifications

Input Impedance: 10k Ohms

Relay Current: 1 AMP @ 24VDC

Nominal Power Requirements

Via Back Panel Barrel Connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: +32 to +104°F (0 to +40°C)

Humidity: 0 to 85% Non-Precipitating

Packing List

Qty Item

1 VIP-848

1 VSP Document

2 Mounting Brackets

4 Rubber Pads

2 947645

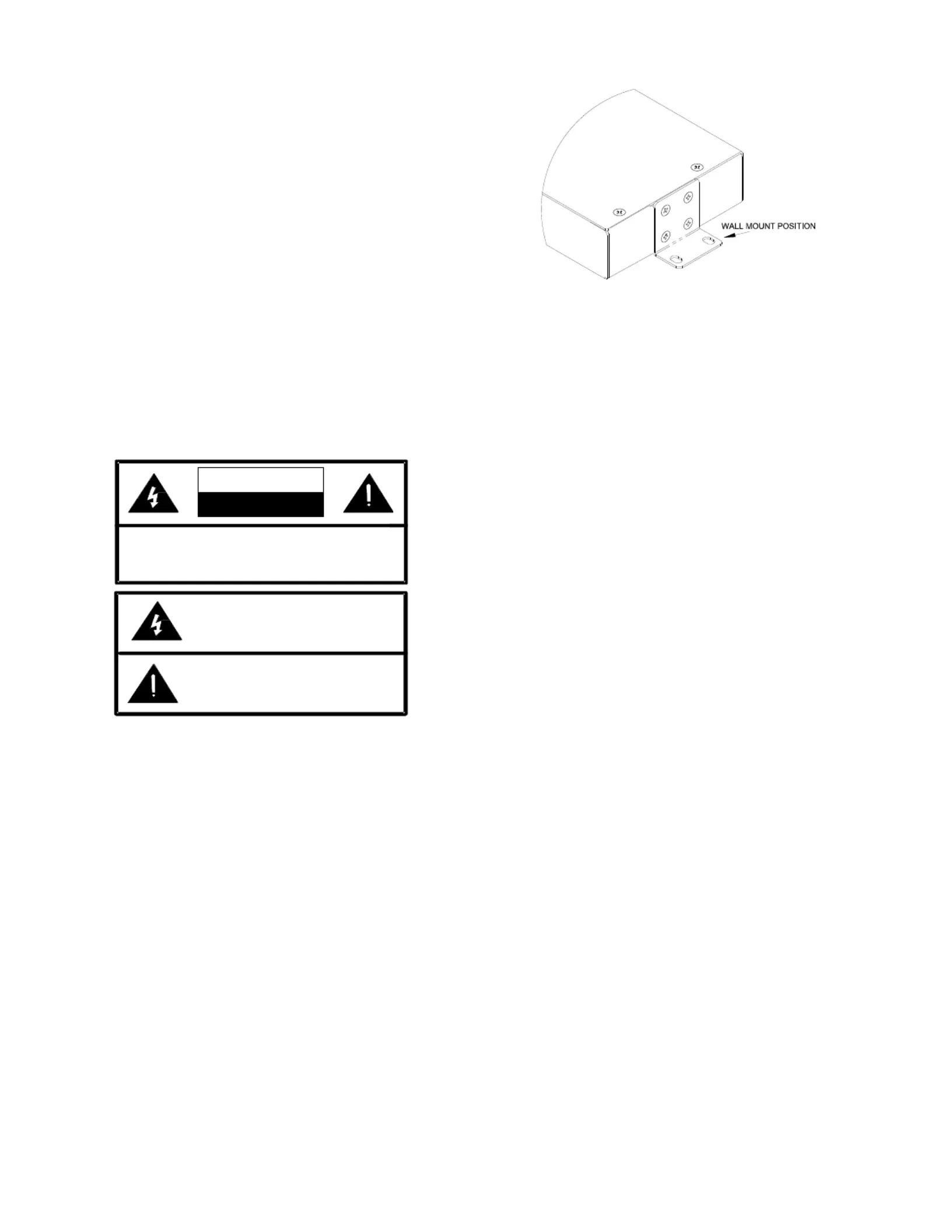

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This sym bol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated

in a commercial environment. This equipment

generates, uses and can radiate radio

frequency energy and if not installed and used

in accordance with the instruction manual,

may cause harmful interference to radio

communications. Operation of this equipment

in a residential area may cause harmful

interference in which case the user will be

required to correct the interference at his own

expense.

Precautionary Designations

Mounting

The VIP-848 is designed for wall or table

mounting.

Table: Provided with the VIP-848 are four rubber

stick on pads. Peel these pads off their carrier

backing and place at the four corners of the

bottom of the unit.

Wall: Using the bracket and hardware provided,

secure the VIP-848 to the wall.

Power Connections

The preferred method of powering a VIP-848 is

via a Power over Ethernet (PoE) switch meeting

the 802.3af specification.

If the rear panel barrel connector is used for

power, the preferred power supply is a Valcom

VIP-324D.

Make all required signal connections before

applying power to the unit. If powering via 802.3af,

make sure all signal connections via the rear

panel are made then connect the VIP-848 to the

Ethernet switch.

If power is provided via the barrel connector,

make sure all signal connections are secure.

Attach the unit to the network via the front panel

RJ-45 Ethernet connector. Apply power by

plugging the power supply in to the VIP-848 via

the barrel connector on the rear of the VIP-848.

Network Connection

The VIP-848 has one RJ-45 network connector on

the front panel.

Use a standard Ethernet patch cable to connect

the VIP-848 to an Ethernet switch. If the Ethernet

switch is 802.3af compliant the VIP-848 will draw

power from it.

Signal Connections

The VIP-848 has 16 signal connectors on the rear

panel:

 8 Contact Closure Inputs

 8 Relay Contacts that are programmable as

Form A or Form B

3 947645

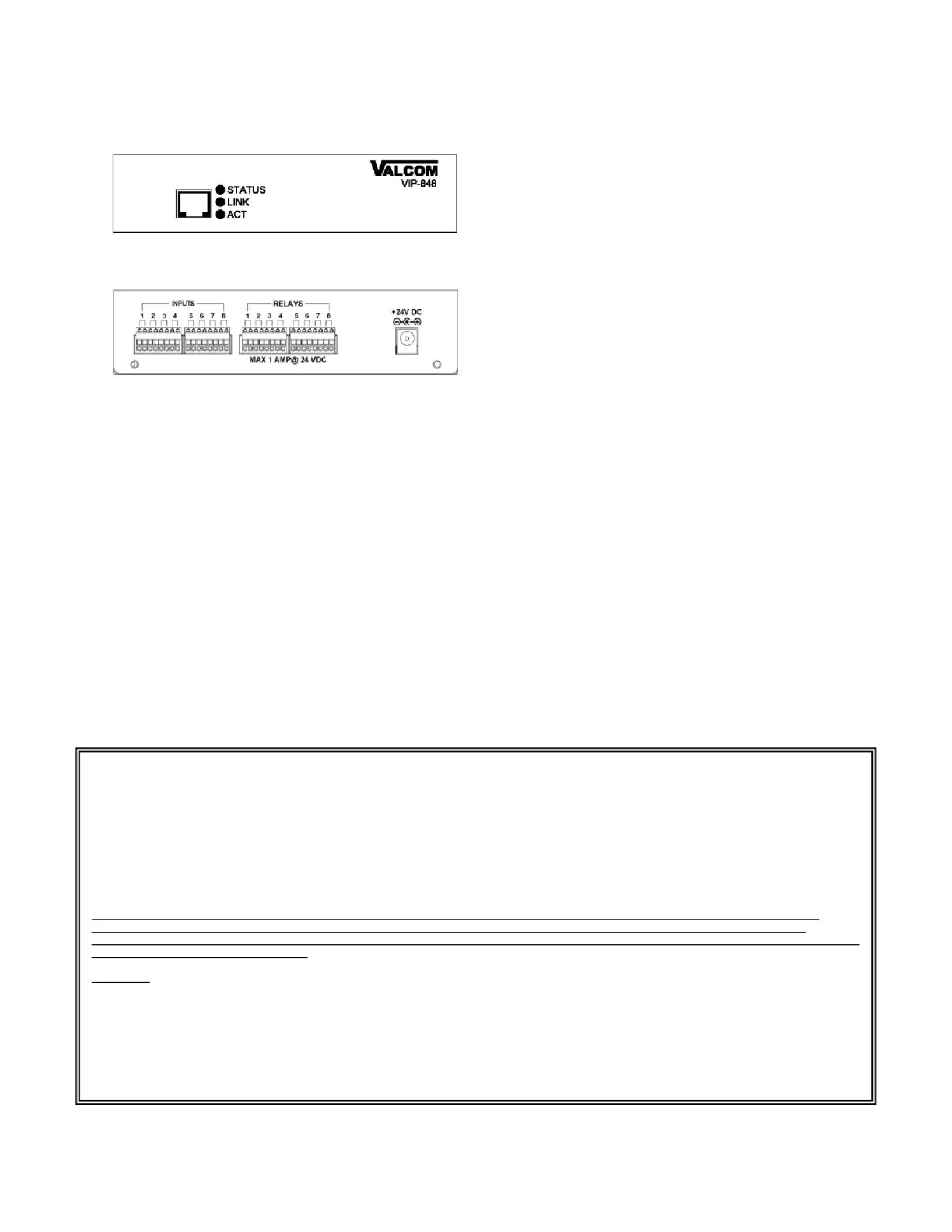

Status Indicator Lights

The VIP-848 has 3 status indication lights on the

front panel:

Front View

Rear View

STATUS: Flashes to indicate power.

LINK: Indicates 100 Mbit Ethernet connection

when illuminated. No activity indicates 10 Mbit

connection.

ACT: Indicator flashes to indicate network activity.

Setup

Information specific to your application will need

to be programmed into the VIP-848 using a

computer. The PC used for programming should

be connected to the same subnet as the VIP-848.

Setup will be done using the IP Solutions Setup

Tool. Download the latest version of the free IP

Solutions Setup Tool from the Valcom web site at

www.valcom.com/vipsetuptool.

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. If a spare unit is available, substitute

a spare unit for the suspected defective unit.

Assistance in troubleshooting is available from the

factory. Call (540) 563-2000 and press 1 for

Technical Support or via email at

support@valcom.com.

When requesting assistance, you should include

all available information. It is strongly suggested

that you go to the web site and review the

information at www.valcom.com.

Valcom equipment is not field repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the

unit clearly stating your company name, address,

phone number, contact person and the nature of

the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of

normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever including, without

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified

immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road Roanoke, VA 24019-5056

Phone: (540) 563-2000 FAX: (540) 362-9800
