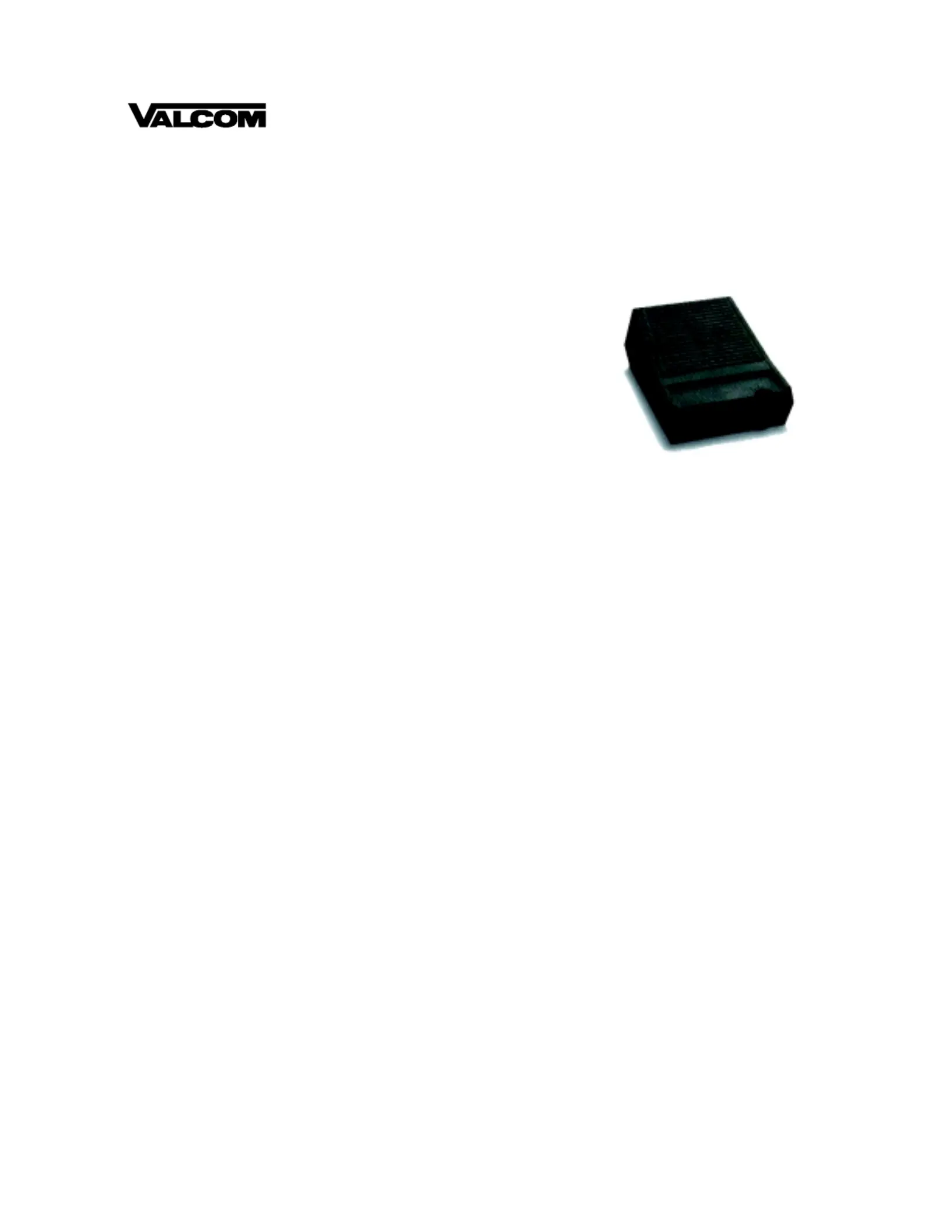

Issue 2
1 947181
70 VOLT DESKTOP SPEAKER
V-5330210
by
PagePac®
INTRODUCTION
The 70 Volt Desktop Speaker is a completely
assembled, 1/8 watt speaker unit for use with 70V
paging systems. Each speaker is equipped with a
7-foot cord and a SE-41A Connecting Block,
which is used to connect the speaker cord to the
paging system speaker wires
(see Figure 1).
SPECIFICATIONS
FEATURES
• Volume Control
• Privacy / Talkback Switch
Dimensions/Weight
• 4.75”W x 1.75”H x 6.88”D
(12.07cm X 4.50cm X 17.48cm)
• 3.0 lbs (1.35 kg)
OPERATION
The Desktop Speaker is recommended for use
with all PagePac® telephone paging systems (or
equivalent systems) in which talkback is provided
(talkback is two-way communication between the
paging telephone and the paging loudspeaker).
However, the Desktop Speaker may be used with-
out talkback.
It is recommended that each Desktop Speaker,
when used with talkback, be a separate paging
zone. If this is not feasible, the total number of
Desktop Speakers in any one zone should be lim-
ited to two or less.
SWITCHES AND CONTROLS
PRIVACY/TALKBACK SWITCH
In the “TB” position, this switch allows two-way
communication between the Desktop Speaker
and the paging telephone (once the paging tele-
phone has accessed the speaker). In the “PRIV”
position, talkback is inhibited and the speaker
operates only as a one-way speaker.
VOLUME CONTROL
The “VOL” control adjusts the speaker volume in
both the page and music modes (see Figure 1). It
does not affect the talkback level.
INSTALLATION
Place the Desktop Speaker in the desired loca-
tion. Locate a convenient spot on the wall adja-
cent to the speaker for the connecting block.
Open the connecting block and attach it to the wall
using suitable mounting hardware, not supplied
(see Figure 1). Connect the 70V and common
wires from the speaker cord to the “R” and “B” ter-
minals on the connecting block. Connect the red
and black wires from the paging system to the “R”
and “B” terminals on the connecting block. Con-
nect the shield wire to the “G” terminal (shielded
speaker cable is recommended).
Close the connecting block.
2 947181
TESTING
Access the Desktop Speaker and ensure that
paging occurs. While a page is in progress, adjust
the speaker volume. While a page is in progress,
place the PRIVACY/TALKBACK switch in the “TB”
position and verify that two-way communication is
possible. Then place this switch in the “PRIV”
position and ensure that talkback is inhibited.
Note: Generally, music volume should be
adjusted at the music source or on the PagePac®
AmpliCenter or system amplifier.
TECHNICAL ASSISTANCE
When calling, have a VOM and a telephone test
set available and call from the job site. Call (540)
563-2000 and ask for P echn cal Su - agePac T i p
po t, rr o visit our websites at http://www.pagepac.com
and www.valcom.com.
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature of
the problem. Send the unit to:
Valcom, Inc.
PagePac® Repair Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
PRIV
TB
VOL
1
DESKTOP
SPEAKER
RED
2 WIRES
BLACK
2 WIRES
GREEN
1 WIRE
SHIELD WIRE
25/70V SPEAKER
LINE FROM
PAGING SYSTEM
MOUNTING CORD
CONNECTING
BLOCK
SE - 4IA
BG
YR

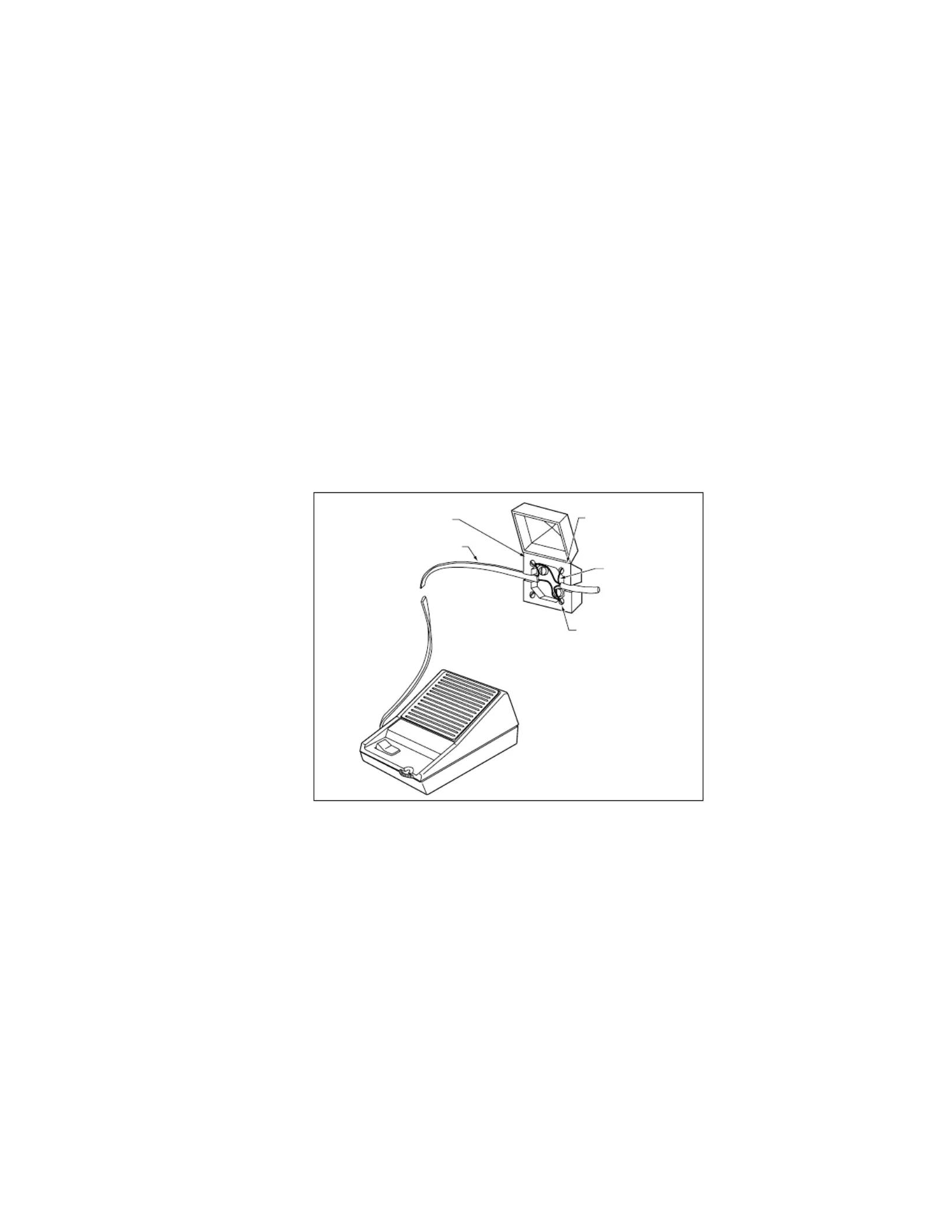

Figure 1
