Qubino

The INNOVATIVE SMALLEST and

Flush 1 relay

ORDERING CODE

Z-WAVE FREQUENCY

ZMNHAA2

868,4 MHz

ZMNHAA3

921,4 MHz

ZMNHAA4

908,4 MHz

ZMNHAA5

869,0 MHz

ZMNHAA6

916,0 MHz

This Z-Wave module is used for switching on or

o the electrical device (e.g. light, fan, etc ...). ff

The module can be controlled either through

Z-wave network or through the wall switch.

The module is designed to be mounted inside

a “ ”ﬂush mounting box , hidden behind a

traditional wall switch.

Module measures power consumption of

electrical device and supports connection of

digital temperature sensor. It is designed to act

as repeater in order to improve range and

stability of Z-wave network.

Supported switches

Module supports switches mono-stable

(push button) and switches. The bi-stable

module is factory set to operate with -stable bi

switches.

Installation

 Before the installation disconnect power

supply.

 Connect the module according to

electrical diagram.

 Locate the antenna far from metal

elements (as far as possible).

 Do not shorten the antenna.

Danger of electrocution!

 Module installation requires a great degree

of skill and may be performed only by a

qualiﬁed and licensed electrician.

 Even when the module is turned oﬀ,

voltage may be present on its terminals.

Any works on conﬁguration changes

related to connection mode or load must be

always performed by disconnected power

supply (disable the fuse).

Note!

Do not connect the module to loads exceeding

recommended values. Connect the module

only in accordance to the below diagrams.

Improper connections may be dangerous.

Package conten ts

 Flush 1 relay

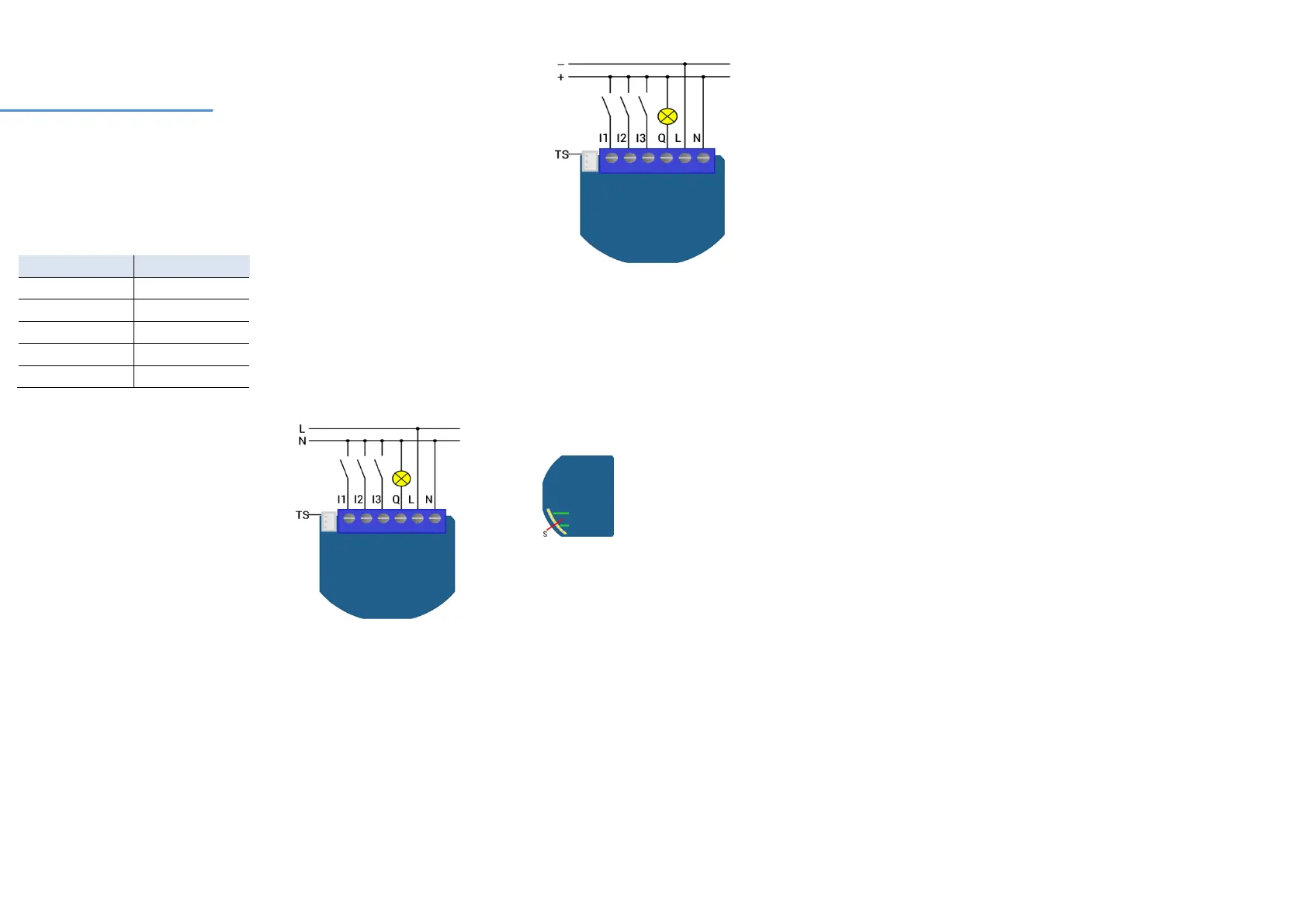

Electrical diagram 230VAC

Notes for the diagram:

Electrical diagram 24VDC

Notes for the diagram:

Durability of the module depends on applied

load. For resistive load (light bulbs, etc.) and

10A current consumption of each individual

electrical device, the durability exceeds

100.000 switches of each individual electrical

device.

Module Inclusion (Adding to Z-wave

network)

 Connect module to power supply (with

temperature sensor connected - if

purchased),

 bring module within maximum 1 meter (3

feet) of the main controller,

 enable add/remove mode on main

controller

 auto-inclusion (30 minutes after

connected to power supply) or

 press service button for more than 2 S

second or

 press push button three times within 3I1 s

(3 times change switch state within 3

seconds).

Module Exclusion/Reset (Removing

from Z-Wave network)

 Connect module to power supply

 bring module within maximum 1 meter (3

feet) of the main controller,

 enable add/remove mode on main

controller

 press service button for more than 6 S

second or

 press push button I1 ﬁve times within 3s (5

times change switch state within 3

seconds) in the ﬁrst 60 seconds after the

module is connected to the power supply.

By this function all parameters of the module

are set to default values and own ID is deleted

If service button S is pressed more than 2 and

less than 6 second module is excluded, but

conﬁguration parameters are not set to default

values.

Association

Association enables Flush 1 relay module to

transfer commands inside Z-Wave network

directly (without main controller) to other

Z-Wave modules.

Associated Groups:

Group 1: basic on/oﬀ (triggered at change of

the output Q state and reﬂecting its state) up to

16 nodes.

Group 2: basic on/oﬀ (triggered at change of

the input I2 state and reﬂecting its state) up to

16 nodes.

Group 3: basic on/oﬀ (triggered at change of

the input I3 state and reﬂecting its state) up to

16 nodes.

Group 4: default reporting group (reserved for

the main controller).

Conﬁguration parameters

Parameter no. Input 1 switch type 1 –

Available conﬁguration parameters (data type

is 1 Byte DEC):

 default value 1

 mono-stable switch type (push button) 0

 -stable switch type 1 bi

Parameter no. 2 Input 2 contact type –

Available conﬁguration parameters (data type

is 1 Byte DEC):

 default value 0

 0 NO (normally open) input type

 1 NC (normally close) input type

Parameter no. 3 Input 3 contact type –

Available conﬁguration parameters (data type

is 1 Byte DEC):

 default value 0

 0 NO (normally open) input type

 1 NC (normally close) input type

Parameter no. 10 - Activate / deactivate

functions ALL ON/ALL OFF

Available conﬁguration parameters (data type

is 1 Byte DEC):

 default value 255

 255 - ALL ON active, ALL OFF active

 - ALL ON is not active ALL OFF is not 0

active

 - ALL ON is not active ALL OFF active 1

 - ALL ON active ALL OFF is not active 2

Flush 1 relay module responds to commands

ALL ON / ALL OFF that may be sent by the

main controller or by other controller belonging

to the system.

Parameter no. 11 - Automatic turning oﬀ

relay after set time

Available conﬁguration parameters (data type

is 2 Byte DEC):

 Default value 0

 - Auto OFF disabled 0

 1 65535 = 0,01second 655,35 – –

seconds Auto OFF enabled with deﬁne

time, step is 10mseconds.

Parameter no. 30 - Saving the state of the

relay after a power failure

Available conﬁguration parameters (data type

is 1 Byte DEC):

 default value 0

 Flush 1relay module saves its state 0 –

before power failure (it returns to the last

position saved before a power failure)

 - Flush 1relay module does not save the 1

state after a power failure, it returns to

"oﬀ" position.

Neutral lead

Live lead

Output for electrical device

Input for switch /push button or sensor

Input for switch /push button

Terminal for digital temperature sensor

(only for Flush 1 relay module

compatible digital temperature sensor,

which must be ordered separately).

+ VDC

- VDC

Output for electrical device

Input for switch /push button or sensor

Input for switch /push button

Terminal for digital temperature sensor

(only for Flush 1 relay module

compatible digital temperature sensor,

which must be ordered separately).

Service button (used to

add or remove module

from the Z-Wave

network).

Parameter no. 40 Power reporting in Watts –

on power change

Set value means percentage, set value from 0

- 100=0% - 100%. Available conﬁguration

parameters (data type is 1 Byte DEC):

 default value 3

 Reporting Disabled 0 –

 100 = 1% - 100% Reporting enabled 1 –

Power report is send (push) only when

actual power in Watts in real time changes

for more than set percentage comparing

to previous actual power in Watts, step is

1%.

NOTE: if power changed is less than 1W, the

report is not send (pushed), independent of

percentage set.

Parameter no. 42 Power reporting in Watts –

by time interval

Set value means time interval (0 65535) in –

seconds, when power report is send.

Available conﬁguration parameters (data type

is 2 Byte DEC):

 default value 300 (power report in Watts is

send each 300s)

 Reporting Disabled 0 –

 65535 = 1second 65535 seconds. 1 – –

Reporting enabled. Power report is send

with time interval set by entered value.

Technical Speciﬁcations

Power supply

110 - 230 VAC ±10%

50/60Hz, 24-30VDC

Rated load current of AC

output (resistive load)*

1 X 10A / 230VAC

Rated load current of DC

output (resistive load)

1 X 10A / 30VDC

Output circuit power of

AC output (resistive

load)

2300W (230VAC)

Output circuit power of

DC output (resistive

load)

240W (24VDC)

Power measurement

accuracy

P=5-50W, -3W +/

P>50W, - +/ 3%

Digital temperature

sensor range (sensor

must be ordered

separately)

-50 +1 ~ 25°C

Operation temperature

-10 ~ + 40°C

Distance

up to 30 m indoors

(depending on

building materials)

Dimensions (WxHxD)

(package)

41,8x36,8x15,4mm

(79x52x22mm)

Weight (Brutto with

package)

28g (34g)

Electricity consumption

0,4W

For installation in boxes

Ø ≥ 60mm or 2M

Switching

Relay

* In case of load other than resistive, pay

attention to the value of cos φ and if necessary

apply load lower than the rated load. Max

current for cos φ=0,4 is 3A at 250VAC, 3A at

24VDC L/R=7ms.

Z-Wave Device Class:

BASIC_TYPE_ROUTING_SLAVE

GENERIC_TYPE_SWITCH_BINARY

SPECIFIC_TYPE_POWER_SWITCH_BINARY

Z-Wave Supported Command Classes:

COMMAND_CLASS_BASIC

COMMAND_CLASS_SWITCH_BINARY

COMMAND_CLASS_SWITCH_ALL

COMMAND_CLASS_METER_V3

COMMAND_CLASS_SENSOR_MULTILEVEL_V3

COMMAND_CLASS_MULTI_CHANNEL_V2

COMMAND_CLASS_POWERLEVEL

COMMAND_CLASS_ASSOCIATION

COMMAND_CLASS_CONFIGURATION

COMMAND_CLASS_MANUFACTURER_SPECIFIC

COMMAND_CLASS_VERSION

COMMAND_CLASS_MARK

COMMAND_CLASS_BASIC

Endpoint 1 (I2):

Device Class:

GENERIC_TYPE_SENSOR_BINARY

SPECIFIC_TYPE_NOT_USED

Command Classes:

COMMAND_CLASS_SENSOR_BINARY

COMMAND_CLASS_BASIC

Endpoint 2 (I3):

Device Class:

GENERIC_TYPE_SENSOR_BINARY

SPECIFIC_TYPE_NOT_USED

Command Classes:

COMMAND_CLASS_SENSOR_BINARY

COMMAND_CLASS_BASIC

This product can be included and operated in

any Z-Wave network with other Z-Wave

certiﬁed devices from any other manufacturers.

All constantly powered nodes in the same

network will act as repeaters regardless of the

vendor in order to increase reliability of the

network.

Important disclaimer

Z-Wave wireless communication is inherently

not always 100% reliable, and as such, this

product should not be used in situations in

which life and/or valuables are solely

dependent on its function.

Warning!

Do not dispose of electrical appliances as

unsorted municipal waste, use separate

collection facilities.

Contact your local government for information

regarding the collection systems available. If

electrical appliances are disposed of in landﬁlls

or dumps, hazardous substances can leak into

the groundwater and get into the food chain,

damaging your health and well-being. When

replacing old appliances with new once, the

retailer is legally obligated to take back your

old appliance for disposal at least for free of

charge.

This user manual is subject to change and

improvement without notice.

Qubino

Goap d.o.o. Nova Gorica

Ulica Klementa Juga 007

5250 Solkan

Slovenia

E-mail: info@qubino.com

Tel: +386 5 335 95 00

Web: www.qubino.com

Date: .2.2015 19

Document Qubino_Flush 1 :

relay user manual_V6.4_eng

Produktspezifikationen

Marke:	Qubino
Kategorie:	Nicht kategorisiert
Modell:	ZMNHAA2

Brauchst du Hilfe?

Wenn Sie Hilfe mit Qubino ZMNHAA2 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Nicht kategorisiert Qubino

Qubino ZMNHSD1 Bedienungsanleitung

27 August 2024

Qubino Flush 1 Relay Bedienungsanleitung

27 August 2024

Qubino ZMNHAA2 Bedienungsanleitung

27 August 2024

Qubino Flush 2 Relays Bedienungsanleitung

27 August 2024

Qubino Flush 1D Relay Bedienungsanleitung

27 August 2024

Qubino Flush RGBW Dimmer Bedienungsanleitung

22 Juni 2024

Qubino ZMNHBA2 power relay Bedienungsanleitung

10 Februar 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024

AEG MECK52 Bedienungsanleitung

16 Oktober 2024

Makita UR012G Bedienungsanleitung

16 Oktober 2024

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024

IFM AC901S Bedienungsanleitung

16 Oktober 2024

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
