If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Form Product
INSTALLATION INSTRUCTIONS
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
1/1
7160-1433
SCANNER POCKET WITH AMPS PLATE
Rev A INST-937
AMP's plate (7160-1433) to a Zirkona joiner with an AMP's mounting plate (7160-
PS-001
© Copyright 2019 Gamber-Johnson, LLC
Printing Spec:
This instruction sheet is for mounting the Gamber-Johnson scanner pocket with
1261).
Mouinting the device
1. Attach the scanner pocket to the Zirkona Joiner with the #10-32 machine screws
and lock washers provided in hardware bag 7120-0934.
2. The scanner pocket can hold a scanner with a head thickness of 2.50" high x 4.50"
wide. The pocket width is pre-set at 3.50" wide but can be adjusted to accomodate
scanners up to 4.50" wide by loosenign the (3) 1/4" cap nuts, adjusting to the desired
width and re-tightening the cap nuts.
3. Adjust the Zirkona Joiner to hold the scanner pocket in the desired location.

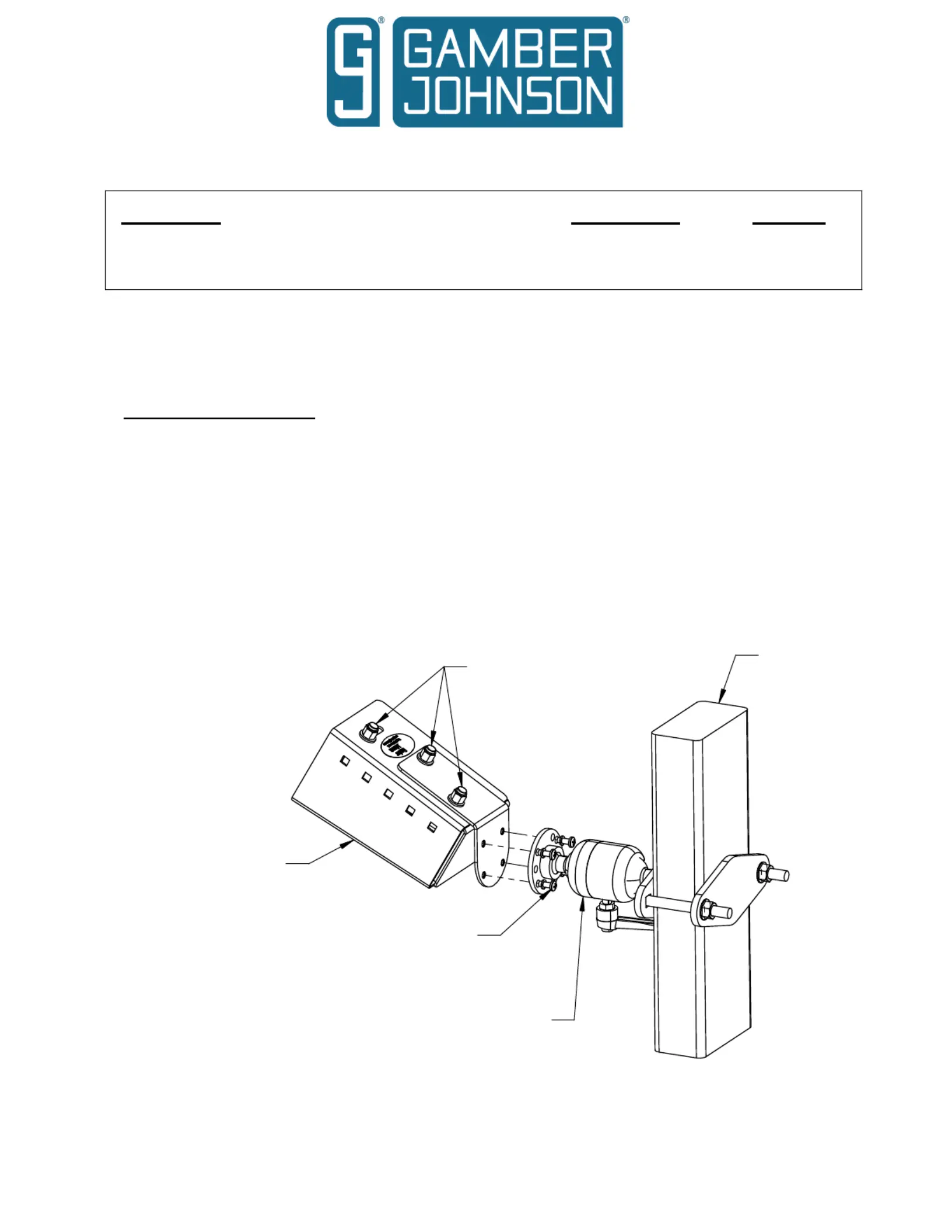

1760-1261
overhead guard
leg
1/4" cap nuts
for adjusting width
#10-32 machine
screws and
lock washers
scanner pocket
with amp's plate
