Vesa 75mm
mounting plate
7160-1385-03
quick release mount allows
90 deg. rotation at the base
roll pin
7160-1385, -01, -02, -03
7160-1385-02
INST-919
PS-001
© Copyright 2019 Gamber-Johnson, LLC
Rev A
Printing Spec:
1/1

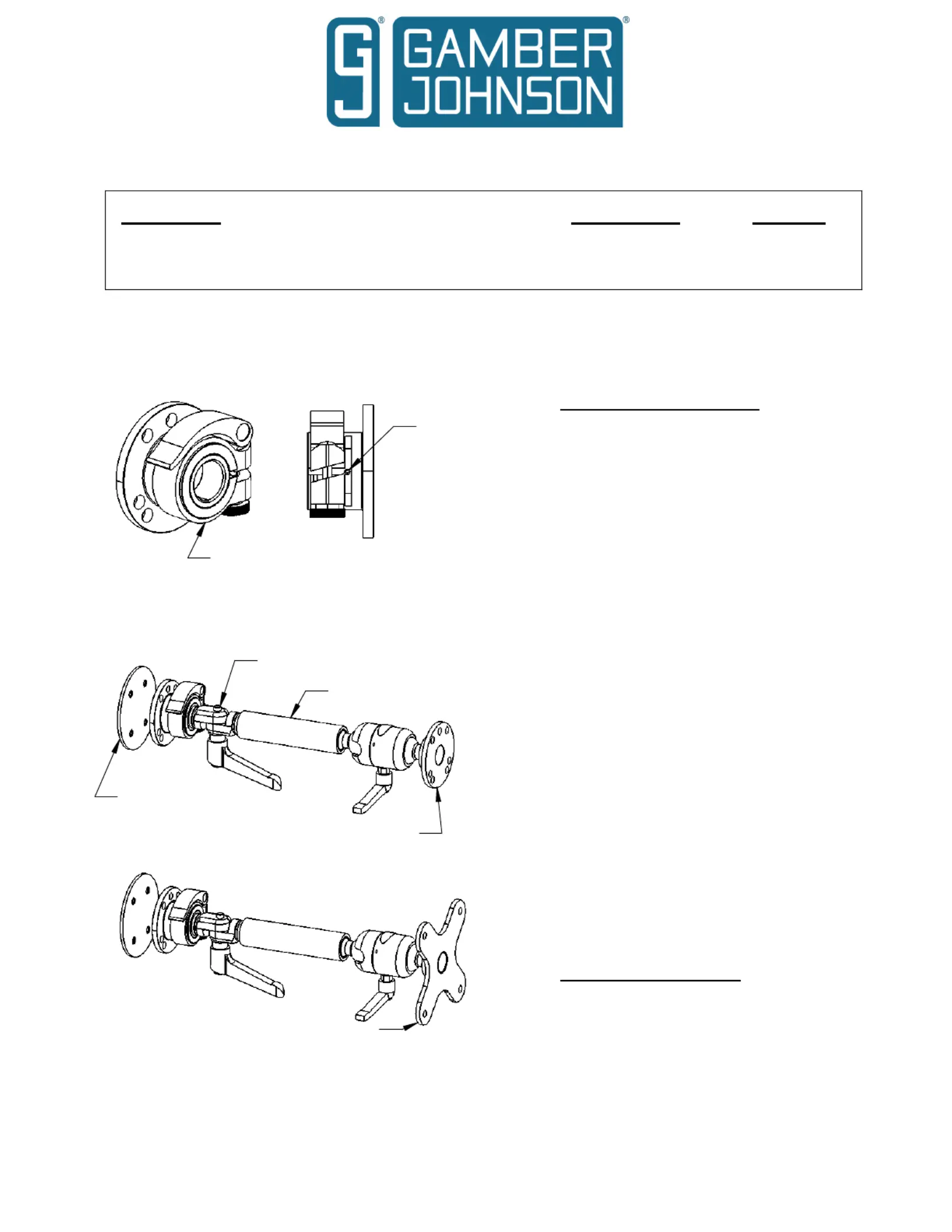

This instruction sheet is for mouting the Zirkona multi-function pivot arm with either
a round mounting plate for Vesa 75mm mounting plate. The assemblies are
shipped pre-assembled and the components are held in place with epoxy so
they can not come apart.
Attaching the mounts:
1. Determine the location of the mount
in the vehicle. The quick release base
can be removed to make mounting
easier. The quick release allows the user
to rotate the arm at the base 90
degrees. Note the roll pin location in the
slot when mounting to make sure you
have the range of motion desired.
2. The quick release base is attached by
drilling (4) 7/32" holes in the flat surface
where the mounts will attach. Use the
quick release base or the back plate to
mark the 4 locations before drilling. The
hole pattern is 30mm x 38mm.
3. Place the back plate (with the
pressed-in nuts) behind the previously
drilled mounting surface.
4. Use the #10-32 x 1" long screws and
washers found in hardware bag 7120-
0861 to attach the mount to the flat
mounting surface by running the screws
through the quick release mount, the
previously drilled flat surface, and into
the back plate with the pressed-in nuts.
Attaching the dock:
1. Attach the device cradle to the
mounting plate using the hardware
supplied with the cradle.
ZIRKONA, MULTI-FUNCTION PIVOT ARM
Form
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
RevisionProduct
INSTALLATION INSTRUCTIONS
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
plate
100mm tube
180 deg. pivot
round mounting
back plate
