Seite 1/3
cab mount top plate
overhead guard bars
Revision
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Form Product
INSTALLATION INSTRUCTIONS
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
clevis
cab mount bottom plate
1" carriage bolts
3-1/2" carriage bolts
7160-1425
© Copyright 2019 Gamber-Johnson, LLC
PS-001
CAB OVERHEAD GUARD MOUNT
Rev B
Printing Spec:
INST-936
located.
Attaching the mount when there is
a minimum 1/2" clearance between
the cab roof and the overhead
guard bars:

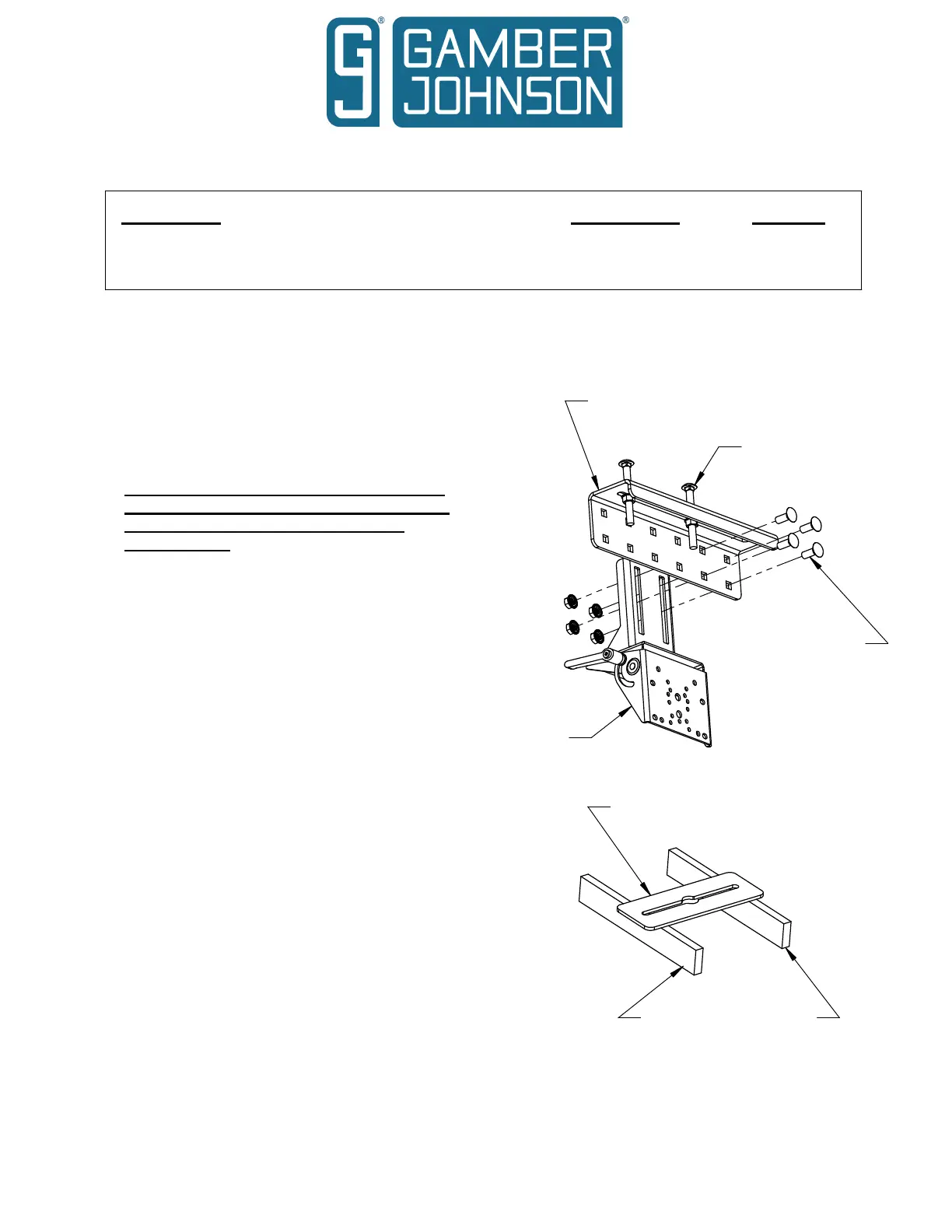

1. Attach the clevis portion of the
mount to the cab mount bottom plate
with the (4) 3/8 x 1" carriage bolts
and serrated flange nuts found in
hardware bag 7120-0932. There are
multiple mounting locations, so pick
the one that best fits your application.
2. Loosely attach the (2) 3/8 x 3-1/2"
carriage bolts and serrated flange
nuts into the long slot of the bottom
plate as shown.
3. Place the cab mount top plate on
top of the overhead bars (between
the bars and the roof glass) in the
approx. location the mount will be
1/1
This instruction sheet is for the Gamber-Johnson Cab Overhead Guard Mount
(7160-1425). It is designed to mount a computer cradle or docking station near the
roof of an enclosed cab forklift. There are 2 ways to mount it based on how close
the roof is to the overhead guard bars.
Attaching the mount:
4. Insert the heads of the 3/8" x
3-1/2" carriage blots through the
keyhole opening in the top plate
and slide the carriage bolts
outward so they are next to the
overhead guard vertical bars.
Fine tune the position of the
mount in the vehicle and tighten
the nuts on the 3/8 x 3-1/2"
carriage bolts to hold the mount
in place.
keyhole opening
Attaching the mount when there is
only 1/4" to 1/2" clearance
between the cab roof and the
overhead guard bars:
1. Attach the clevis portion of the
mount to the cab mount bottom plate
with the (4) 3/8 x 1" carriage bolts
and serrated flange nuts found in
hardware bag 7120-0932. There are
multiple mounting locations, so pick
the one that best fits your application.
2. Loosely connect the short and
long hooks together with the 3/8 x 1
long carriage bolt and serrated lock
nut.
3. Insert the (2) 3/8 x 3-1/2" long
carriage bolts found in hardware bag
7120-0932 through the slots as
shown. Place the hooks on top of
the overhead bars and adjust the
width as shown. Tighten the 1" long
carriage bolt to hold the hooks in
place.
Note: if the bars are too close
together. The 1" carriage bolt can
be eliminated. One of the 3-1/2"
carriage bolts will need to run
through both hooks and be held in
place with the lock nut.
4. Attach the cab mount bottom plate
to the 3-1/2" long carriage bolts with
the serrated lock nuts found in
hardware bag 7120-0932. Fine tune
the position of the mount in the
vehicle and tighten the nuts in place.
overhead
guard barguard bar
short hook
& lock nut
carriage bolt
tall hook
overhead
3/8" x 1" long
3-1/2" long
carriage bolts
bottom plate
3/8" lock nuts
cab mount
clevis
1" carriage bolts
