INSTALLATION INSTRUCTIONS FOR PART OESWC-6522H
The OESWC-6522H is to be used with either the OESWC-STK
or OESWC-RF. Please refer to instructions provided with
OESWC-STK or OESWC-RF for mounting instructions.

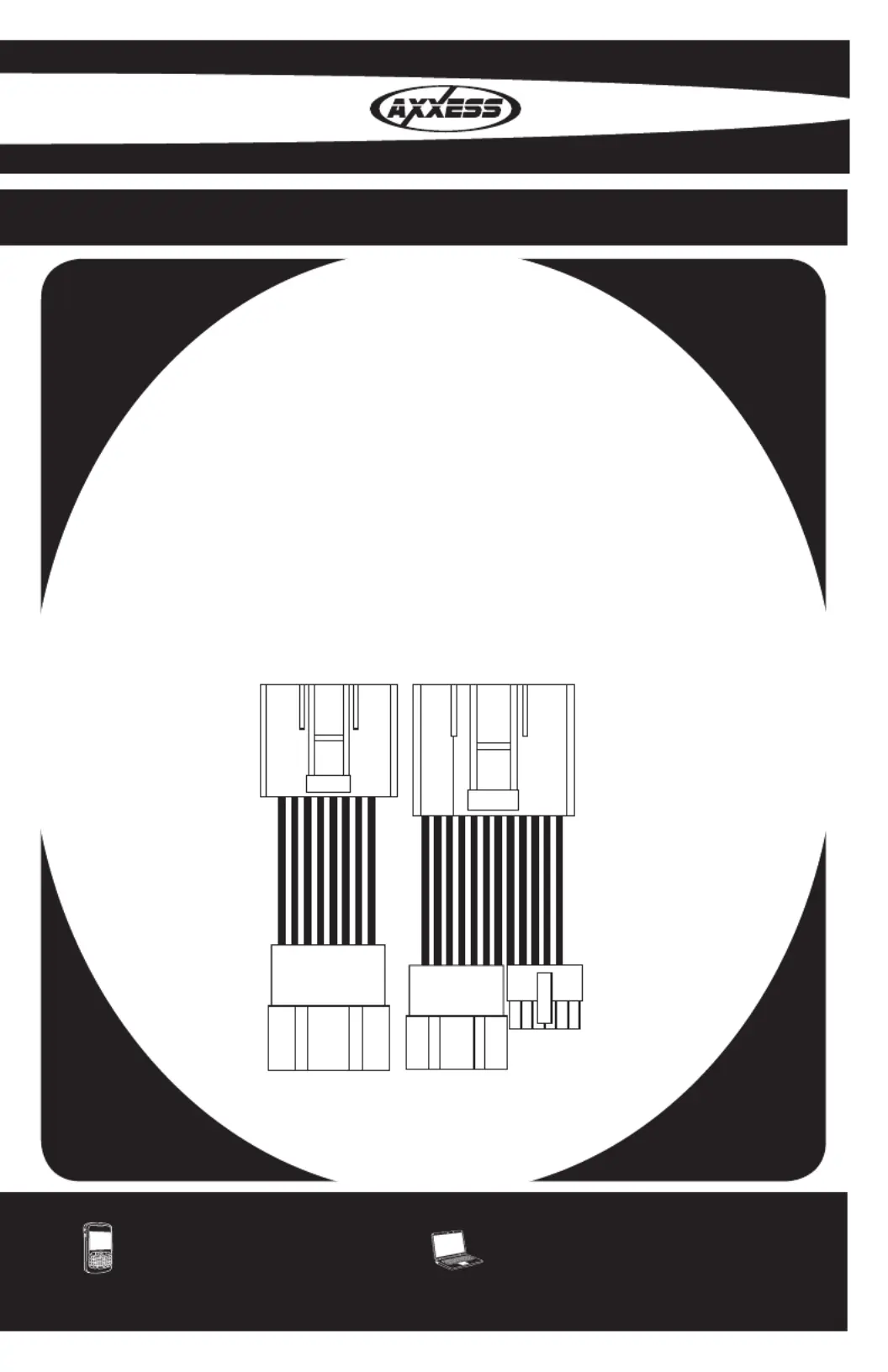

OESWC-6522H
07-UP CHRYSLER HARNESS FOR OE RF/STK
RF
Wiring the OESWC interface
1. Connect the red wire to 12 volt accessory
2. Connect the Black wire to ground (you may use the same ground that you
use for the aftermarket radio)
Setting up the OESWC transmitter
1. Press the Red and Green buttons simultaneously for 5 seconds, and then
press volume up for two seconds. This will orientate your button direction.
2. Turn on the ignition and press volume up on the OESWC transmitter. This
will “marry“ the transmitter to the interface.
NOTE: If you are replacing a transmitter you must turn on the ignition and within
the îšżrst 10 seconds press and hold the source button for ten seconds. This will
“marry the new transmitter.
Programming the OESWC TRANSMITTER
1. Complete connections to the factory radio
* If this is the îšżrst time the OESWC TRANSMITTER is being installed in a vehicle:
2. Turn the ignition on; the led will start ashing rapidly which means the
OESWC interface is looking for the vehicle. Go to step 4.
Or
* If the OESWC TRANSMITTER was installed in a vehicle before:
2. Turn the ignition on, the led will ash once.
3. Hold down the reset button for more then 2 seconds but less then 10
seconds, the led will start ashing rapidly
4. After a couple of seconds the led should stop ashing and not light up for 2
seconds.
1
5. This is the end of the auto detection stage. If the OESWC TRANSMITTER
detected the vehicles radio successfully the led will light up solid red.
6. Make sure the steering wheel control buttons function correctly in the vehicle
and enjoy your radio.
So what if the led does not light up solid red?
Check out troubleshooting section below.
Troubleshooting the Auto Detect Mode
So you tried the auto detect feature and at the end the led did not stay on solid
red, it started ashing. That means the OESWC TRANSMITTER did not detect
the vehicles radio. Follow these couple steps to determine what happened:
First some basic steps:
1. Verify that you have 12 volt accessory and a good ground to the OESWC
interface.
2. Verify that the battery is good on the OESWC transmitter.
3. Refer to the “Setting up the OESWC transmitter” section of this manual and
repeat those steps.
