I N S TA L L AT I O N I N S T R U C T I O N S
99-7382HG
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/20/24 INST99-7382HG
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes SWC, antenna adapter, and wiring harness
• Retains the factory backup camera
• Includes a climate display to retain the information that was
displayed on the factory radio
• Includes a built-in hazard switch
• Painted high gloss black

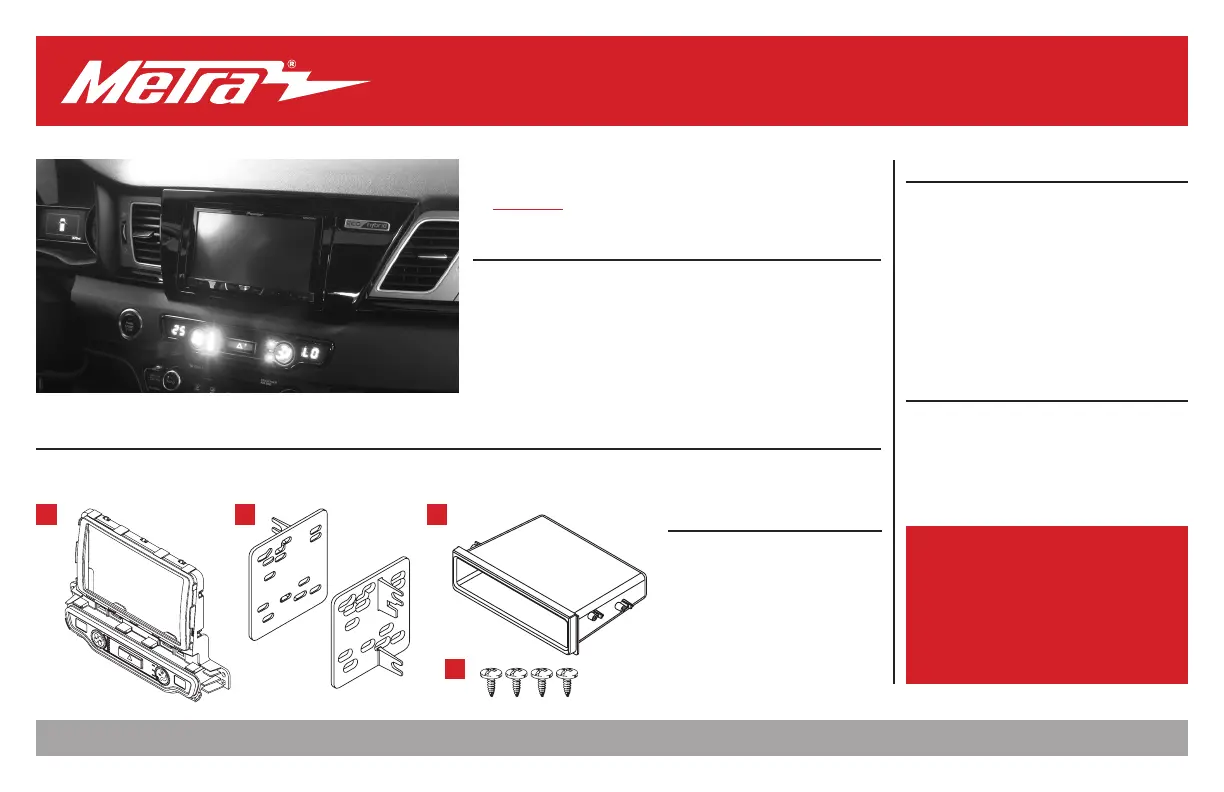

KIT COMPONENTS
• A) Radio trim panel with climate display and hazard switch • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
• Wiring harness, Antenna adapter Not Shown:
TOOLS REQUIRED
• Panel removal tool
• Phillips screwdriver
• 5/16” Socket wrench
• Wire cutter • Crimp tool
• Solder gun • Tape
• Connectors (example:
butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Assembly
–ISO DIN radio provision with pocket 3 ..................
–ISO DDIN radio provision 3 ....................................
Wiring Instructions 4-12 ...........................................
Final Assembly 7 .......................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with kit
12V-to-6V Camera Step-Down: Included with kit
A B
D
C
Kia Niro (without NAV) 2017-2019
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386-257-2956
|
MetraOnline.com
2

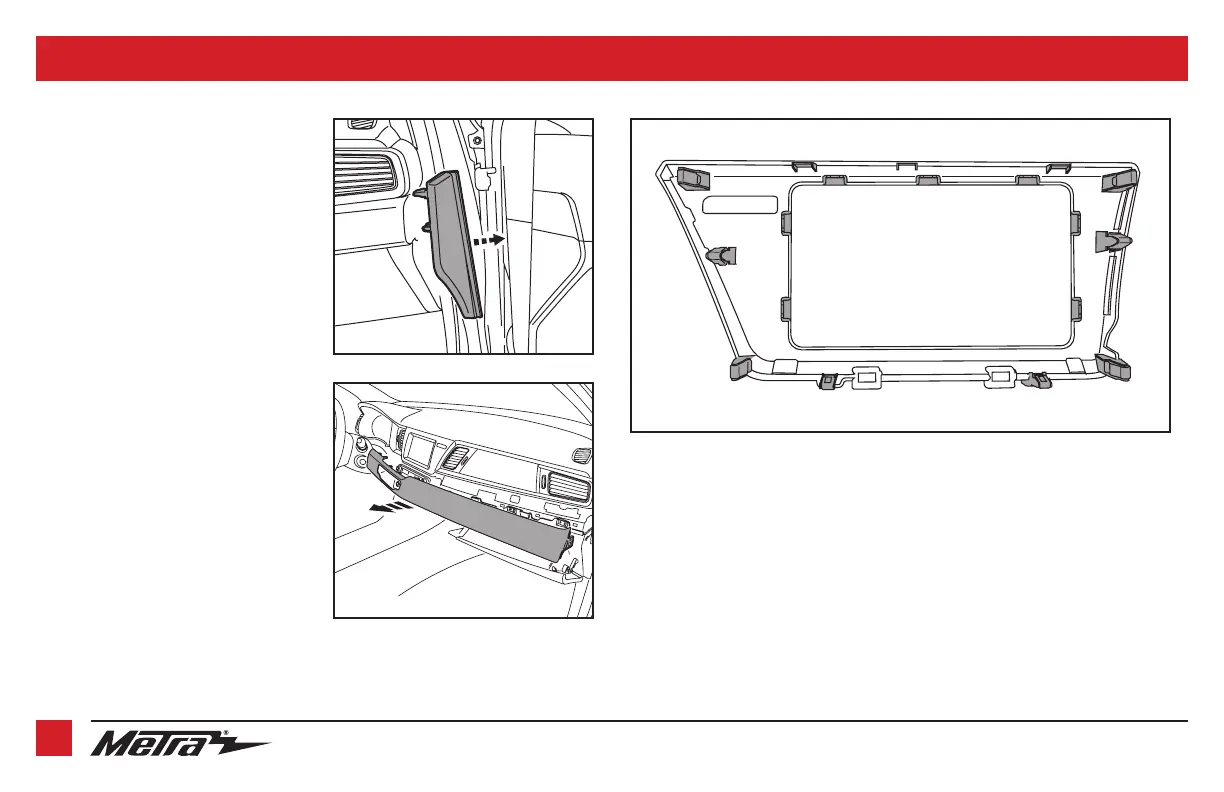

1. Open the passenger door then unclip
and remove the panel on the side of the
dashboard. Remove (1) Phillips screw
exposed. (Figure A)
2. Unclip and remove the entire panel
surrounding the climate control.
(Figure B)
3. Carefully unclip and remove the panel
surrounding the radio. (Figure C)
Note:
This panel is held on by (18) clips.
Extreme care and patience must be
taken not to break the panel.
4. Remove (6) Phillips screws securing
the radio, then unplug and remove
the radio.
Note:
The lower harness will reconnect
into the kit during kit assembly.
Continue to Kit Assembly
DASH DISASSEMBLY
(Figure B)
(Figure A)
(Figure C)
REV. 3/20/24 INST99-7382HG 3
KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Attach the
pocket to the
radio brackets
using the (4) #8 x 3/8” Phillips screws
provided. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly and then secure it using the
screws supplied with the radio.
(Figure B)
Continue to Wiring Instructions
ISO DDIN radio provision
1. radio brackets Attach the to the radio
using the screws supplied with the radio.
(Figure A)
Continue to Wiring Instructions
(Figure B)
(Figure A)
(Figure A)
