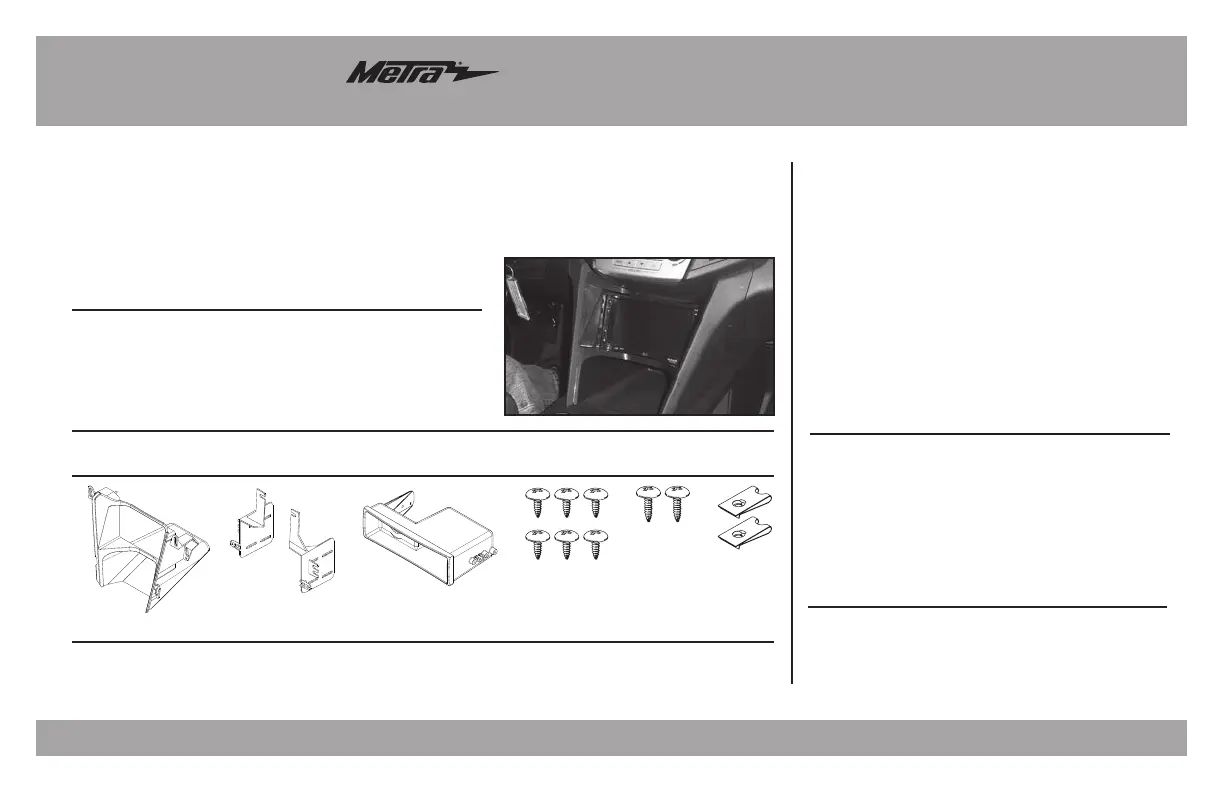

INSTALLATION INSTRUCTIONS FOR PART 99-3307G
METRA. The World’s best kits.®metraonline.com © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
Painted gray to match factory finish
A) Radio trim panel • B) Radio brackets • C) Pocket • D) (6) #8 x 3/8” Phillips screws
• E) (2) #10 x ¾ Phillips screws • F) (2) #10 panel clips • G) Axxess interface and wiring harness (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:Axxess interface and harness included
Antenna Adapter: • 40-EU55
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TOOLS REQUIRED
(with monochrome display)
A
Table of Contents
BCE FD
Dash Disassembly ................................................. 2
Kit Preparation ....................................................... 3
Kit Assembly
ISO DIN radio provision with pocket 4 ......................
ISO DDIN radio provision 4 ......................................
Axxess Interface Installation .............................5-7
99-3307G
Dash Disassembly
1. With pocket above factory radio
controls - Remove (2) 9/32
screws from inside the pocket,
then unclip and remove the pocket.
2. Without pocket, just unsnap and
remove the panel. (Figure A)
3. Unsnap, unplug, and remove
the radio/ climate control panel.
(Figure B)
4. Unclip and remove the (2) side
panels from the left and right
side of the pocket/CD slot panel.
(Figure C)
5. Remove (4) 9/32” screws to remove
the pocket/CD slot panel. Remove
the power outlet and attach it to the
included pocket if installing single
DIN. If you are mounting a DDIN the
power outlet will not be retained with
this kit. Remove the rubber bottom
from the factory pocket and save it
for final assembly. (Figure D)
6. Remove (2) 9/32” screws from
each a/c vent then unclip and
remove the vents. Remove the
screws inside and under the vent
cavities and two from below the
vent locations. (this will allow flex
in the dash to fit the aftermarket in
later). (Figure E)
7. Remove (4) 9/32” screws securing
the radio chassis and remove.
(Figure F)
Continue to Kit Preparation
(Figure A) (Figure D)
(Figure C) (Figure F)
(Figure B) (Figure E)
99-3307G
(Figure A) (Figure B)
Kit Preparation
1. A small section of the sub-dash
must be cut with a cutting tool to
allow the radio to fit:
a. Remove the lip from the
section of dash just above
the original CD slot location
by cutting along the dotted line.
(Upper shading in figure A)
b. It is also recommended that
a portion of the sub dash
in front side of the console be
removed. (Lower shading in
figure A)
2. Attach the (2) #10 panel clips
included with the kit onto the front
legs of the radio brackets.
(Figure B)
Continue to Kit Assembly
