MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/6/23 INSTAX-LOC
AX-LOC
I N S TA L L A T I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Things to Know 1 .......................................................
Connections
Adding a Subwoofer and Amplifier to Your
Factory system-Keeping Factory Speakers 2 ....
Adding a 4 Channel Amplifier-Entire System
Not Using Radio’s Output 3 .................................
Specifications 4 .........................................................
LOC T-Harnesses have vehicle specific applications.
Please visit for the latest and up to date application information.
AxxessInterfaces.com
TOOLS RECOMMENDED
• Digital Multi-meter
• Test Tones
Things to Know
• LOC T-harnesses are installed at the radio and designed for non-amplified vehicles. You can find dash
disassembly instructions from the on Vehicle Fit Guide AxxessInterfaces.com
• It is recommended that a polarity tester and tone generator be used before connecting your
aftermarket equipment.
• If your vehicle doesn’t have an accessory circuit your will not have an accessory ( ) LOC T-Harness Red
wire in the harness. Refer to the instructions for remote turn on options. Some vehicles AX-LOC
require the addition of load resistors, there are multiple options available. We recommend AX-LR20,
AX-LR39, and AX-LR60.
• Proper termination of loose wires is required.
2

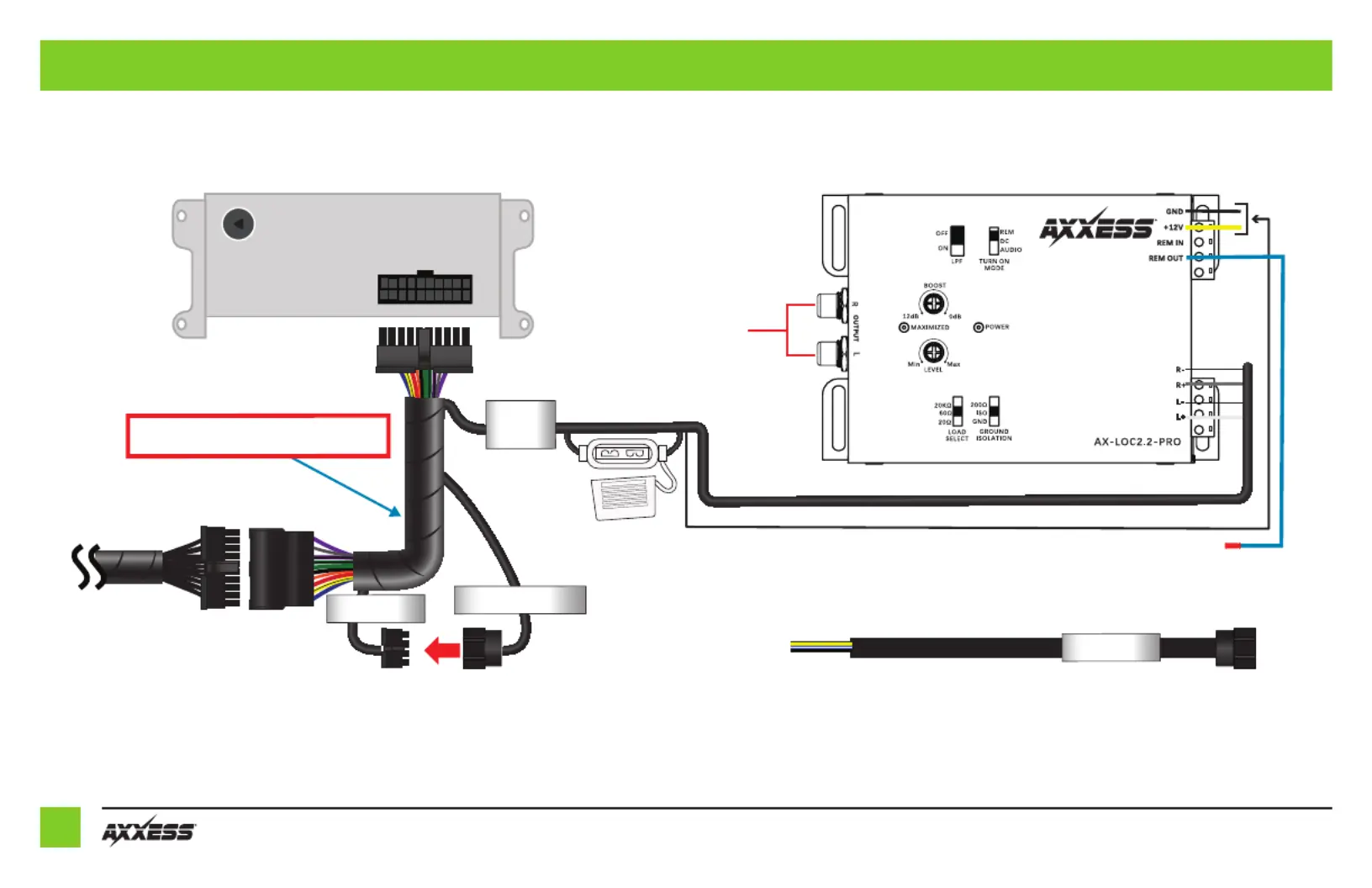

ADDING A SUBWOOFER AND AMPLIFIER TO YOUR FACTORY SYSTEM-KEEPING FACTORY SPEAKERS
AX-RM1
Remote Turn On
Connect
to LOC
To Amp
Input
Not Used
To OE Speakers
Connect if Adding Sub
To OE Speakers
Connect
T-Harness Installation Location
Factory Radio Chassis
Located Behind Dash
Factory Radio Chassis
This LOC T-harness Is Designed To Work In Non-amplified Vehicles
AX-LOC2.2-PRO
To AMP Turn On
Remote
Turn On
3
REV. 9/6/23 INSTAX-LOC

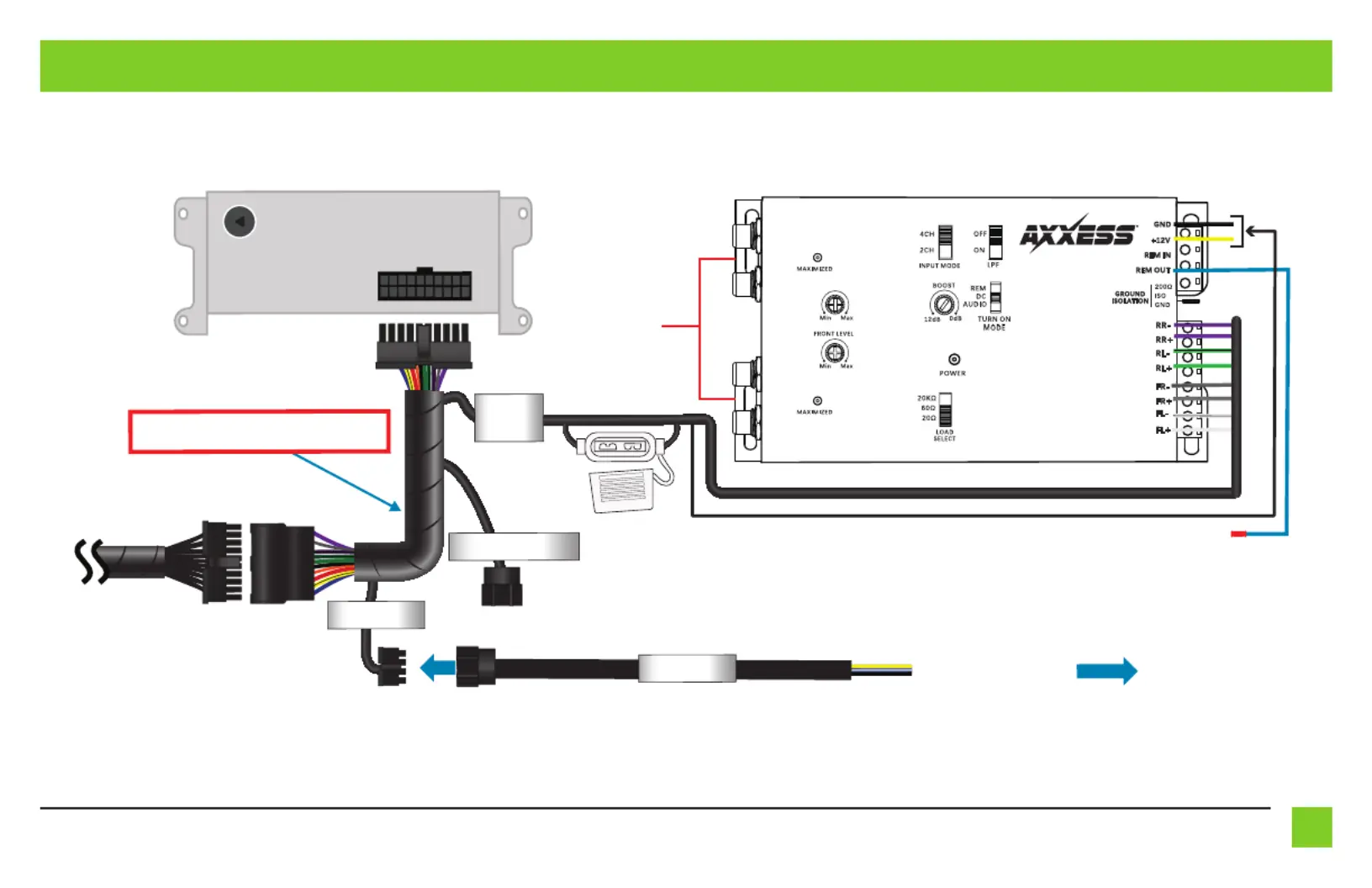

ADDING A 4 CHANNEL AMPLIFIER/ENTIRE SYSTEM-NOT USING RADIO’S OUTPUT
REAR
R
OUTPUT L FRONT
R
OUTPUT
L
REAR LEVEL
AX-LOC4.4-PRO
AX-RM1
This LOC T-harness Is Designed To Work In Non-amplified Vehicles
Not
Used
To OE Speakers
Connect if Adding Sub
To OE Speakers
Connect
T-Harness Installation Location
Factory Radio Chassis
Located Behind Dash
Factory Radio Chassis
AX-LOC4.4-PRO
Run to Aftermarket Amplifier(s).
Connect to the Aftermarket Amplifier Speaker Outputs.
Connect
to LOC
To AMP Turn On
Remote
Turn On
To Amp
Input
