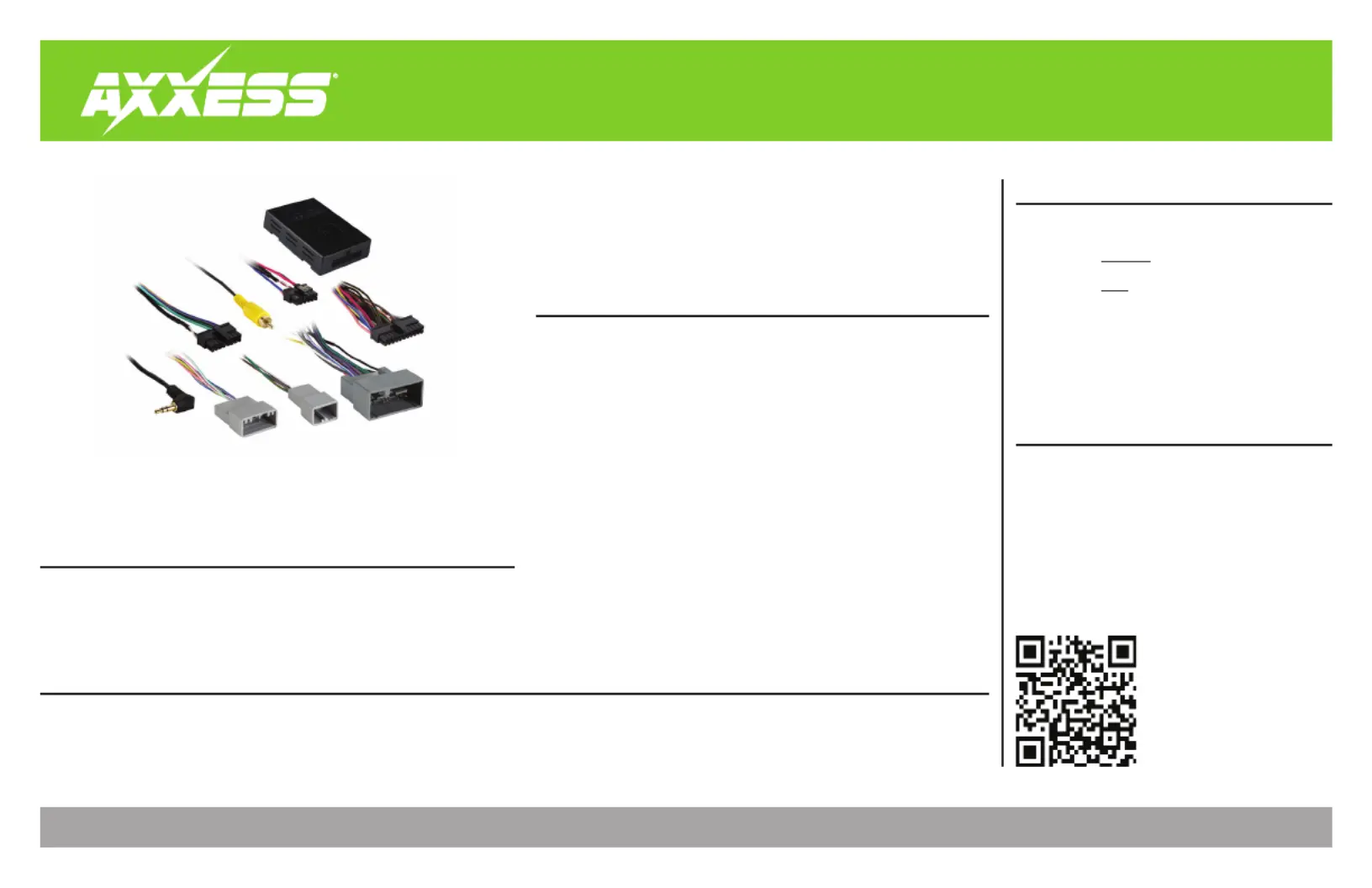

HDCC-02
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 9/16/19 INSTHDCC-02
Product Info
INTERFACE FEATURES
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections
- For models
without
a factory amp ....................2
- For models
with
a factory amp ..........................3
Installation .............................................................4
Programming .........................................................4
Extra settings .........................................................5
Honda LaneWatch Camera Retention
2014-2015
APPLICATIONS
• Provides accessory power (10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired ASWC-1 harness (ASWC-1 sold separately)
• Retains the factory backup camera
• Retains the LaneWatch camera
• Retains ability to change factory clock and date*
• Retains the factory AUX-IN jack
• Can be used in non-amplified, or amplified models
• Retains balance and fade
• Micro-B USB updatable
• HDCC-02 interface
• HDCC-02 harness
Honda
Civic 2014-2015
CR-V 2015
* Excluding LX and NAV models
2
CONNECTIONS
For models
without
a factory amp:
From the HDCC-02 harness to the aftermarket radio
Main harness:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
For the following (8) connections, cut off the RCA jacks to expose the speaker wire inside.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
16-pin harness:
• Connect the Orange/White wire to the illumination wire.
The following (3) wires are for aftermarket multimedia/navigation radios that require these wires:
• Connect the wire to the parking brake wire (if applicable).Light Green
• Connect the wire to the speed sense wire (if applicable).Blue/Pink
• Connect the wire to the reverse wire (if applicable).Green/Purple
• Connect the Yellow RCA jack to the backup camera input.
This RCA jack is used to retain the backup camera as well as the LaneWatch camera.Note:
• Connect the and RCA jacks to the audio AUX-IN jacks (if applicable).White Red
8-pin harness:
• Disregard the RCA jack, it will not be used in this application. White
12-pin pre-wired ASWC-1 harness & 3.5mm jack:
• This harness and 3.5mm jack is to be used along with the optional (sold separately) to ASWC-1
retain steering wheel audio controls. If the is not being used, disregard this harness. If ASWC-1
it will be used, refer to the vehicle specific instruction from Axxess Interfaces for radio ASWC-1
connections and programming. Disregard the harness that comes with the .ASWC-1
• The Gray/Blue wire will only be used in vehicles equipped with Bluetooth. Connect this wire
to the Yellow wire in pin-15 from the 32-pin harness in the factory Bluetooth module.
Bluetooth module location:
Civic - Behind glovebox
CR-V - In dash, under radio
Continue to Installation
3
REV. 9/16/2019 INSTHDCC-02
CONNECTIONS
For models
with
a factory amp:
From the HDCC-02 harness to the aftermarket radio
Main harness:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
• Connect the wire to the amp turn-on wire.Blue/White
• Connect the RCA jack to the front left RCA output.White
• Connect the RCA jack to the front right RCA output.Gray
• Connect the RCA jack to the rear left RCA output.Green
• Connect the RCA jack to the rear right RCA output.Purple
16-pin harness:
• Connect the Orange/White wire to the illumination wire.
The following (3) wires are for aftermarket multimedia/navigation radios that require these wires:
• Connect the wire to the parking brake wire (if applicable).Light Green
• Connect the wire to the speed sense wire (if applicable).Blue/Pink
• Connect the wire to the reverse wire (if applicable).Green/Purple
• Connect the Yellow RCA jack to the backup camera input.
This RCA jack is used to retain the backup camera as well as the LaneWatch camera.Note:
• Connect the and RCA jacks to the audio AUX-IN jacks (if applicable).White Red
8-pin harness:
• Connect the RCA jack to the subwoofer output jack.White
12-pin pre-wired ASWC-1 harness & 3.5mm jack:
• This harness and 3.5mm jack is to be used along with the optional (sold separately) to ASWC-1
retain steering wheel audio controls. If the is not being used, disregard this harness. If ASWC-1
it will be used, refer to the vehicle specific instruction from Axxess Interfaces for radio ASWC-1
connections and programming. Disregard the harness that comes with the .ASWC-1
• The Gray/Blue wire will only be used in vehicles equipped with Bluetooth. Connect this wire
to the Yellow wire in pin-15 from the 32-pin harness in the factory Bluetooth module.
Bluetooth module location:
Civic - Behind glovebox
CR-V - In dash, under radio
Continue to Installation
