AXVI-6524

I N S TA L L AT I O N I N S T R U C T I O N S

INTERFACE FEATURES

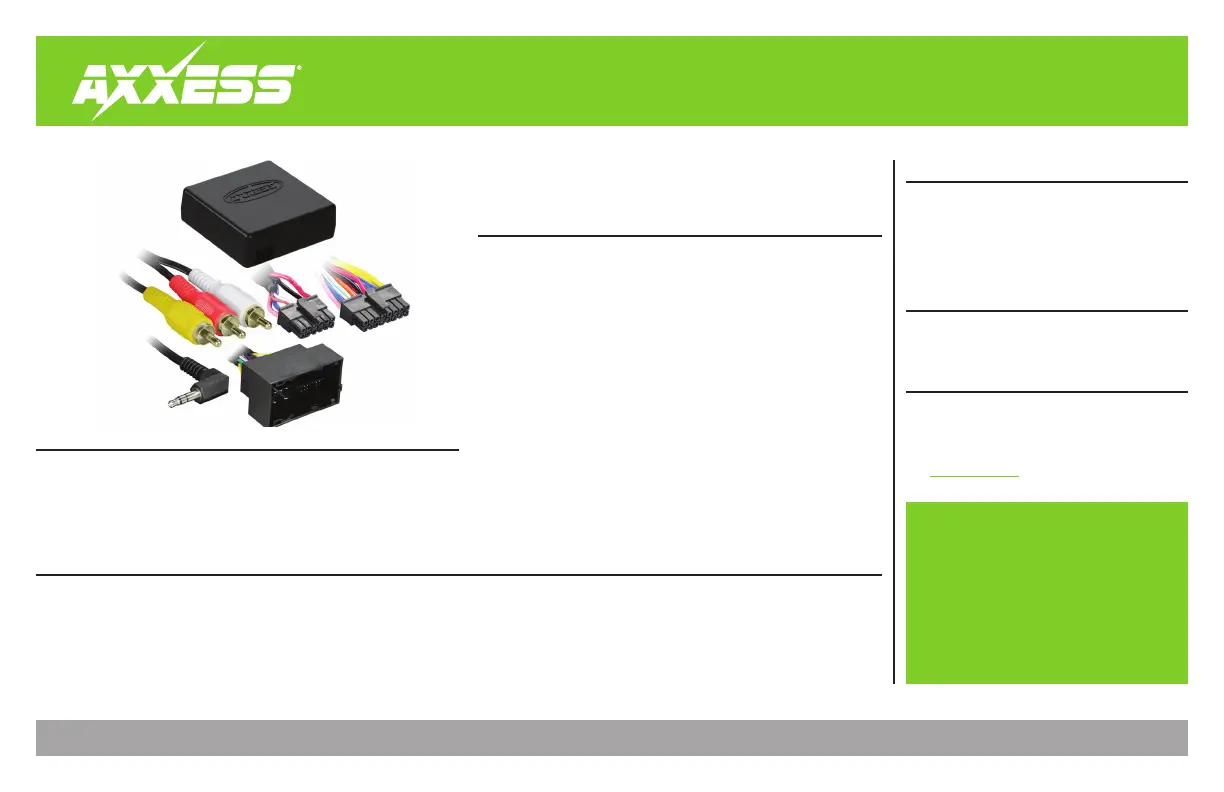

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections .........................................................2-3

Installation .............................................................3

Programming .........................................................3

App Instructions .................................................4-5

Jeep/Ram Select Models Data Interface 2014-Up

• Provides accessory power

(12-volt 10-amp)

• Retains R.A.P. (retained

accessory power)

• Provides NAV outputs (parking

brake, reverse, speed sense)

• Pre-wired AXSWC harness

(AXSWC sold separately)

• Retains the factory backup

camera (Not retained on

Wrangler JL or Gladiator)

• Retains balance and fade

•

Designed for non-ampliﬁed

models

• Retains the factory AUX-IN jack

• Allows retention and adjustment

of the Personalization Options*

• Adjust Personalization Options

through a Bluetooth application*

•

Smartphone application offering

full control from either Android or

Apple mobile devices

• Micro-B USB updatable

• AXVI-6524 interface

• AXVI-6524 harness

• 2-pin CAN harness

OPTIONAL ACCESSORIES

(sold separately)

Steering wheel control interface:

AXSWC OBD T-harness: AX-IL-OBD2

APPLICATIONS

* Actual options available vary per vehicle and per trim.

(Refer to owner’s manual for options available in vehicle)

Jeep

Gladiator* 2020-Up

Renegade 2015-2017

Renegade Sport 2018

Wrangler* JL (Base model) 2018-Up

Ram

Promaster (w/color screen) 2014-Up

Promaster City 2015-Up

* Camera will not be retainedNote:

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the

ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

Visit AxxessInterfaces.com for more detailed information about the

product and up-to-date vehicle speciﬁc applications

CONNECTIONS

From the AXVI-6524 harness harness to the aftermarket radio, connect as indicated:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• Connect the (3) wires to the accessory wire.Red

If installing an (sold separately), there will be an accessory wire there to Note: AXSWC

connect as well.

• If the aftermarket radio has an illumination wire, connect the wire to it.Orange

• Connect the Gray wire to the right front positive speaker wire.

• Connect the Gray/Black wire to the right front negative speaker wire.

• Connect the wire to the left front positive speaker wire.White

• Connect the wire to the left front negative speaker wire.White/Black

• Connect the wire to the left rear positive speaker wire.Green

• Connect the wire to the left rear negative speaker wire.Green/Black

• Connect the wire to the right rear positive speaker wire.Purple

• Connect the to the right rear negative speaker wire.Purple/Black

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the wire to the VSS/speed sense wire.Blue/Pink

• Connect the wire to the reverse wire.Green/Purple

• Connect the wire to the parking brake wire.Light Green

• Tape off and disregard the following (2) wires, they will not be used in this application:

Blue/White (qty. 2)

•

If retaining the factory backup camera, connect the Yellow RCA jack to the backup camera input

Note: For Wrangler JL and Gladiator the camera is not retained. You must purchase the

JP-JLKT for the JL and the JP-JTKT for the Gladiator to retain the camera

• If retaining the factory AUX-IN jack, connect the & RCA jacks to the AUX input.Red White

Continued on the next page

REV. 2/24/23 INSTAXVI-6524

CAN connections to the vehicle:

• Disconnect the 2-pin connector AXVI-6524 harness from the .

• Connect the

2-pin CAN harness to the AXVI-6524 harness.

• Route the harness to the vehicles OBD port located under the driver’s side dash.

Option 1 (excluding Wrangler)

• Connect the wire to the CAN-HI wire. (Figure A)White/Red

• Connect the White/Green wire to the CAN-LO wire. (Figure A)

Option 2

• Use part number AX-IL-OBD2 to “T” into the OBD port.

AX-IL-OBD2 Wiring (sold separately)

• Locate the wires that have the #1 on them

• Color match the wires to the 2pin CAN harness

• Connect them back into the 2pin that was disconnected from the AXVI-6524

12-pin pre-wired AXSWC harness:

This harness is to be used along with the (sold separately) to retain steering wheel audio AXSWC

controls. If the is not being used, disregard this harness. If it is to be used, please refer to the AXSWC

AXSWC instructions for radio connections and programming. Disregard the harness that comes with

the .AXSWC

With the key in the off position:

1. Connect the AXVI-6524 harness to the AXVI-6524 interface, and then to the wiring

harness in the vehicle.

2. If an AXSWC (sold separately) will be used, do not connect it until the AXVI-6524 is

programmed and fully functional.

CONNECTIONS (CONT.) INSTALLATION

(Figure A) Attention!

If the interface ever loses power, the following steps will need to be performed

again. Please ensure that the owner of the vehicle knows this.

1. Turn the key (or push-to-start button) to the ignition position and wait until the radio

comes on.

Note: If the radio doesn’t not come on within 60 seconds, turn the key to the off

position, disconnect the interface, check all connections, reconnect the interface, and

then try again.

2. Turn the key (or push-to-start button) to the off position, then open and close the

driver’s door.

3. Wait 5 minutes for the vehicle to fully go to sleep.

4. Start the vehicle, then test all functions of the installation for proper operation.

PROGRAMMING
