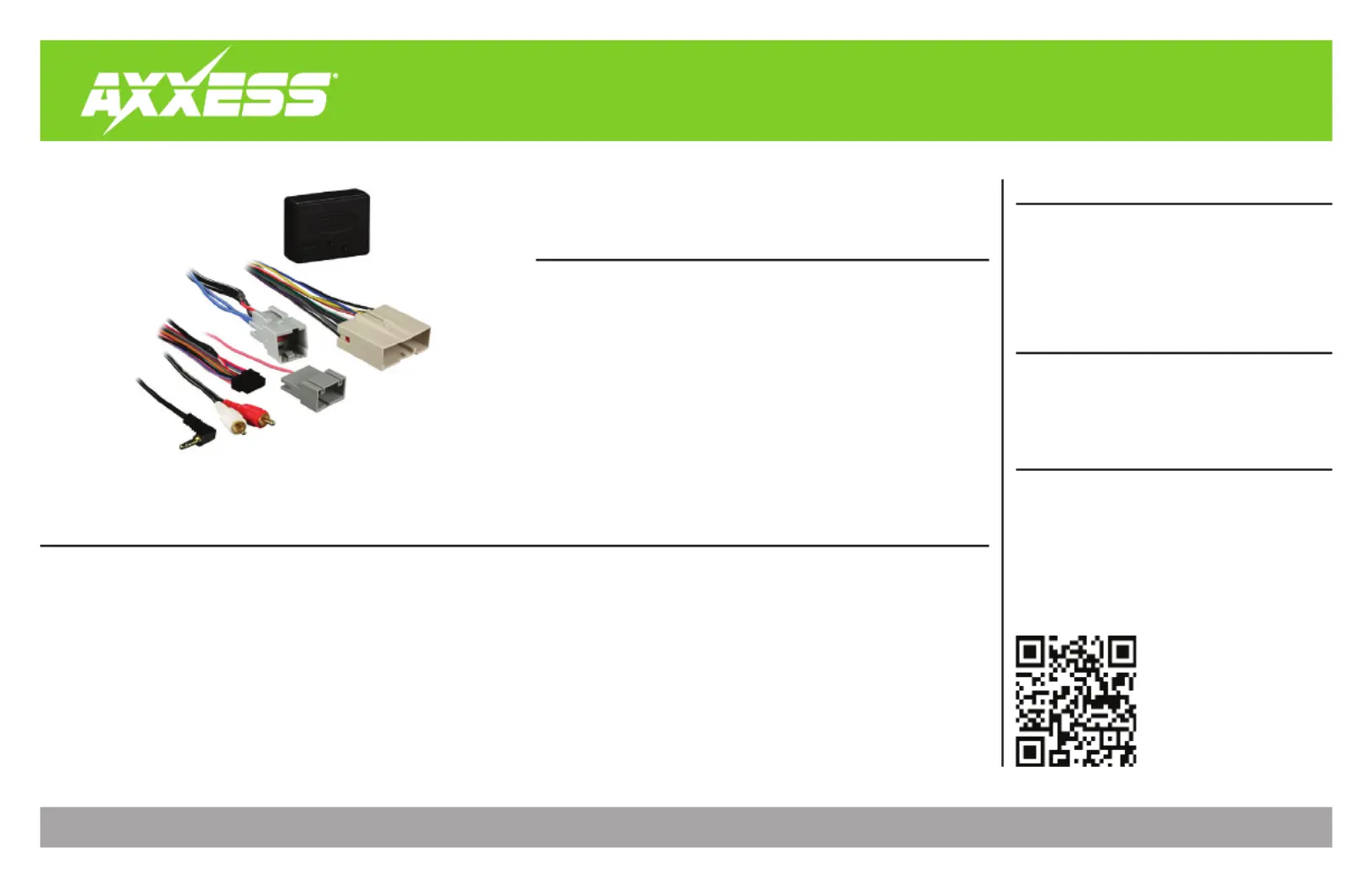

AXVI-5521
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/11/19 INSTAXVI-5521
Product Info
INTERFACE FEATURES
Ford Data Interface 2007-Up
• Provides accessory power (12 volt 10 amp)
• Retains R.A.P. (retained accessory power)
•
Designed for models with just an amplied subwoofer
•
Provides illumination, parking brake, reverse, and speed sense outputs
• Prewired AXSWC harness (AXSWC sold separately)
• Retains balance and fade
• Micro-B USB updatable
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
• AXVI-5521 Interface
• Subwoofer Harness
APPLICATIONS
Ford
Econoline 2009-Up
Edge 2007-2010
Escape 2008-2012
Expedition 2007-2014
Expedition (Fleet) 2015
F-150 2009-2012
Ford (Cont)
F150 STX/FX2 base/XLT base 2013
F150 STX/XLT base 2014
F250/350/450/550 2008-2012
F250/350/450/550 (XL/XLT)
2013-2016
F-650/750 (w/ CD) 2016-Up
Ford (Cont)
Flex 2008-2012
Focus 2008-2011
Fusion 2010-2012
Mustang 2009
Taurus 2010-2012
Lincoln
MKX 2007-2010
MKZ 2007-2009
Mazda
Tribute 2008-2011
Mercury
Mariner 2008-2011
Milan 2010-2011
2
CONNECTIONS
From the AXVI-5521 harness to the aftermarket radio, connect the:
• wire to the ground wire.Black
• Yellow wire to the battery wire.
• wire to the accessory wire.Red
• wire to the power antenna wire.Blue
• Blue/White wire to the amp turn on wire.
• Orange wire to the illumination wire (if applicable).
• wire to the front right positive speaker output.Gray
• Gray/Black wire to the front right negative speaker output.
• White wire to the front left positive speaker output.
• White/Black wire to the front left negative speaker output.
• Green wire to the rear left positive speaker output.
• Green/Black wire to the rear left negative speaker output.
• wire to the rear right positive speaker output.Purple
• wire to the rear right negative output.Purple/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Light Green wire to the parking brake wire (if applicable).
• wire to the VSS or speed sense wire (if applicable).Blue/Pink
• Green/Purple wire to the reverse wire (if applicable).
From the subwoofer harness to the aftermarket radio, connect the:
• Blue/White wire to the amp turn on wire.
• RCA jack to the right subwoofer output.Red
• White RCA jack to the left subwoofer output.
12-pin AXSWC harness & 3.5mm jack:
The 12-pin harness & 3.5mm jack is to be used with the (sold separately) to AXSWC AXSWC
retain steering wheel audio controls. If the is not being used, disregard this harness. AXSWC
If it is to be used, refer to the instructions for radio connections and programming. AXSWC
Disregard the harness that comes with the .AXSWC
3
REV. 11/11/2019 INSTAXVI-5521
INSTALLATION PROGRAMMING
With the key in the off position:
Connect the 1. AXVI-5521 harness AXVI-5521 interface into the , and then to the wiring harness
in the vehicle.
Note: If installing an AXSWC, connect it after you program and test the AXVI-5521, with the
key in the off position.
Attention! If the interface loses power for any reason, the following steps will need to be
performed again.
Cycle the engine on.1.
Note: If the radio doesn’t come on within 60 seconds, turn the key to the off position,
disconnect the interface, check all connections, reconnect the interface, and then try again.
Cycle the ignition off, then back on.2.
Test all functions of the installation for proper operation.3.
