Installation instructions for part AXUTR

REV. 2/3/2020 INSTAXUTR

Axxess Integrate

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

The AXUTR is a universal trigger output module that has various user programmable features

combined into one unit. The user programmable features are stored in non-volatile memory.

When triggered, the AXUTR can turn on the outputs as a pulsed, latched or timed.

KIT FEATURES

Features 2-4 .........................................................................

- Feature Chart 4 ................................................................

Wiring Instructions 5-6 ........................................................

Programming the AXUTR 7-8 ...............................................

TABLE OF CONTENTS

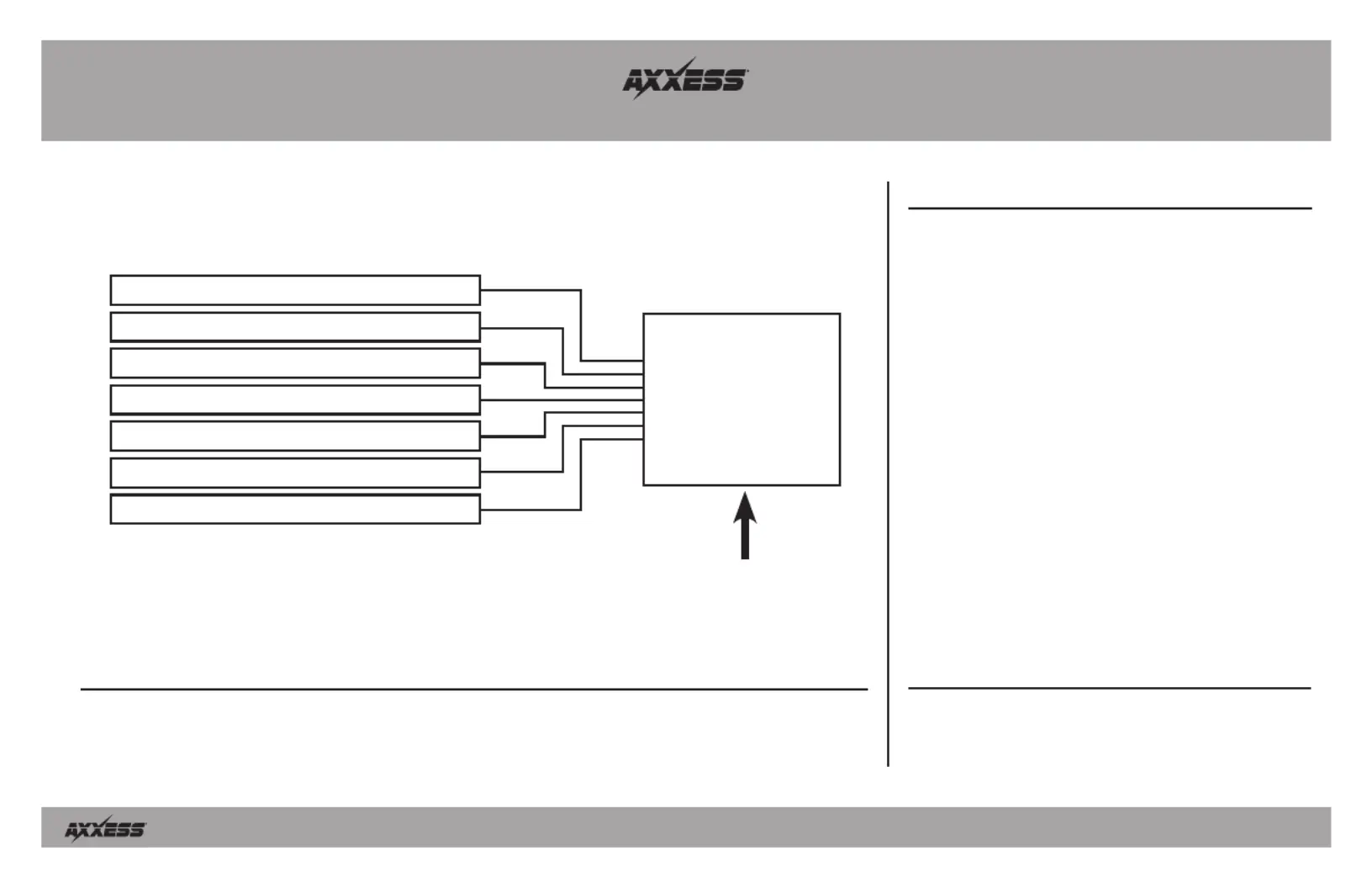

Black (-) Chassis ground

Red (+) 12-volt constant/switched

Green (+) 0.8 -16 volt input trigger

Brown (-) Input trigger

Blue (+) 12-volt output -2-amps max

White (-) Output -150 ma. max

Orange (-) Output - 150 ma. max

OFF-ON

Programming switch must be turned off after the AXUTR is programmed!

AXUTR

Basic Description of Features:

There are two inputs, the wire is a positive input that senses voltages as low GREEN

as 0.8-volt and the wire is a negative input, both are tied together internally BROWN

which is, essentially, ONE trigger input. There are 3 separate outputs; the wire is BLUE

a positive 12-volt output which has a maximum current rating of 2-amps. The WHITE

and wires are negative outputs which have a maximum of current rating of ORANGE

150-milliamps. The timed output is user adjustable and can be programmed up to

4 minutes and 15 seconds. What makes the AXUTR unique is that it does not use a

potentiometer to adjust the timer. The timer is set by programming AXUTR minutes

and seconds with a number. The time saved is accurate to the second +7% - 8%.

The basic descriptions below are the features that can be done with the AXUTR.

Each feature is assigned Feature#. Please make note of which Feature# you are

going to use. Other unique projects/installs can also be derived from the AXUTR, so

AXXESS leaves it to the installer’s imagination to experiment with these features.

#1 - Low voltage trigger:

Supplies a 12-volt remote output for an aftermarket amplifier when used with a

stock head unit that does not have a remote output. Use the AXUTR to supply a 12-

volt output from a 5-volt remote source, like from Ford radios. Use on some vehicles

that have a negative antenna output and convert to a positive output.

#2 - Alpine video bypass:

This will automatically bypass Alpine’s flip out monitor video procedure. WARNING!

It is dangerous (and illegal in most states) for the driver to watch the TV/Video

monitor while driving the vehicle. The driver may be distracted from looking ahead

and an accident could occur. Install the AXUTR only in RV and Marine applications

where there is no parking/hand brake to interface to. Do not install the AXUTR

where the driver may be able to view the monitor when driving.

#3 - Latch and unlatch output from a pulsed input:

Turn on headlights, neon lights or radio from an alarm with a momentary output or

from a momentary switch.

#4 - Double pulse output:

Pulses outputs twice when trigger from a constant or pulsed signal. Use for alarm

applications where the unlock wire needs 2 pulses to unlock all doors.

#5 - Closed loop circuit:

Good for monitoring trailers on hitches by triggering an aftermarket alarm if the

trailer is disconnected from the vehicles hitch. Also monitors stereo equipment in

vehicles.

#6 - Pulse extender/Delayed turnoff:

Upon a constant or pulsed trigger, the AXUTR will turn on the outputs. As soon as

the trigger is disconnected, turned off or at the end of a pulse, the timer will count

up to the number of seconds recorded, at which time the outputs will turn off. Good

for turning on headlights at night for convenience. Extend alarms output from 1

second to 3 seconds for Mercedes vacuum door locks. (rev.2)

#7 - Horn honking output:

On older, aftermarket alarms, it may have been difficult to disarm the alarm with the

RF remote when the horn was honking. This will give you a 2 second delay between

honks, allowing you to disarm the alarm. Unique horn honking to distinguish your

vehicle from others. Program between 1 and 5 honks before the 2 second delay.

Features

Continued on the next page

AXUTR

Features (Continued)

#8 - Linear Actuator Controller:

Open/close amplifier racks from a momentary source like from a alarm’s negative

output. Sequence is: Start, Stop, Reverse, and Stop.

#9 - Door lock Pulse generator:

Good for automatically locking and unlocking door locks when ignition is turned on

and off.

#10 - Channel Splitter:

Split 1 channel from an alarm to 2 outputs. Both outputs are user programmable for

pulse, latched or timed output.

#11 - Pulses to constant output:

Counts a number of user programmable pulses within a user programmed time to turn on

the outputs. Good for triggering Vehicle tracking devices that need a constant trigger but the

factory alarm only has a pulsed output when triggered like flashing lights or horn honking.

Keeps factory alarm from triggering Vehicle tracking device when arming or disarming

#12 - 3 timers in 1:

Upon a constant trigger, all 3 outputs are user programmable to delay before turning

on outputs or turning on instantly then delay before turning off outputs. Good for

situations where you need more than 1 timer but on a different timer period, without

having multiple modules.

#13 - Pulses to latch/unlatch outputs:

Upon a number of pulses within a user programmable time, the outputs will latch.

Upon a number of pulses within a user programmable time the second time, the

outputs will unlatch. You may program how many pulses to latch and unlatch. Use to

turn on aftermarket driving lights by using existing parking light switch.

#14 - Pulses to pulse output:

Upon number of pulses within a user programmable time, the outputs will pulse.

Example: if you programmed to see 4 pulses, for every 4 pulses the AXUTR sees

within a 5 second time period, the outputs will pulse once.

#15 - Pulses to timed output:

Upon a number of pulses within 5 seconds, the outputs will turn on and delay for the

amount of programmed time, then the outputs will turn off.

#16 - Latching outputs #2:

Good for turning on 2 sets of driving lights with one momentary switch. 1st pulse

will latch one wire. 2nd pulse will unlatch first wire and latch second wire. 3rd pulse

will latch both wires. 4th pulse turns off both wires.
