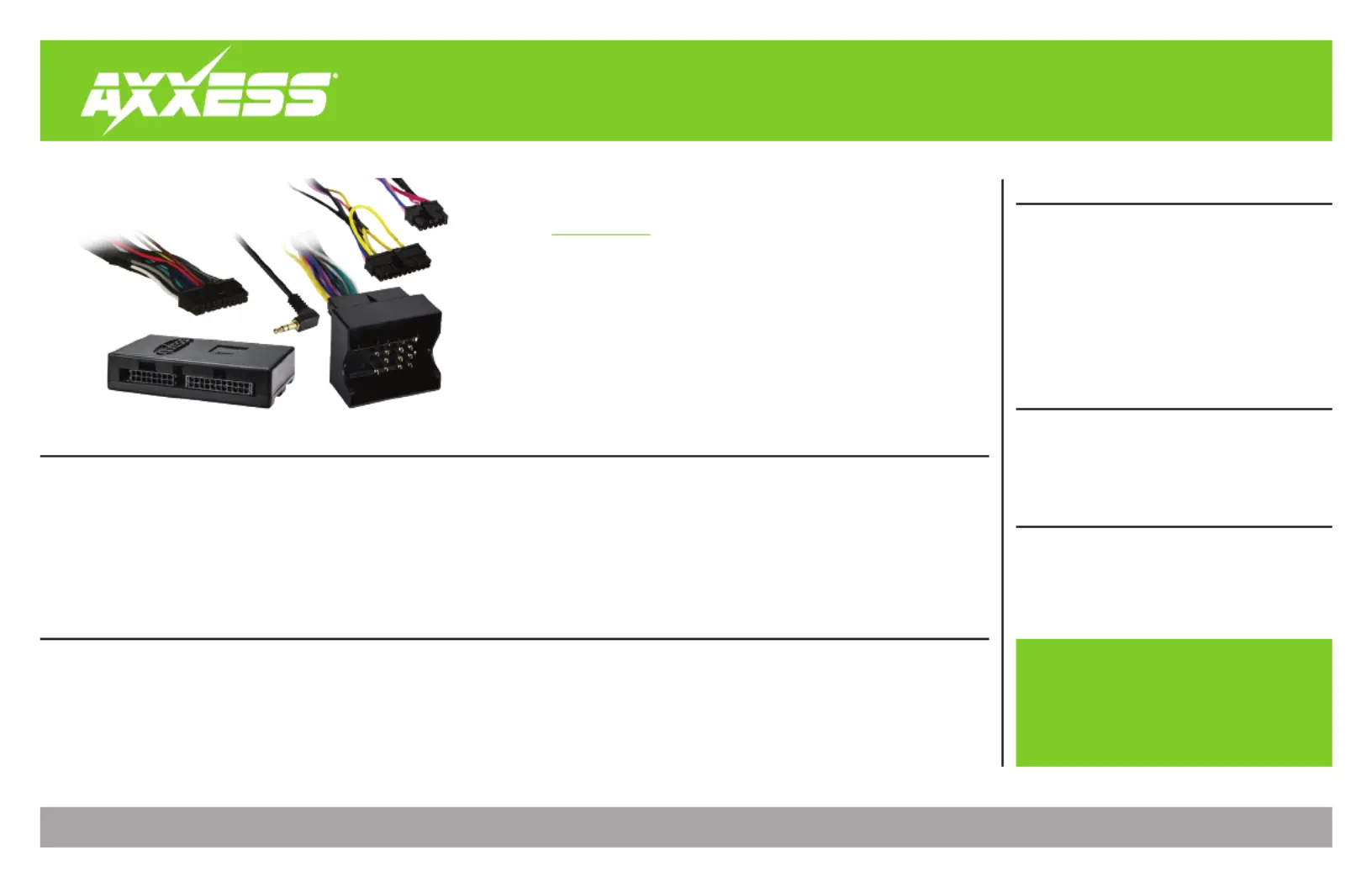

AXTO-VW1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/24/20 INSTAXTO-VW1
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Small flat-blade
screwdriver • Tape • Wire cutter • Zip ties
VW Data Interface 2002-2017
• Provides accessory power (12-volt 10-amp)
• Maintains the retained accessory power (R.A.P.) feature
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Prewired AXSWC harness (AXSWC sold separately)
• Retains balance and fade†
• Can be used in non-amplified or amplified models
(including Fender sound systems)
• Micro-B USB updatable
• AXTO-VW1 interface • AXTO-VW1 harness
• 16-pin harness with stripped leads
† Fade not retained in Fender sound systems
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming the AXTO-VW1 ................................3
Adjusting the AXTO-VW1 .......................................3
Troubleshooting .....................................................3
APPLICATIONS
VOLKSWAGEN
Beetle 2012-2015
CC 2009-2017
EOS 2007-2016
Golf 2002(ISO DDIN models only)
Golf, Golf R 2003-2014
GTI 2002-2005
Jetta (ISO DDIN models only) 2002
Jetta, Jetta GLI 2003-2015
Jetta SportWagen 2010-2014
Passat 2002-2015
Rabbit 2007-2009
Tiguan 2009-2015
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
2
CONNECTIONS TO BE MADE
From the 16-pin harness to the aftermarket radio:
• Connect the wire to the accessory wire.Red
If installing an AXSWC (sold separately), connect the wire on the AXTO-VW1 Note: Red
harness as well.
• Connect the wire to the illumination wire. (If the aftermarket radio has no Orange/White
illumination wire, tape off the wire).Orange/White
• Connect the wire to the amp turn on wire (In models with a Fender amp, this Blue/White
wire must be connected to hear sound from the factory amplifier).
• Tape off and disregard the following (9) wires, they will not be used in this application
Brown White White/Black Gray/Black Green Green/Black Purple Purple/Black, , , Gray, , , , ,
The following wires are for aftermarket multimedia/navigation radios that provide these wires
(if not required, tape them off and disregard them):
• Connect the wire to the parking brake wire (if applicable and not available on Light Green
manual transmission).
• Connect the wire to the speed sense wire (if applicable).Blue/Pink
• Connect the wire to the reverse wire (if applicable).Green/Purple
From the AXTO-VW1 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
12-pin pre-wired AXSWC harness:
• This harness is to be used along with the optional AXSWC (not included) to retain steering
wheel audio controls. If the AXSWC is not being used, disregard this harness. If it will be
used, please refer to the AXSWC instructions for radio connections and programming.
Disregard the harness that comes with the AXSWC.
3
REV. 1/24/2020 INSTAXTO-VW1
With the key in the off position:
•
Connect the 16-pin harness with stripped leads, and the AXTO-VW1 harness, into the interface
.
• If an AXSWC (sold separately) will be used, do not connect it until the AXTO-VW1 is
programmed and fully functional.
Attention! Do not connect the AXTO-VW1 harness to the wiring harness in the vehicle just yet.
For the steps below, the L.E.D. located inside the interface can only be seen while active. The
interface does not need to be opened to see the L.E.D.
1. Start the vehicle.
2. Connect the AXTO-VW1 harness to the wiring harness in the vehicle. The L.E.D. will initially be
Green to indicate the interface is powered.
3.
After a few seconds the L.E.D. will turn on solid while the interface automatically programs Red
to the vehicle. The radio will shut off at this point. This process should take 5 to 30 seconds
.
4. After the interface is programmed, the L.E.D. will turn on solid Green, and the radio will
come back on, indicating programming was successful.
5. Test all functions of the installation for proper operation, before reassembling the dash.
6. If the interface fails to function, refer to “Troubleshooting”.
Resetting the Axxess interface
1. The reset button is located inside the Axxess interface, between the two connectors. Blue
The button is accessible outside the Axxess interface, no need to open the Axxess interface.
2. Press and hold the reset button for two seconds, then let go to reset the Axxess interface.
3. Refer to “Programming the Axxess Interface” from this point.
Audio level adjustment (Fender amplified systems only):
• With the vehicle and radio turned on, turn the volume up 3/4 of the way.
• With a small flat-blade screwdriver, adjust the potentiometer clockwise to raise the audio
level; counterclockwise to lower the audio level.
• Once at a desired level, audio level adjustment is complete.
INSTALLING THE AXTO-VW1
PROGRAMMING THE AXTO-VW1 TROUBLESHOOTING
ADJUSTING THE AXTO-VW1
