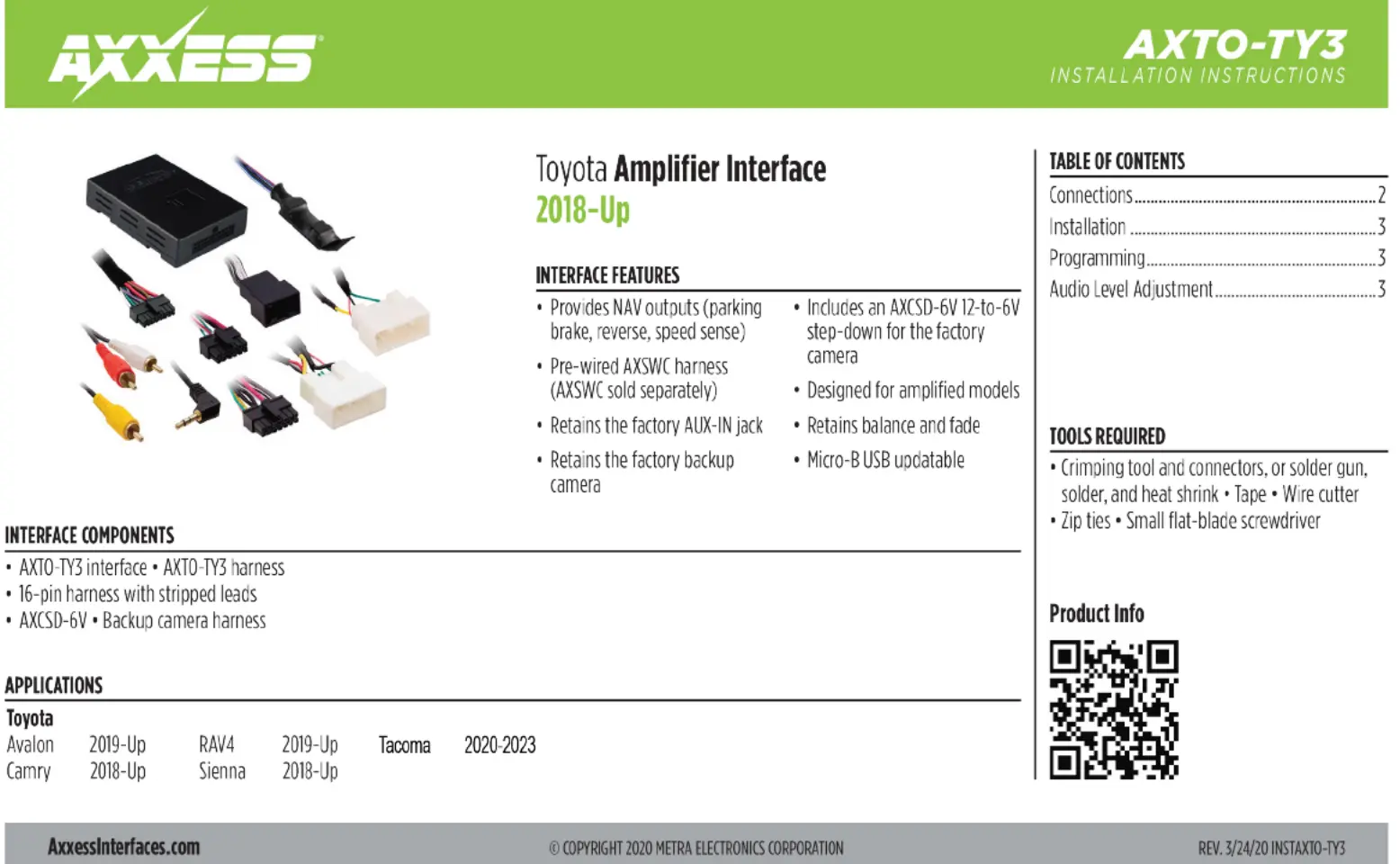

Seite 1/4
2
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the wire to the amplifier turn on wire. This wire must be connected to Blue/White
hear sound from the factory amplier.
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative output.Purple/Black
• Tape off and disregard the following (6) wires, they will not be used in this application:
Blue/Pink Brown Green/Purple Light Green Orange/White, , , , , Red
From the AXTO-TY3 harness to the aftermarket radio:
• Connect the wire to the ground wire. There will also be a ground wire from the Black
backup
camera harness
to connect as well.
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
• Connect the wire to the reverse wire, and also to the wire from Green/Purple Blue/White
the AXCSD-6V.
The following (1) wire is only for a multimedia/navigation radio that requires this wire.
• Connect the wire to the VSS/speed sense wire.Blue/Pink
• Connect the and RCA jacks to the audio AUX-IN jacks from the aftermarket radiRed White
12-pin AXSWC harness & 3.5mm jack:
The 12-pin harness & 3.5mm jack is to be used with the AXSWC (sold separately) AXSWC
to retain steering wheel audio controls. If the is not being used, disregard this AXSWC
harness. If it is to be used, please refer to the instructions for radio connections anAXSWC
programming. Disregard the harness that comes with the AXSWC.
Backup camera harness:
• Connect the wire labeled “CAMERA GROUND”, to the ground from the Black AXTO-TY3
harness Black, and also to the wire from the AXCSD-6V.
• Connect the wire labeled “CAMERA POWER 6V”, to the wire from Red Blue/Red
the AXCSD-6V.
• Connect the Yellow RCA jack labeled “BACKUP CAMERA”, to the radios backup camera inpu
The following (1) wire is only for a multimedia/navigation radio that requires this wire.
• Connect the wire to the radios parking brake wire.Light Green
3
REV. 3/24/2020 INSTAXTO-TY3
With the key in the off position:
Connect the , and the 1. 16-pin harness with stripped leads AXTO-TY3 harness, into the
AXTO-TY3 interface.
Connect the 2. backup camera harness AXTO-TY3 harness, and the , to the wiring harness in
the vehicle.
If an (sold separately) will be used, do not connect it until the 3. AXSWC AXTO-TY3 is
programmed and fully functional.
Attention! If the interface ever loses power, the following steps will need to be performed again.
Please ensure that the owner of the vehicle knows this.
Turn the key (or push-to-start button) to the ignition position and wait until the radio comes 1.
on.
If the radio doesn’t not come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, and then try again.
Cycle the key off, then back on. If the driver’s door is closed, open and close the door.2.
Test all functions of the installation for proper operation, before reassembling the dash.3.
To use fade, ensure that the radio is turned up 3/4 of the way. Also note that the fader Note:
will not entirely cut out the speakers.
1.
With the vehicle and radio turned on, turn the volume up 3/4 of the way.
2.
With a small flat-blade screwdriver, adjust the potentiometer clockwise to raise the aud
level; counterclockwise to lower the audio level.
3.
Once at a desired level, audio level adjustment is complete.
PROGRAMMING
