AXTO-MI3
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 9/25/19 INSTAXTO-MI3
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Adjustments ...........................................................3
Mitsubishi Amplier Interface
2014-2019
APPLICATIONS
• Pre-wired AXSWC harness (AXSWC sold separately)
• Designed for amplified models
• Retains balance and fade
• Micro-B USB updatable
Mitsubishi
Lancer 2014-2017
Outlander 2014-2019

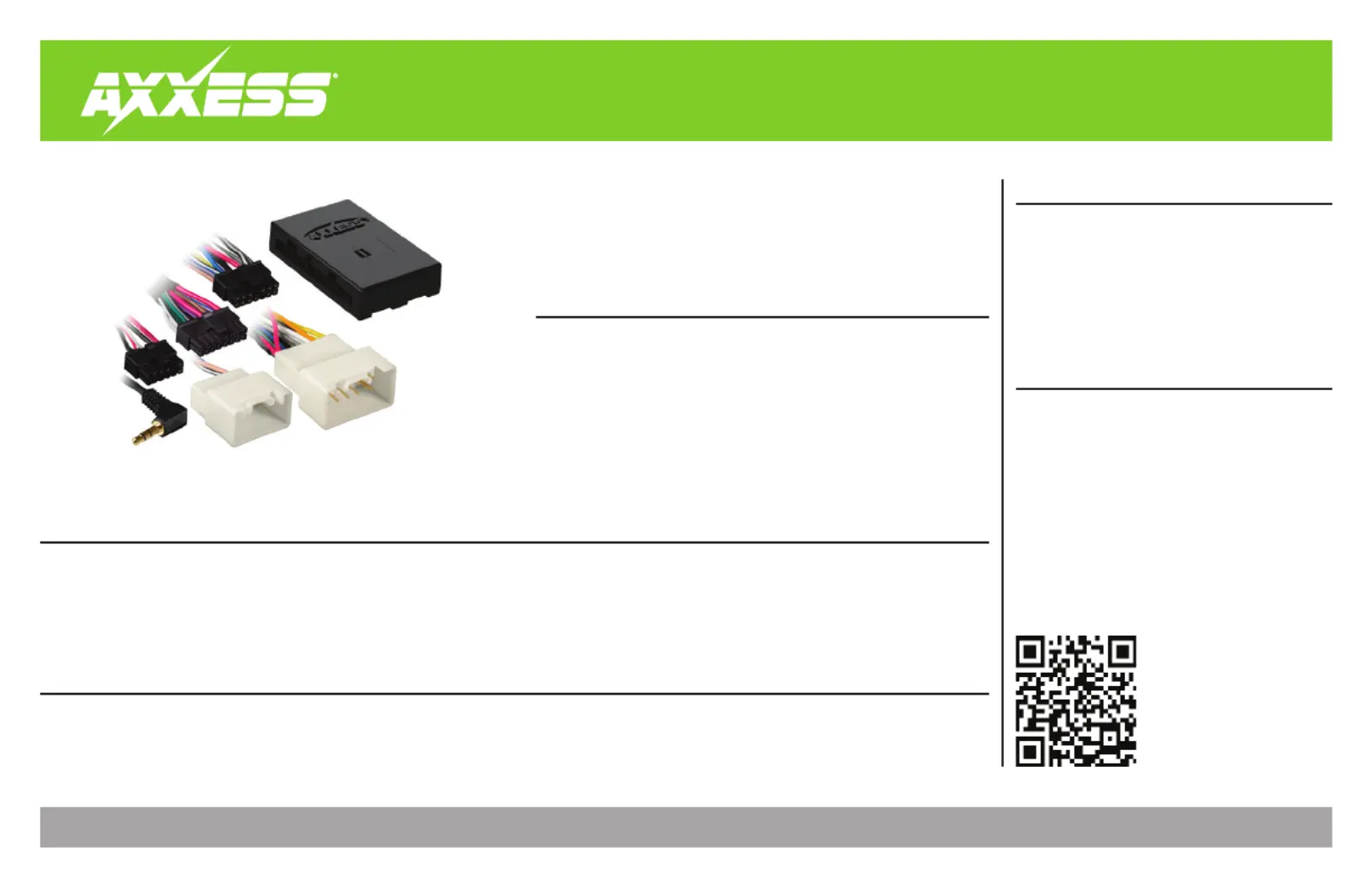

• AXTO-MI3 interface
• AXTO-MI3 harness
• 16-pin harness
2
CONNECTIONS
From the 16-pin harness to the aftermarket radio:
• Connect the wire to the amp turn on wire.Blue/White
• Connect the wire to the left front positive speaker output.White
• Connect the wire to the left front negative speaker output.White/Black
• Connect the wire to the right front positive speaker output.Gray
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the wire to the left rear positive speaker output.Green
• Connect the wire to the left rear negative speaker output.Green/Black
• Connect the wire to the right rear positive speaker output.Purple
• Connect the wire to the right rear negative speaker output.Purple/Black
• Tape off and disregard the following (6) wires , they will not be used in this application:
Blue/Pink Brown Green/Purple Light Green Orange/White, , , , , Red
From the AXTO-MI3 harness to the aftermarket radio:
• Connect the wire to the ground wire.Black
• Connect the Yellow wire to the battery wire.
• Connect the wire to the accessory wire.Red
• Connect the wire to the Illumination wire (If applicable).Orange
12-pin pre-wired AXSWC harness & 3.5mm jack:
•
This harness and 3.5mm jack is to be used along with the optional AXSWC (sold separately) to
retain steering wheel audio controls. If the AXSWC is not being used, disregard this harness. If
it will be used, refer to the vehicle specic AXSWC instruction from Axxess Interfaces for radio
connections and programming. Disregard the harness that comes with the AXSWC.
3
REV. 9/25/2019 INSTAXTO-MI3
Audio Level Adjustment
1. Locate the potentiometer on the interface by the 16-pin harness.
2. Turn the volume of the radio up 3/4 of the way.
3. With a small flat-blade screwdriver, adjust the potentiometer clockwise to raise the audio
level; counterclockwise to lower.
4. Once at a desired level, audio level adjustment is complete.
INSTALLATION PROGRAMMING
Attention! The factory satellite radio and Bluetooth modules must be disconnected from the
vehicle. Failure to perform these steps will cause the factory amplier to not play properly.
1. Find and disconnect the factory satellite radio module.
• The satellite module for the Lancer and Outlander can be located high in the passenger
side kick panel.
2. Find and disconnect the factory Bluetooth module.
• The Bluetooth module for the Lancer can be located behind the glove box, up high.
• The Bluetooth module for the Outlander can be located below the factory radio.
3. AXTO-MI3 harness Connect the to the AXTO-MI3 interface, and then to the wiring harness in
the vehicle.
4. If an AXSWC (sold separately) will be used, do not connect it until the AXTO-MI3 is
programmed and fully functional.
Attention! If the interface loses power for any reason, the following steps will need to be
performed again.
•
Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on.
If the radio doesn’t come on within 60 seconds, turn the key to the off position, Note:
disconnect the interface, check all connections, reconnect the interface, then try again.
• Turn the key to the off position, then to the accessory position. Test all functions of the
installation for proper operation, before reassembling the dash.
ADJUSTMENTS
