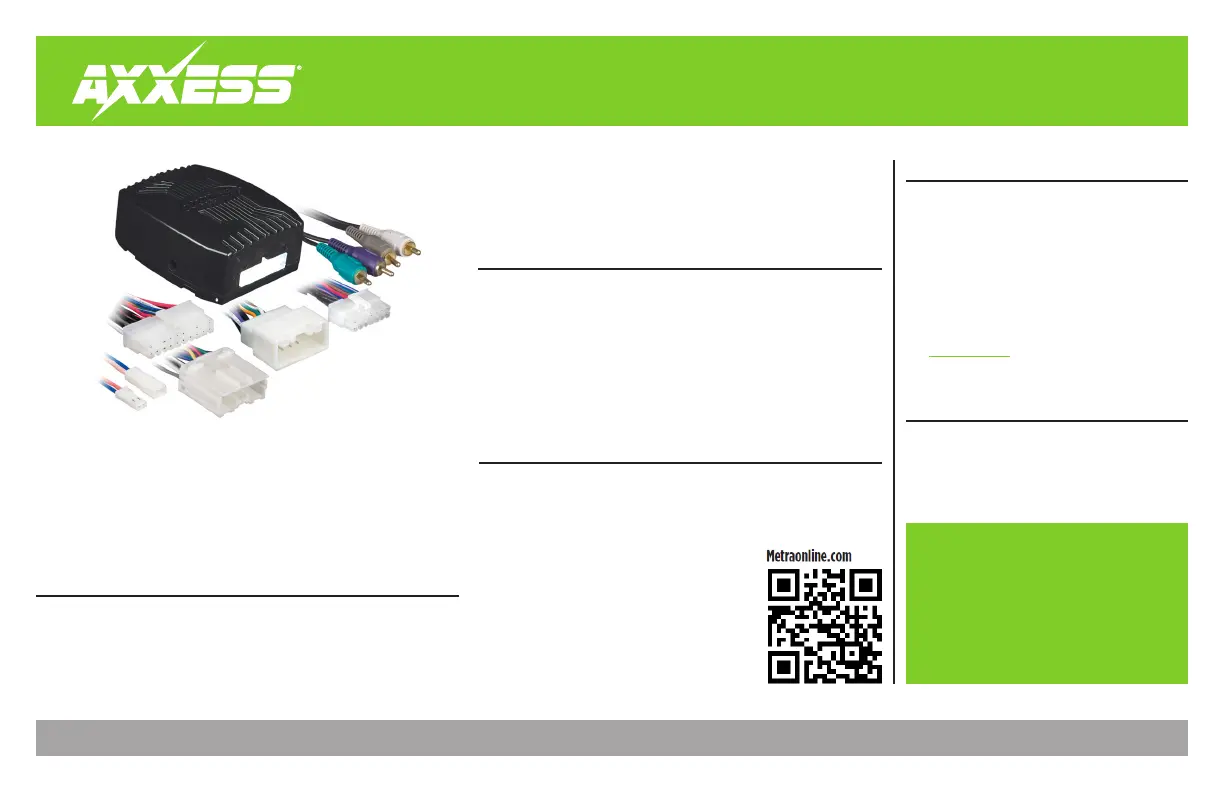

AXTO-MI2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/3/24 INSTAXTO-MI2
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape
•
Small flat-blade screwdriver
• Connectors
(example: butt-connectors, bell
caps, etc.)
TABLE OF CONTENTS
Connections 2 ............................................................
Initializing and Adjusting the AXTO-MI2 3 ..............
QR Code for AXSWC
Connections/Programming 3 ...............................
AXSWC Wiring Guide 4 ............................................
Mitsubishi Select Models 2007-2013
Amplifier Interface
• Retains the factory amplifier
• Provides multimedia wires (parking brake, reverse, and speed sense)
• RCA level input
• Retains balance and fade
• AXTO-MI2 interface • AXTO-MI2 harness
• 16-pin harness with stripped leads and RCA jacks
APPLICATIONS
Mitsubishi
Lancer 2008-2013 .............................................................................................
Outlander Sport .............................................................................
2011-2013
Outlander........................................................................................2007-2013
For scan QR Code Dash Disassembly Instructions,
or refer to Enter the year, make, Metraonline.com.
and model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Visit for more detailed information about MetraOnline.com
the product and up-to-date vehicle specific applications
2

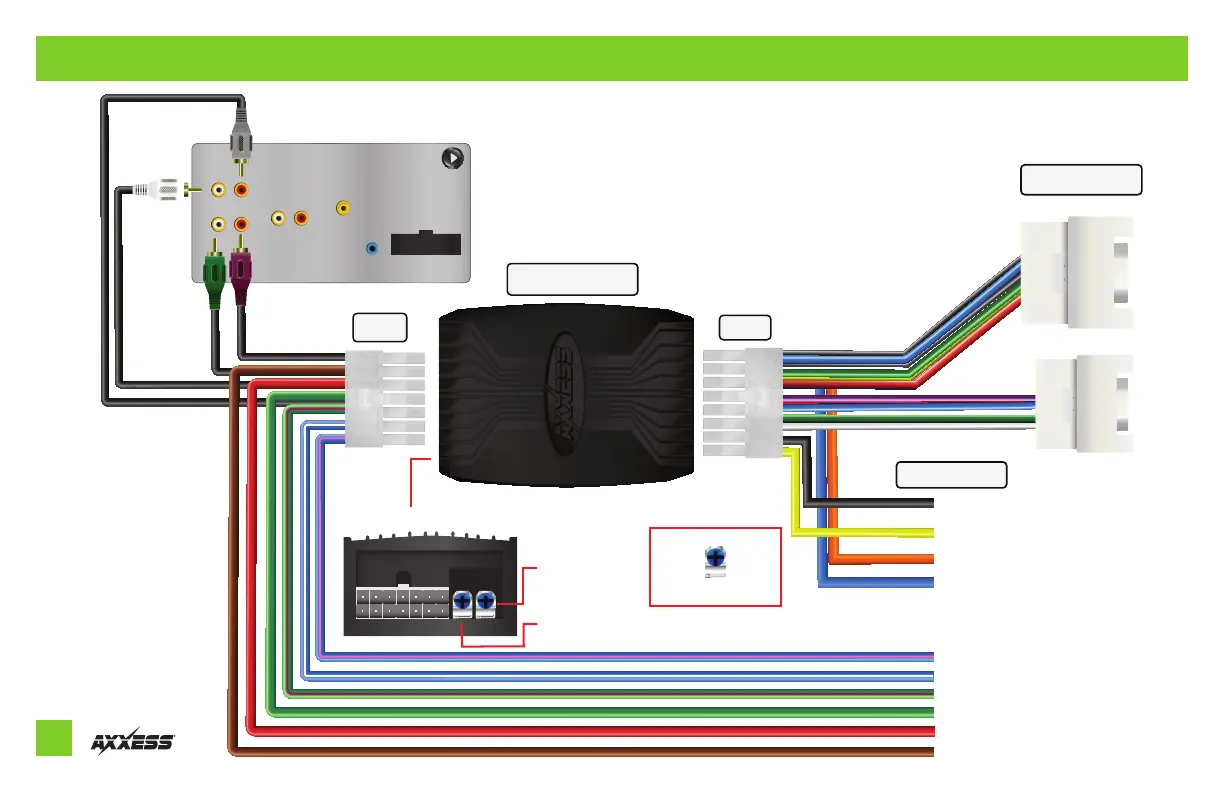

CONNECTIONS
Front
Rear
AUX-IN
Rear View
SWC
Red - Accessory Power
Black - Ground wire
Yellow - Battery wire
Orange - Illumination
Blue - Antenna Turn-On
*
Blue/Pink- VSS
Blue/White - AMP Turn-On
Green/Purple
- Reverse
Green
-
Parking Brake
Brown - Mute
LD-MITO-02
Mid/High
speaker control
Subwoofer control
Turn Clockwise to make louder
Turn Counterclockwise to lower
Potentiometer Adjustments
*If your radio does not have a dedicated Antenna
Turn-On wire, use Accessory or Amp Turn-On
Vehicle Connectors
Radio Connections
16-Pin
14-Pin
20-Pin
18-Pin
Side View
3
REV. 4/3/24 INSTAXTO-MI2
INITIALIZING AND ADJUSTING THE AXTO-MI2
• Initialize the interface by turning the ignition on for 30 seconds, then turn the ignition
back off, and on again.
• If the speakers are too loud, or not loud enough, you can adjust the output by
following the steps below:
1. Locate the two potentiometers on the side of the interface, see image at right.
2. Using a small flat-blade screwdriver, turn the gain knob clockwise to make it
louder, or counterclockwise to make it lower.
Mid/High
speaker control
Subwoofer control
Turn Clockwise to make louder
Turn Counterclockwise to lower
Potentiometer Adjustments
Side View
Scan QR Code for AXSWC
Connections/Programming
