AXTO-CH13
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/23/20 INSTAXTO-CH13
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Small flat-blade screwdriver
TABLE OF CONTENTS
Application List ......................................................2
Connections
- For models
without
an amplifier .......................3
- For models
with
an amplifier .............................4
Installation .............................................................5
Programming .........................................................5
Audio Level Adjustment ........................................6
Chrysler Data Interface 2004-Up
APPLICATIONS
See inside front cover
• Provides accessory power (12-volt 10 amp)
• Retains R.A.P. (retained accessory power)
• Used in amplified or nonamplified systems
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Adjustable gain control for overall volume (on amplified systems)
• Retains blind spot detection system (if equipped)
• High level speaker input
• Retains balance and fade
• Micro-B USB updatable

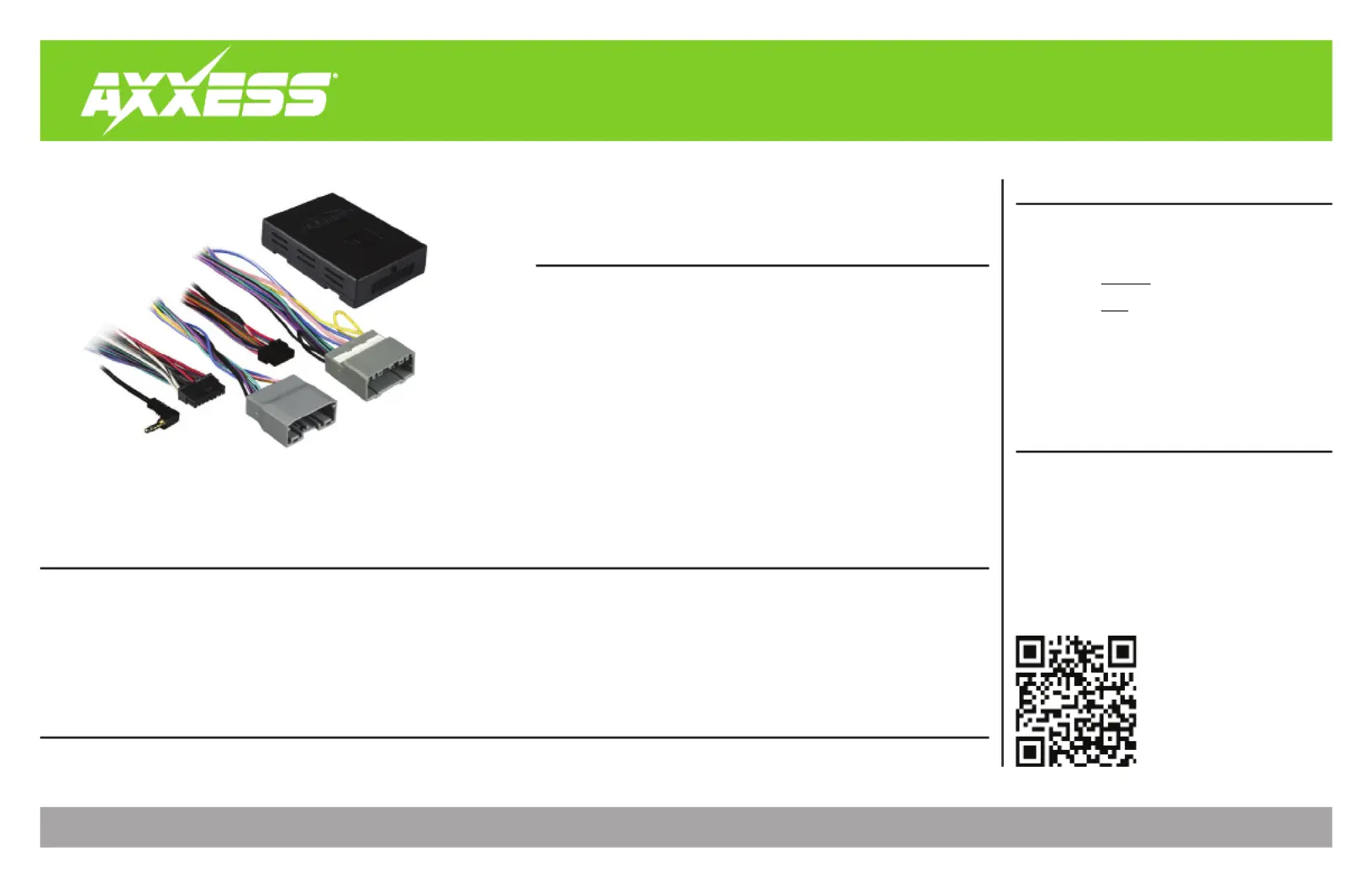

• AXTO-CH13 harness*
• AXTO-CH13 interface
• 16-pin harness • 4-pin harness
* Consists of LD-CHTO-31 / LD-CHTO-33 harnesses
2
APPLICA TIONS
Applications below use
the LD-CHTO-31 harness
CHRYSLER
300 2005-2007
Aspen 2007
PT Cruiser
DODGE
Caliber
Charger 2006-2007
Dakota 2005-2007
Durango 2004-2007
Magnum 2005-2007Ram 1500 2006-2008
Ram 2500/3500 2006-2009
Ram Chassis Cab 2006-2010
JEEP
Commander 2006-2007
Compass 2007-2008
Grand Cherokee 2005-2007
Patriot 2007-2008
MITSUBISHI
Raider 2006-2007
Applications below use
the LD-CHTO-33 harness
CHRYSLER
200 2011-2014
300 2008-2010
Aspen 2008-2009
Sebring 2007-2010
Town & Country 2008-2017
DODGE
Avenger 2008-2014
Caliber 2009-2012
Challenger 2008-2014Charger 2008-2010
Dakota 2008-2011
Durango 2008-2013
Grand Caravan 2008-Up
Journey 2009-2010
Magnum 2008-2009
Nitro 2007-2011
Ram 1500 2009-2011
Ram 2500/3500 2010-2011
Ram Chassis Cab 2011
JEEP
Commander 2008-2010
Compass 2009-2017.5
Grand Cherokee 2008-2013
Liberty 2008-2012
Patriot 2009-2017
Wrangler, Wrangler Unlimite
Wrangler, Wrangler Unlimite
(JK body type)
2018
MITSUBISHI
Raider
RAM
1500/2500/3500 2012Chassis Cab 3500/4500/5500C/V Tradesman 2012-2015
VOLKSWAGEN
Routan
3
REV. 1/23/2020 INSTAXTO-CH13
CONNECTIONS
For models
without
a factory amplifier:
From the 16-pin harness to the aftermarket radio, connect the:
• wire to the accessory wire.Red
• Orange/White wire to the illumination wire (if applicable).
Attention! The following (4) wires are reversed on purpose. These wires will not match “color
code” to the aftermarket radio.
• wire to the rear right positive speaker output.Gray
• Gray/Black wire to the rear right negative speaker output.
• White wire to the rear left positive speaker output.
• White/Black wire to the rear left negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• wire to the VSS/speed sense wire.Blue/Pink
• Green/Purple wire to the reverse wire.
• Light Green wire to the parking brake wire
• Tape off and disregard the following (6) wires, they will not be used in this application:
Blue/White Brown Green Green/Black Purple Purple/Black, , , , ,
From the LD-CHTO-31 or LD-CHTO-33 harness to the aftermarket radio, connect the:
• wire to the ground wire.Black
• Yellow wire to the battery wire.
• or Blue Blue/White wire depending on which harness is used, to the power antenna wire.
• wire to the front right positive speaker output.Gray
• Gray/Black wire to the front right negative speaker output.
• White wire to the front left positive speaker output.
• White/Black wire to the front left negative speaker output.
• Make sure the (2) 4-pin connectors are connected together.
12-pin AXSWC harness & 3.5mm jack:
The 12-pin harness & 3.5mm jack is to be used with the (sold separately) to AXSWC AXSWC
retain steering wheel audio controls. If the is not being used, disregard this harness. AXSWC
If it is to be used, refer to the instructions for radio connections and programming. AXSWC
Disregard the harness that comes with the .AXSWC
Continue to Installation
