AXTC-PO1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/2/24 INSTAXTC-PO1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections: LD-SWCX-PO1 HARNESS 2 ..................
Programming 3 .........................................................
Troubleshooting.....................................................4
Porsche SWC (Steering Wheel Control)
and Data Interface 2010-2016
APPLICATIONS
• Designed for non-amplified
models only
•
Provides accessory power
(12-volt 10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
•
Retains the factory backup camera
• Micro-B USB updatable
Porsche
911 2011-2016 .......................................................
Cayenne 2011-2016 .............................................
Macan (958) 2015-2016 ......................................
Panamera 2010-2016 ........................................

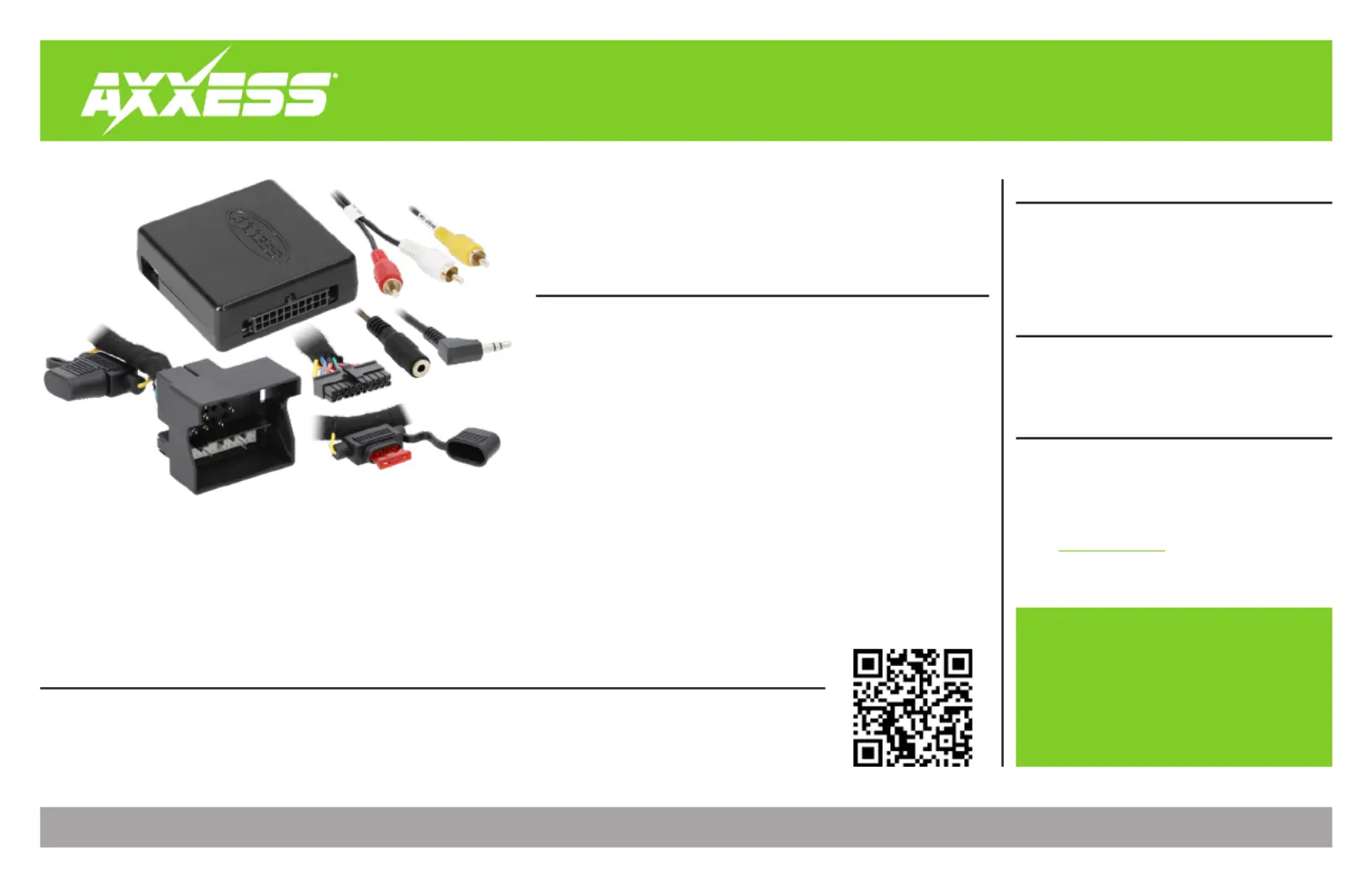

• AXTC-PO1 interface • AXTC-PO1 harness
• 3.5mm adapter
Product Info
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition to
test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
LD-SWCX-PO1
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue - Antenna turn on
Blue/White - Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
20-Pin
Vehicle Connector
Radio Connections
Interface
BACKUP
CAM
LED Light
Reset Button
3.5mm Adapter (for vehicles with Steering wheel controls
or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together
with tape or connector
2) 3.5mm adapter AXTC-PO1 HarnessConnect the to the 3.5mm jack from the
3) AXTC-PO1 Program the per the instructions on page 3. Disregard steps 4 & 5
CONNECTIONS: LD-SWCX-PO1 HARNESS
3
REV. 2/2/24 INSTAXTC-PO1
Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the to the , and then toAXTC-PO1 harness AXTC-PO1 interface
the wiring harness in the vehicle.
The LED light will go out, then once again quickly flash & Green Red
while the interface programs itself to the vehicle. Once programmed,
the LED light will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
Note: Audio Mode must be selected in the MFI menu to allow track up
and down to function. Refer to the vehicle owner’s manual for more
information.

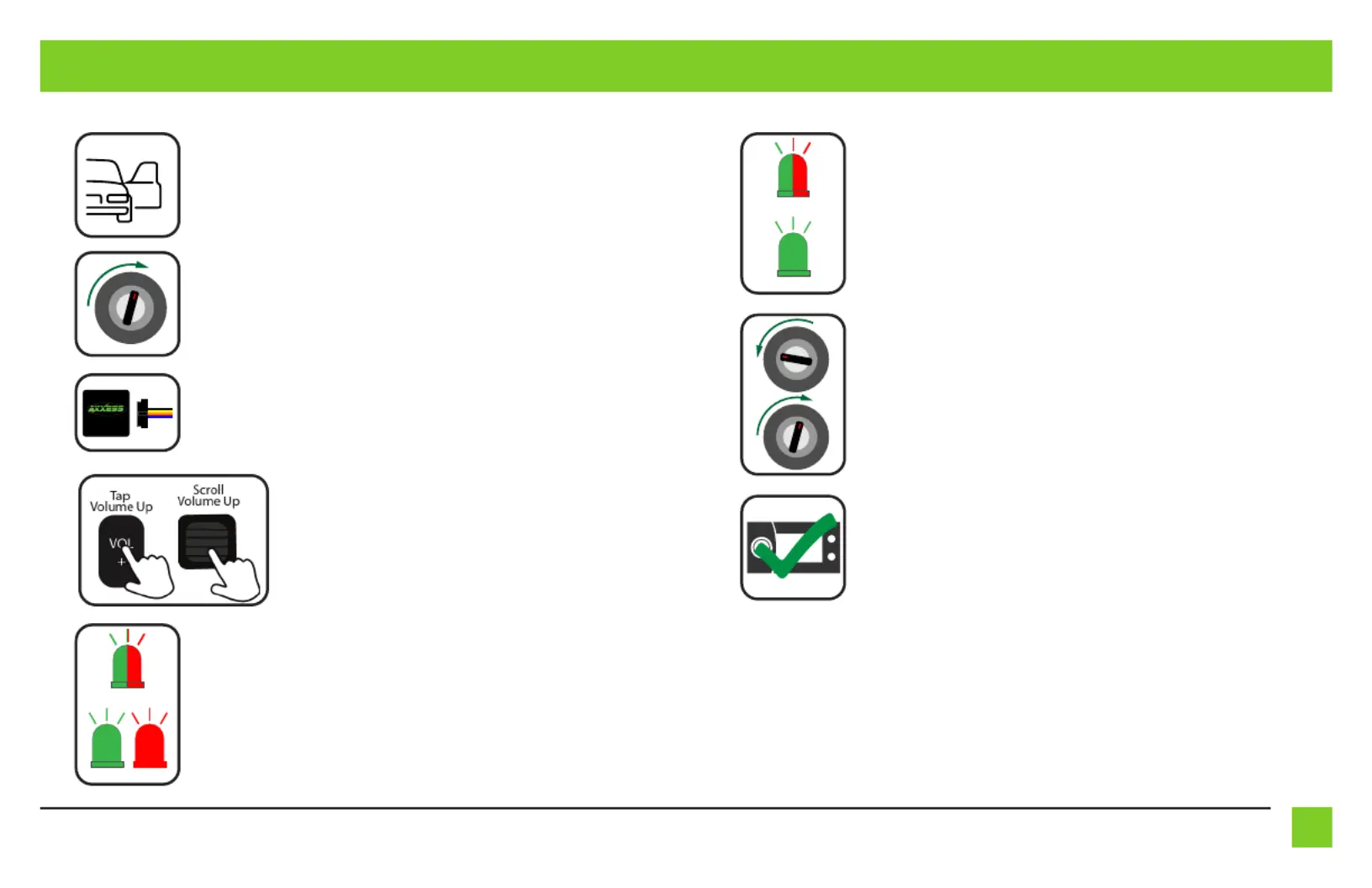

PROGRAMMING
1.
2.
3.
4.*
5.*
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
Gr Deen & Red LE
Gr Deen or Red LE
Locate the button on the steering wheel.Volume Up
*
Program the interface by tapping/scrolling the Volume Up
button at a heartbeat pace/or scrolling up continuously
until the LED light stops flashing.
*Only applicable if vehicle came with steering wheel controls
† Vehicles with scroll wheel button
The LED light will flash & while the interface programs Green Red
the radio to the steering wheel controls. Once programmed, the
LED light will go out, then produce a pattern which will identify the
radio type installed. Refer to the section under Radio LED Feedback
Troubleshooting for radio types.
*Only applicable if vehicle came with steering wheel controls
†
