AXTC-MB1
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/7/23 INSTAXTC-MB1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Connections
LD-SWCX-MB1.....................................................2
LD-SWCX-MB2 ...................................................3
Programming .........................................................4
Troubleshooting .....................................................5
Connector View ......................................................6
Mercedes SWC (Steering Wheel Control)
and Data Interface 2001-2018
INTERFACE FEATURES
• Provides accessory power (12 volt 10-amp)
• Designed for non-amplified models
• Provides wires for multimedia radios (park brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Designed to be compatible with all major radio brands
• Auto detects vehicle type, radio connection, and preset controls
• Ability to dual assign steering wheel control buttons
• Retains memory settings even after battery disconnection or
interface removal (nonvolatile memory)
• Provides illumination output
• Micro-B USB updatable
APPLICATIONS
Mercedes
C Class ......................... 2001-2004
CLK Class ...................... 2004
CLK500 ........................ 2003
CLK55 AMG .................. 2003
C Class ......................... 2005-2011
CLK Class ..................... 2005-2009
E Class ......................... 2010-Up
G Class ......................... 2007-2012
GLK Class ...................... 2010-2012
R Class ......................... 2006-2011
SLK Class ..................... 2005-2011
Sprinter ....................... 2010-2018
• AXTC-MB1 Interface • 3.5mm Adapter
• LD-SWXC-MB1 Harness
• LD-SWXC-MB2 Harness
2

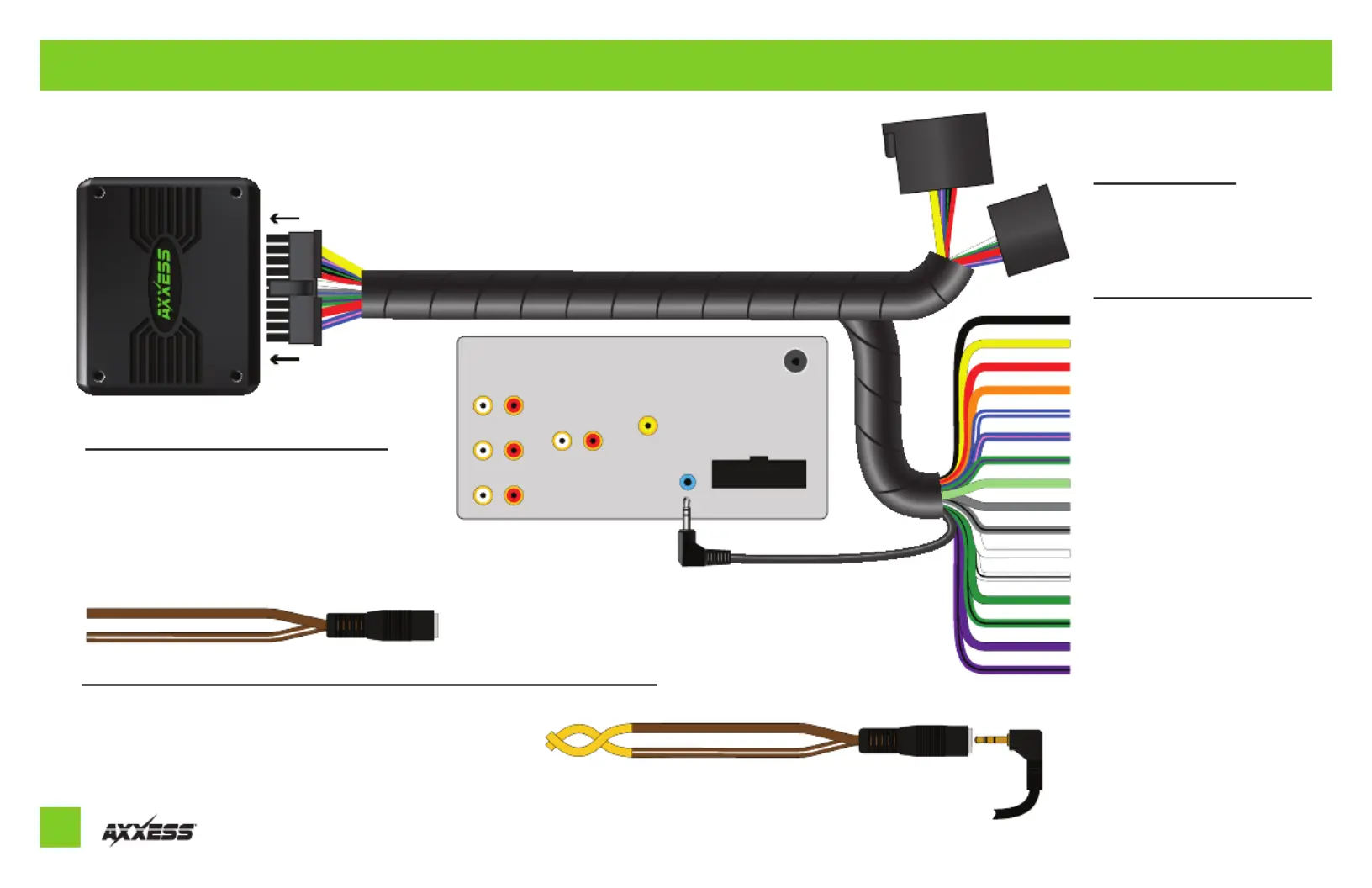

CONNECTIONS LD-SWCX-MB1
Front
Rear
Sub
AUX-IN
Rear ewVi
SWC
20P
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with C wire):SW y 1 - Br nKe (Gray) ow
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: 2 - Br nSWC- ow
Key-A or 1 - Br n SWC- ow
Key-B or 2 - Br n/WhiteSWC- ow
* After pr
ogramming, assign dio menuSWC buttons within ra
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Br n Br From the , tie the ow and own/White wir res together with tape or connecto
2) 3.5mm adapter -MB1 HarnessConnect the to the 3.5mm jack from the AXTC
3) Program the per the instructions on page 4. DisregarAXTC-MB1 d steps 4 & 5
Reset Button
LED Light
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
3.5mm Jack
Vehicle Connectors
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector
2) 3.5mm adapterConnect the to the 3.5mm jack from the AXTC-MB1 Harness
3) Program the AXTC-MB1 per the instructions on page 4. Disregard steps 4 & 5
20P
Front
Rear
Sub
AUX-IN
Rear View
SWC
3
REV. 3/7/23 INSTAXTC-MB1

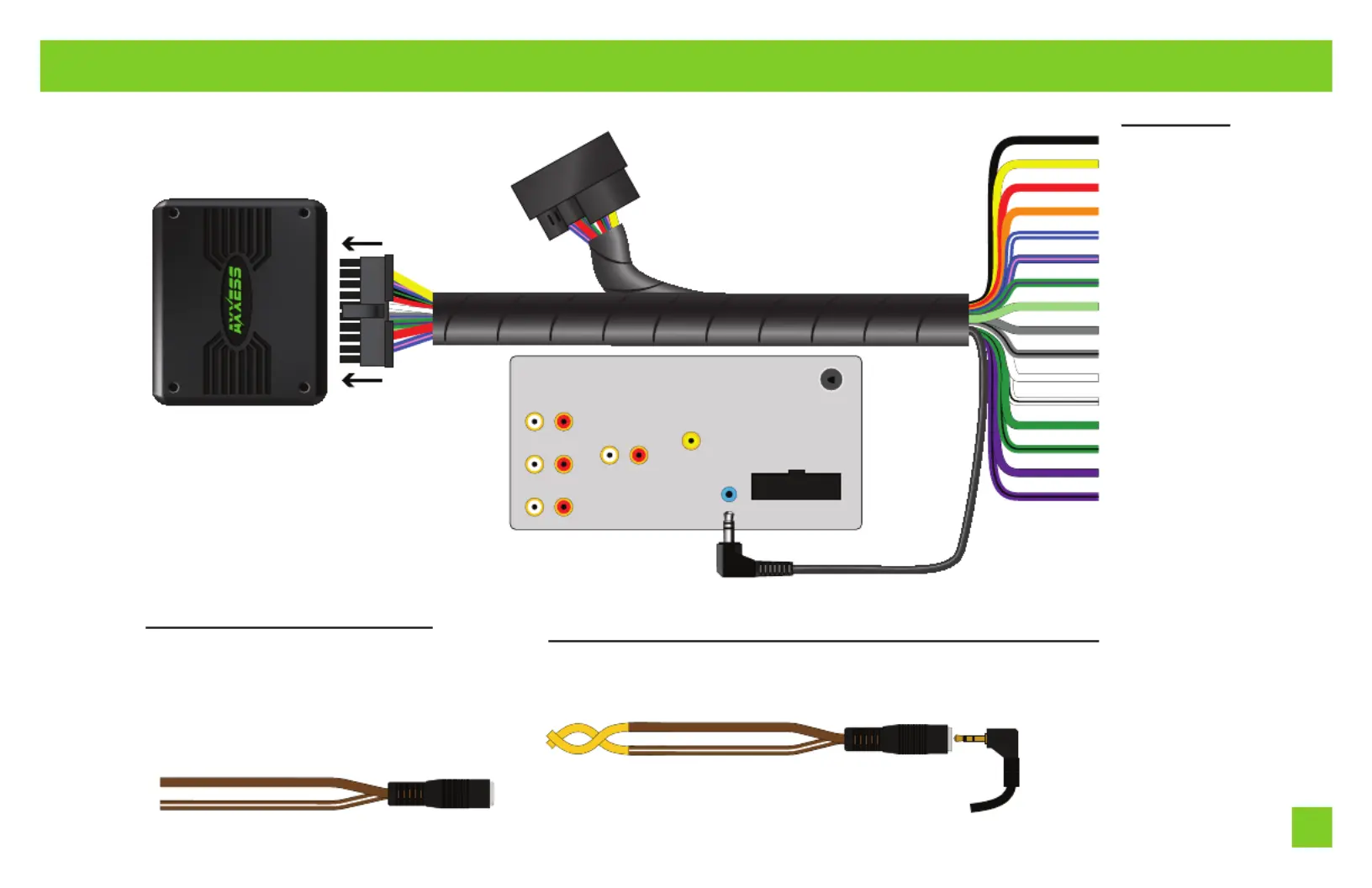

CONNECTIONS
LD-SWCX-MB2
Reset Button
LED Light
3.5mm Jack
Aftermarket Radio
(radio’s features may vary)
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
