AXTC-LN44
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 4/10/23 INSTAXTC-LN44
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections 3 ............................................................
Programming 4 .........................................................
Troubleshooting.....................................................5
GM Data Interface with SWC 2012-2016
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed sense
outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
• AXTC-LN44 interface
• AXTC-LN44 harness
• 3.5mm adapter
APPLICATIONS
See inside front cover
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-
date vehicle specific applications.
2
Chevrolet
Avalanche 2012-2013(1) ..................................
Express 2013-2015(1) ......................................
Malibu 2013-2015(2) ........................................
Malibu Limited 2016-2016(2) ..........................
Silverado 2500 HD 2014(1) .............................
Silverado 3500 HD 2014(1) .............................
Silverado 2012-2013(1) ...................................
Suburban 2012-2014(1) ...................................
Tahoe 2012-2014(1) .........................................
Trax ..................................................2015-2016
GMC
Savana 2013-2015(1) .......................................
Sierra 2500 HD 2014(1) ...................................
Sierra 3500 HD 2014(1) ...................................
Sierra 2012-2013(1) ..........................................
Yukon 2012-2014(1) .........................................
Yukon XL 2012-2014(1) ....................................
APPLICATIONS
(1) AXTC-LN29Only for models equipped with NAV. If not equipped with NAV use:
(2) Only for models equipped with a monochrome display radio.
3
REV. 4/10/23 INSTAXTC-LN44

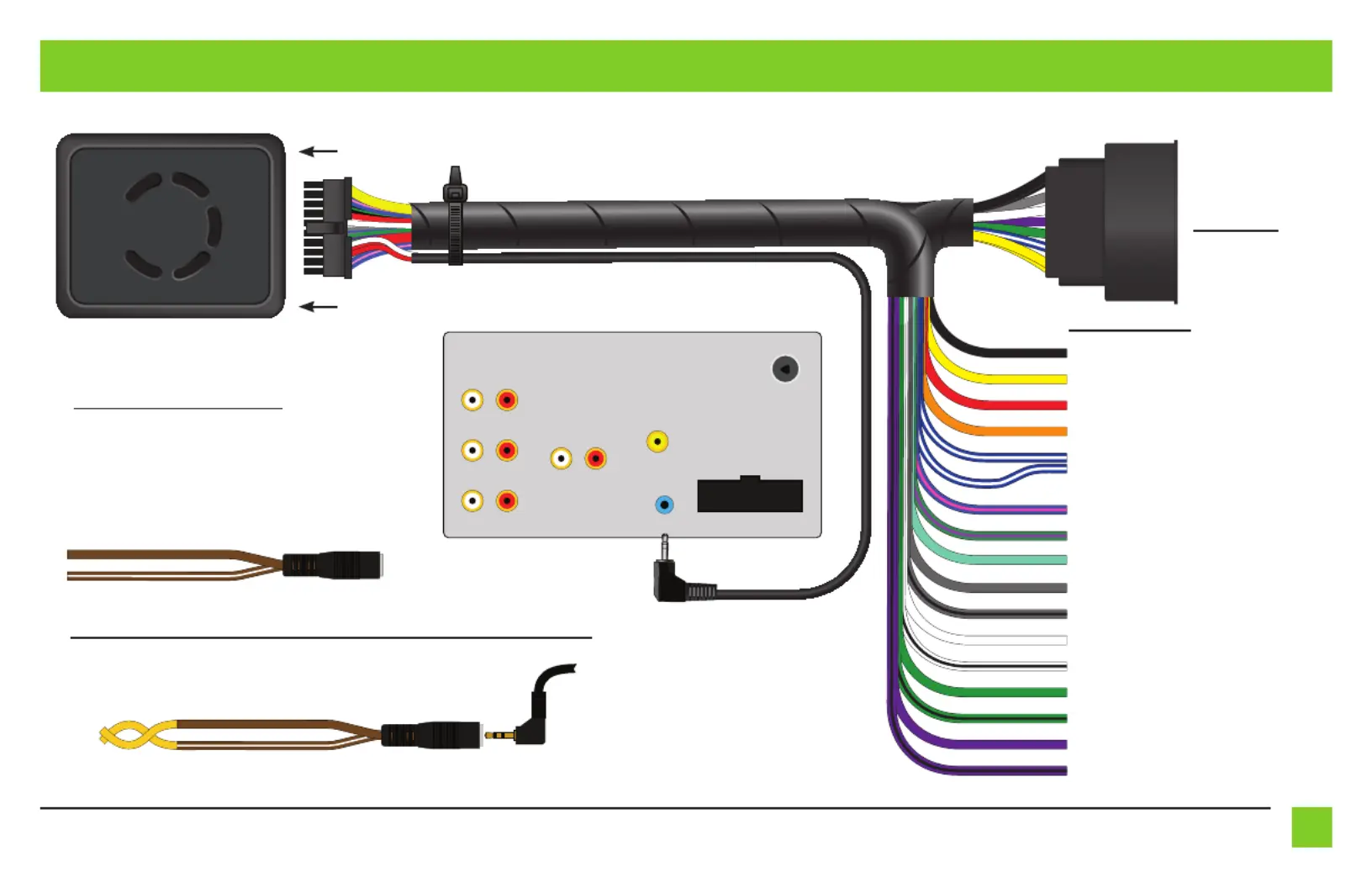

CONNECTIONS
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector
2) 3.5mm adapter AXTC-LN44 HarnessConnect the to the 3.5mm jack from the
3) AXTC-LN44 Program the per the instructions on page 3. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Fron t
Rear
Sub
AUX-IN
Rear View
SWC
Radio Connections
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Vehicle
Connector
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
