AXTC-LN31
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/20/23 INSTAXTC-LN31
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
ATTENTION:
With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE:
Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections 2 ............................................................
Programming 3 .........................................................
Troubleshooting.....................................................4
GM Data Interface with SWC 2019-Up
APPLICATIONS
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed
sense outputs
• Retains warning chimes
through an onboard speaker
• Retains the factory backup
camera
• Retains audio controls on the
steering wheel
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
Chevrolet
Camaro ** 2019-Up(1) ................
Cheyenne ** 2019-2021(2) .........
Colorado 2019-Up(1) ..................
Cruze 2019 ....................................
Equinox ** 2019-Up(1) ...............
Malibu ** 2019-Up(1) ..................
Chevrolet (Cont)
Silverado ** 2019-2021(1) ..........
Sonic...............................2019-Up
Spark 2019-Up ..............................
GMC
Canyon 2019-Up(1) .....................
Sierra 1500 **........2019-2021(1)
Terrain ** 2019-Up(1) .................

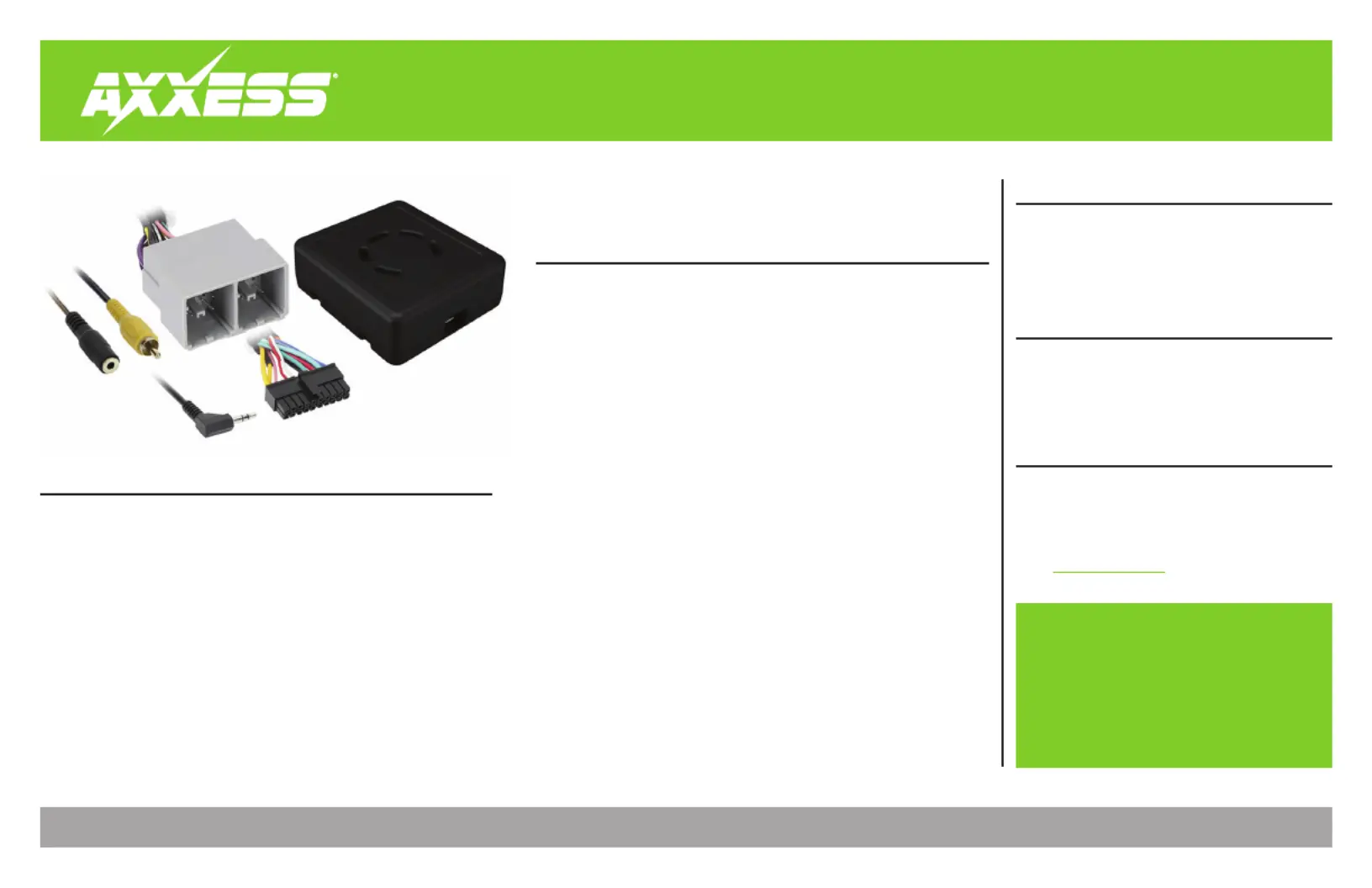

• AXTC-LN31 interface
• AXTC-LN31 harness
• 3.5mm adapter
(1) IOR code radio †
** For extension, use AXEXH-GM31
† The radio code can be found in the Service Parts Identification Label located:
Glove box – Equinox/Terrain
QR only (see note) - Camaro/Canyon/Colorado/Malibu/Sierra/Silverado
Note: Newer model GM vehicles are transitioning to a QR style label. If the Ser-
vice Parts Identification Label is not located where listed, reference the Vehicle
Certification Label on the inside of the driver’s door opening for the QR code.
2

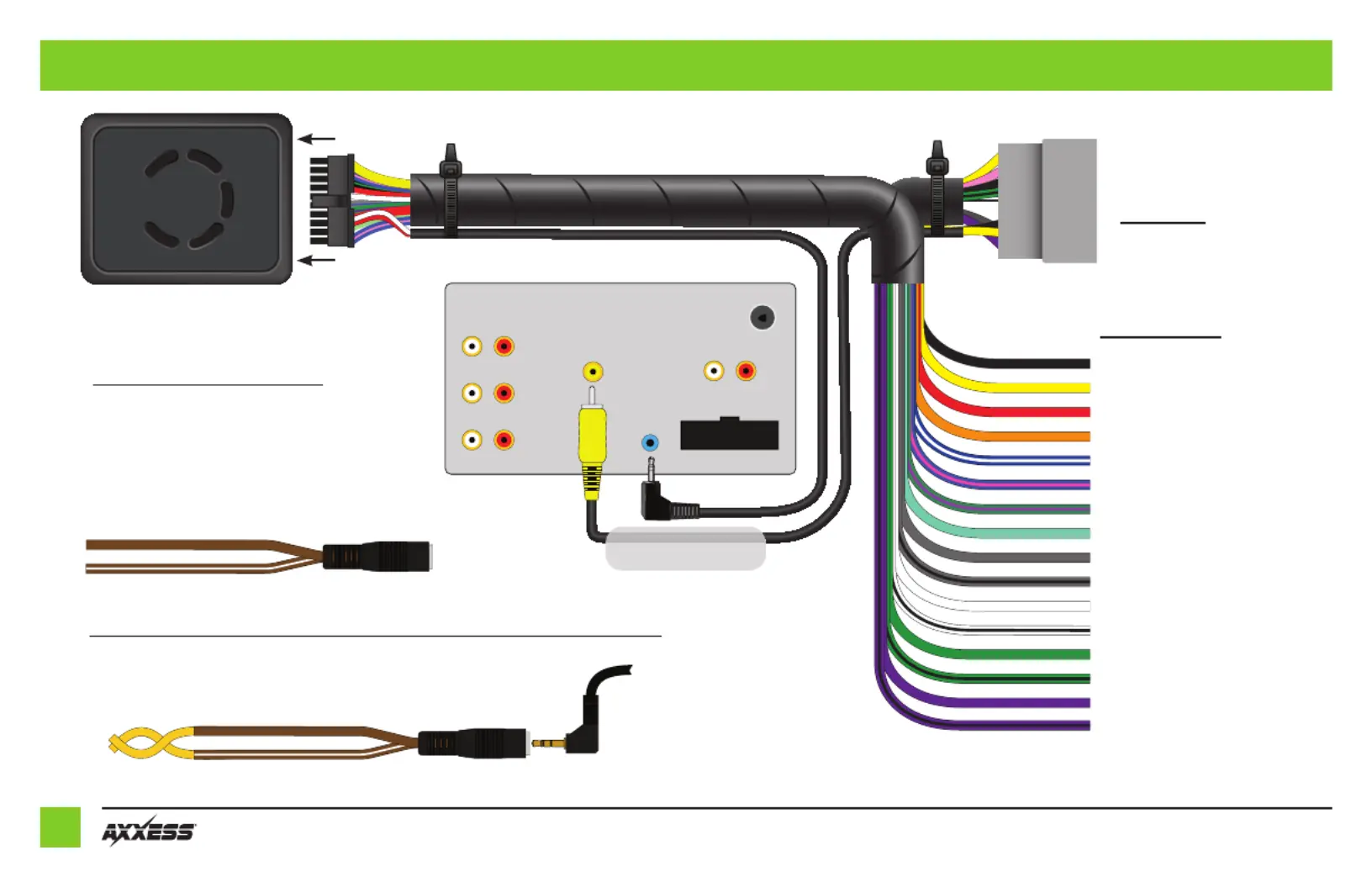

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear ewVi
SWC
Yellow RCA - Rear View
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with C wire):SW y 1 - Br nKe (Gray) ow
Kenwood / JVC (with SWC wire): Blue/Yellow - Br now
XITE: 2 - Br nSWC- ow
Key-A or 1 - Br n SWC- ow
Key-B or 2 - Br n/WhiteSWC- ow
* After programming, assign C buttons within dio menuSW ra
Universal
Radio*
{
1) 3.5mm adapter Br n Br From the , tie the ow and own/White wires together with tape or connector
2) 3.5mm adapter -LN31 HarnessConnect the to the 3.5mm jack from the AXTC
3) Program the per the instructions on page 3. DisregarAXTC-LN31 d steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White- Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Vehicle
Connector
3
REV.3/20/23 INSTAXTC-LN31
Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the to the , and then toAXTC-LN31 harness AXTC-LN31 interface
the wiring harness in the vehicle.
Locate the button on the the steering wheel. Program the Volume Up
interface by tapping the button until the LED stops flashing.Volume Up
*Only applicable if vehicle came with steering wheel controls
The LED will flash & while the interface programs the radio to Green Red
the steering wheel controls. Once programmed, the LED will go out, then
produce a pattern which will identify the radio type installed. Refer to
the section under for radio typesRadio LED Feedback Troubleshooting
.
*Only applicable if vehicle came with steering wheel controls

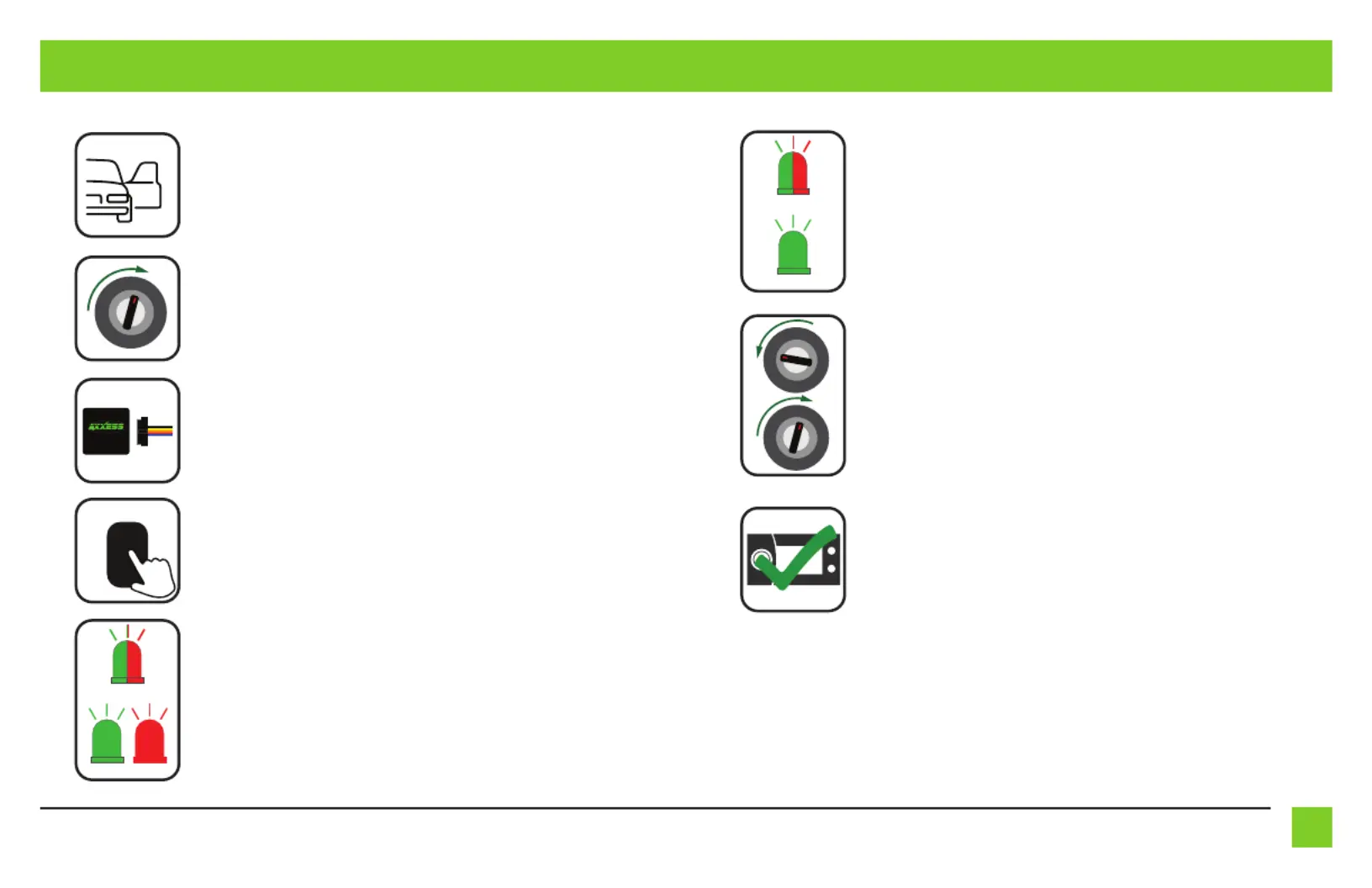

PROGRAMMING
1.
2.
3.
4.*
5.*
O
F
F
A
C
C
O
N
S
T
A
R
T
VOL
+
Tap Volume Up
Gr Deen & Red LE
Gr Deen or Red LE
The LED will go out, then once again quickly flash & while Green Red
the interface programs itself to the vehicle. Once programmed, the LED
will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
