AXTC-LN30
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/14/23 INSTAXTC-LN30
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
ATTENTION:
With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE:
Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
GM Data Interface with SWC 2019-Up
APPLICATIONS
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed sense
outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
Chevrolet
Blazer ** .............................2019-Up(1)
Camaro ** ..........................2019-Up(2)
Cheyenne ** ....................2019-2021(2)
Colorado ...........................2019-Up(2)
Equinox ** .........................2019-Up(2)
Malibu ** ...........................2019-Up(3)
Silverado ** .....................2019-2021(2)
Volt ................................................ 2019
GMC
Acadia ** ...........................2019-Up(4)
Canyon ..............................2019-Up(2)
Sierra 1500 ** ..................2019-2021(2)
Terrain ** ...........................2019-Up(5)
Cadillac
XT4...........................................2019-Up

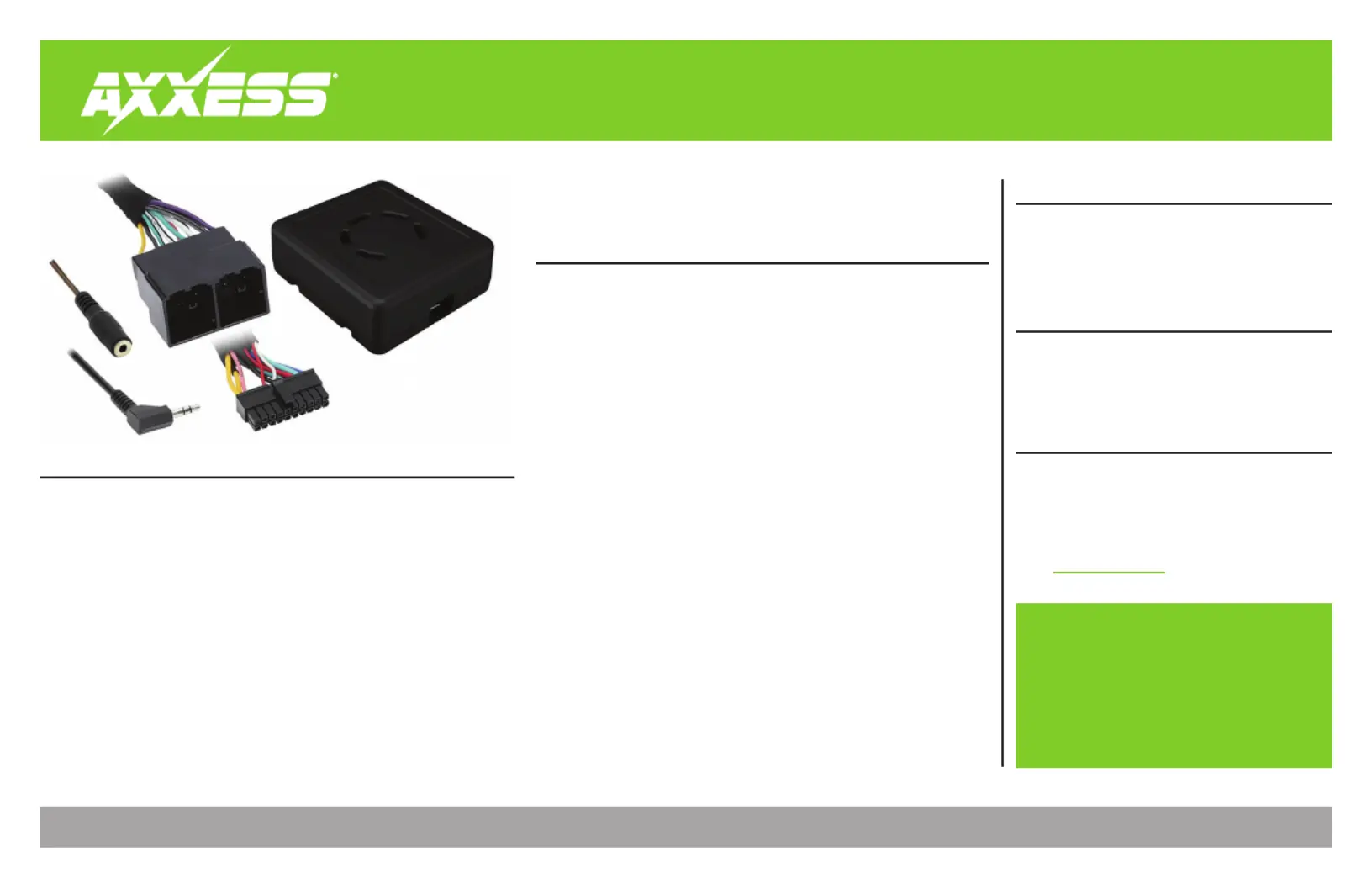

• AXTC-LN30 interface
• AXTC-LN30 harness
• 3.5mm adapter
(1) IOT or IOU code radio †
(2) IOS or IOT code radio †
(3) IOU or IOS code radio †
(4) IOU code radio †
(5) IOS, IOT, or IOU code radio †
** For extension, use AXEXH-GM30
† The radio code can be found in the located:Service Parts Identification Label
Glove box – Equinox/Terrain
QR only (see note) - Acadia/Blazer/Camaro/Canyon/Colorado/Malibu/Sierra/Silverado
Note: Newer model GM vehicles are transitioning to a QR style label. If the Service Parts
Identification Label is not located where listed, reference the Vehicle Certification Label
on the inside of the driver’s door opening for the QR code.
2

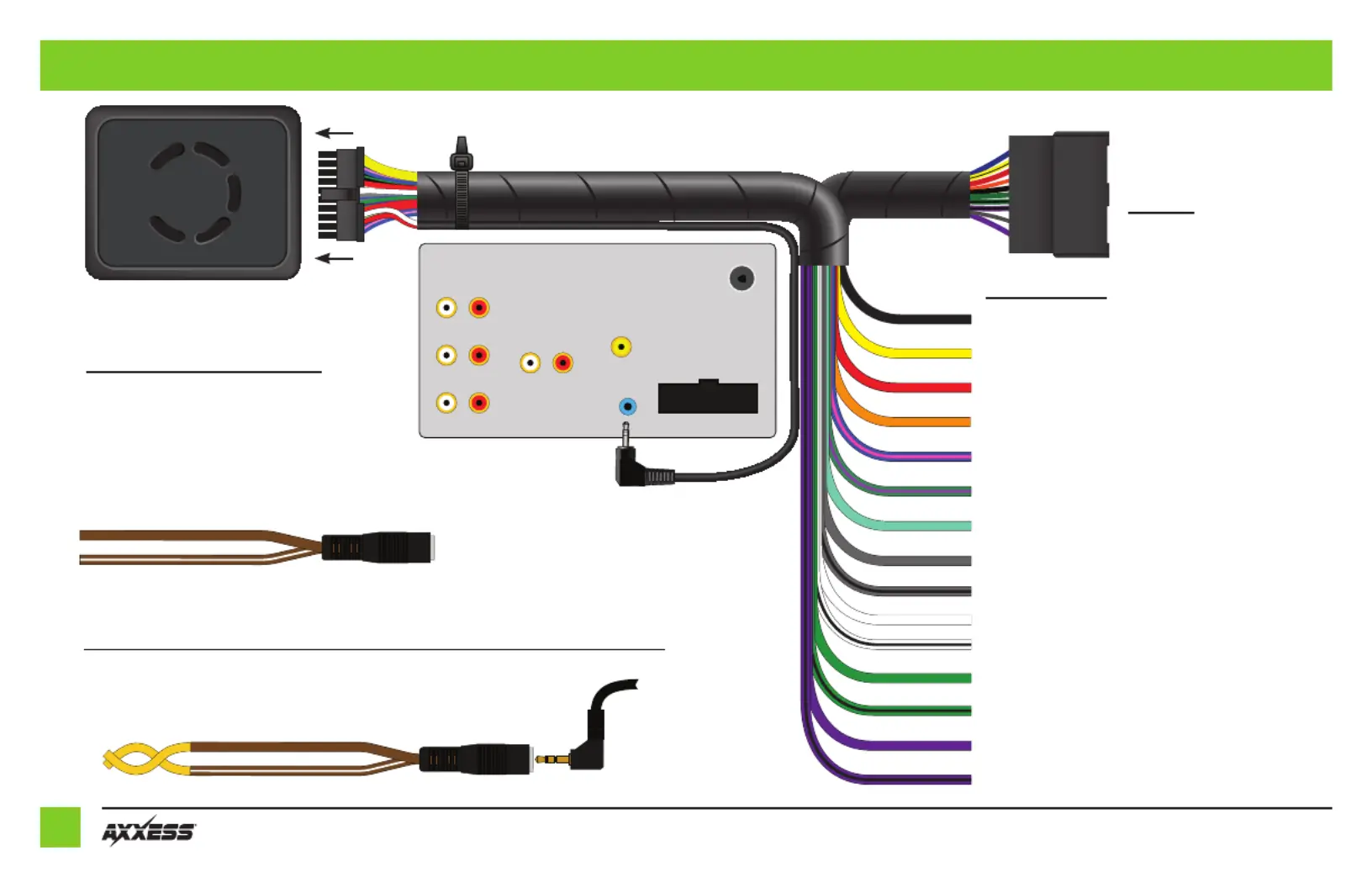

CONNECTIONS
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with C wire):SW y 1 - Br nKe (Gray) ow
Kenwood / JVC (with SWC wire): Blue/Yellow - Br now
XITE: 2 - Br nSWC- ow
Key-A or 1 - Br n SWC- ow
Key-B or 2 - Br n/WhiteSWC- ow
* After pr
ogramming, assign C buttons within dio menuSW ra
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Br n Br From the , tie the ow and own/White wir res together with tape or connecto
2) 3.5mm adapter -LN30 HarnessConnect the to the 3.5mm jack from the AXTC
3) Program the per the instructions on page 3. DisregarAXTC-LN30 d steps 4 & 5
Front
Rear
Sub
AUX-IN
Rear ewVi
SWC
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Vehicle
Connector
3
REV. 3/14/23 INSTAXTC-LN30

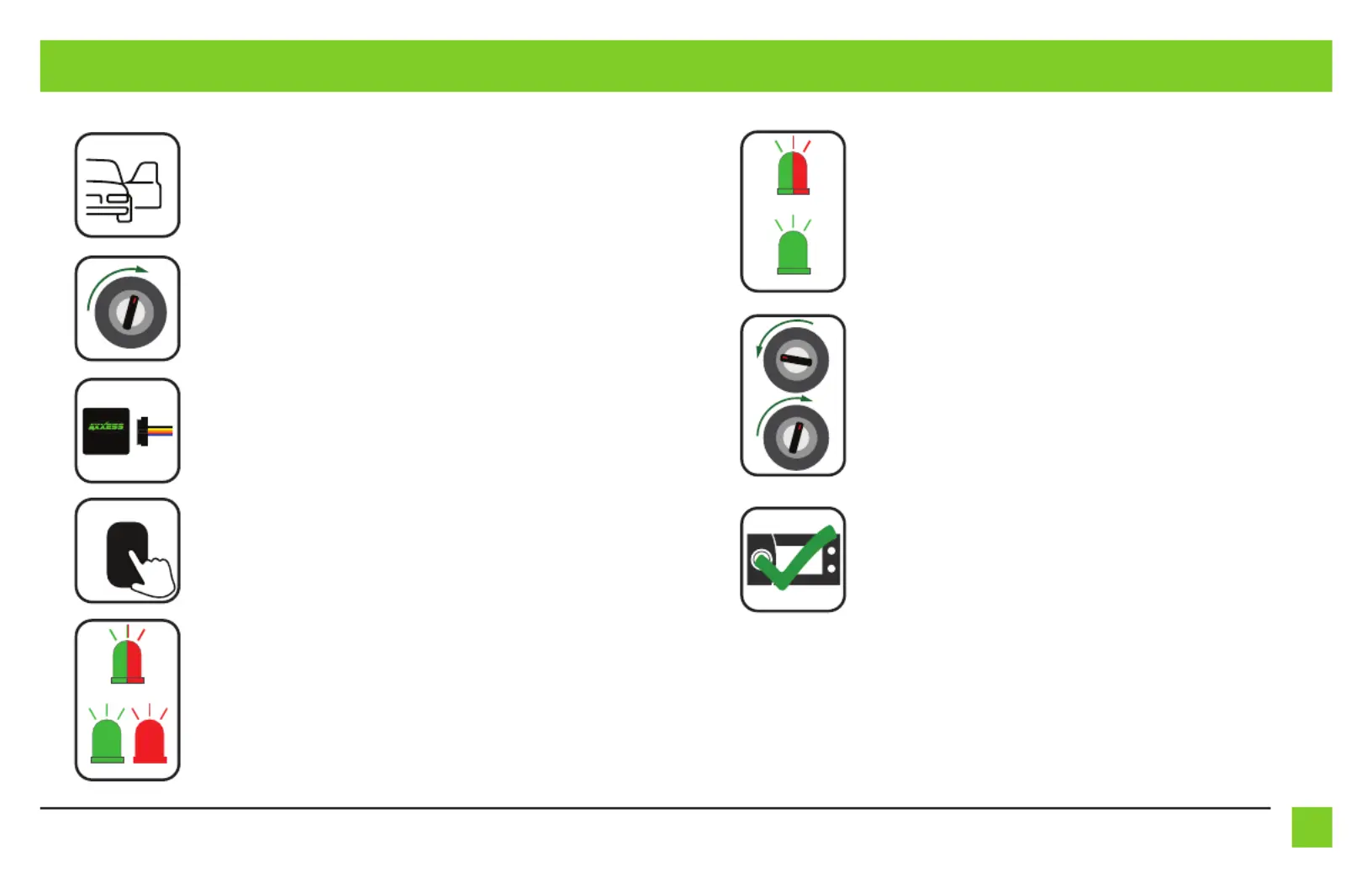

Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the AXTC-LN30 harness AXTC-LN30 interface to the , and then to
the wiring harness in the vehicle.
Locate the Volume Up button on the the steering wheel. Program the
interface by tapping the Volume Up button until the LED stops flashing.
*Only applicable if vehicle came with steering wheel controls
The LED will flash & while the interface programs the radio to Green Red
the steering wheel controls. Once programmed, the LED will go out, then
produce a pattern which will identify the radio type installed. Refer to
the section under Radio LED Feedback Troubleshooting for radio types
.
*Only applicable if vehicle came with steering wheel controls.
PROGRAMMING
1.
2.
3.
4.*
5.*
O
F
F
A
C
C
O
N
S
T
A
R
T
VOL
+
Tap Volume Up
Gr Deen & Red LE
Gr Deen or Red LE
The LED will go out, then once again quickly flash & while Green Red
the interface programs itself to the vehicle. Once programmed, the LED
will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
