AXTC-LN29
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/31/23 INSTAXTC-LN29
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections 3 ............................................................
Programming 4 .........................................................
Troubleshooting.....................................................5
GM Data Interface with SWC 2006-Up
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed
sense outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
• AXTC-LN29 interface
• AXTC-LN29 harness
• 3.5mm adapter
APPLICATIONS
See inside front cover
Product Info
2
Buick
Enclave 2008-2017 ............................................
Lucerne 2006-2011 ............................................
Cadillac
DTS 2006-2011(3) .............................................
Escalade 2007-2014(3) ....................................
Escalade ESV 2007-2011(3) .............................
Escalade EXT 2007-2014(3) .............................
SRX 2007-2009(3) .............................................
Chevrolet
Avalanche 2007-2013(2) .................................
Captiva Sport 2012-2015(2) ............................
Equinox 2007-2009 ............................................
Express 2008-Up(1) ......................................
Impala 2006-2013 ..............................................
Impala Limited 2014-2016 ................................
Monte Carlo 2006-2007 .....................................
Chevrolet (Cont)
Silverado 2500 HD 2014(2) ....................
Silverado 3500 HD 2014(2) ....................
Silverado (new body) 2007-2013 (2) ..............
Suburban ................................... 2007-2014(2)
Tahoe 2007-2014(2) .........................................
Traverse 2009-2017 ...........................................
GMC
Acadia 2007-2016 ..............................................
Acadia Limited 2017 ................................
Savana 2008-Up(1) .......................................
Sierra 2500 HD 2014(2) ..........................
Sierra 3500 2014(2) ................................
Sierra (new body) 2007-2013 (2) ....................
Yukon 2007-2014(2) ........................................
Yukon XL 2007-2014(2) ...................................
Hummer
H2 2008-2009(3) ...............................................
Pontiac
Torrent 2007-2009 .............................................
Saturn
Outlook 2007-2010 ............................................
Vue .................................................. 2008-2010
Suzuki
XL-7 .................................................. 2007-2009
APPLICATIONS
(1) AXTC-LN44. For 2013-2015 models equipped with NAV use:
(2) AXTC-LN44. For 2012-Up models equipped with NAV use:
(3) These vehicles are standard for an amp and must be bypassed.
3
REV. 3/31/23 INSTAXTC-LN29

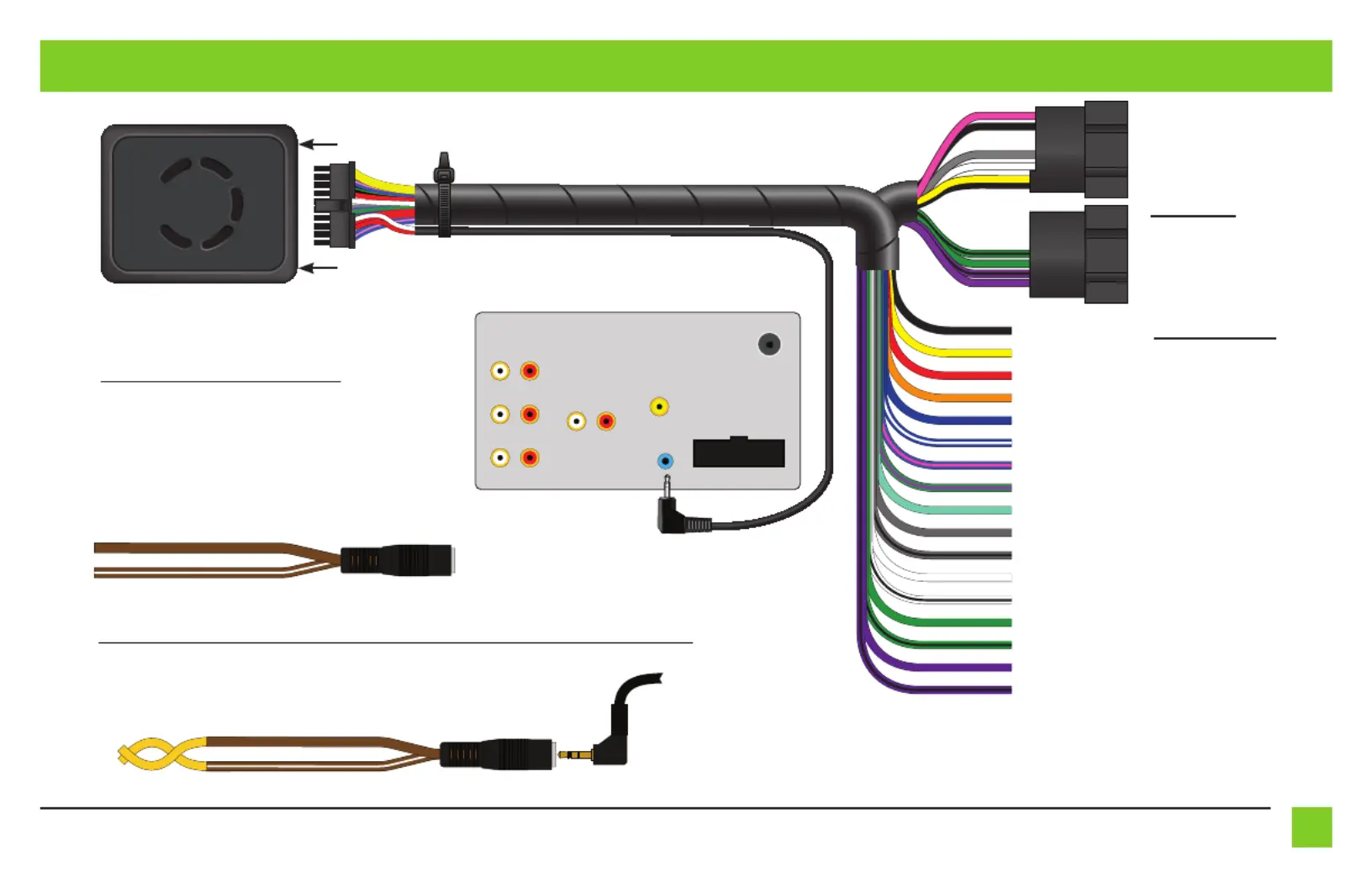

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector
2) 3.5mm adapter AXTC-LN29 HarnessConnect the to the 3.5mm jack from the
3) AXTC-LN29 Program the per the instructions on page 4. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue - Power antenna
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Vehicle
Connectors
Radio Connections
