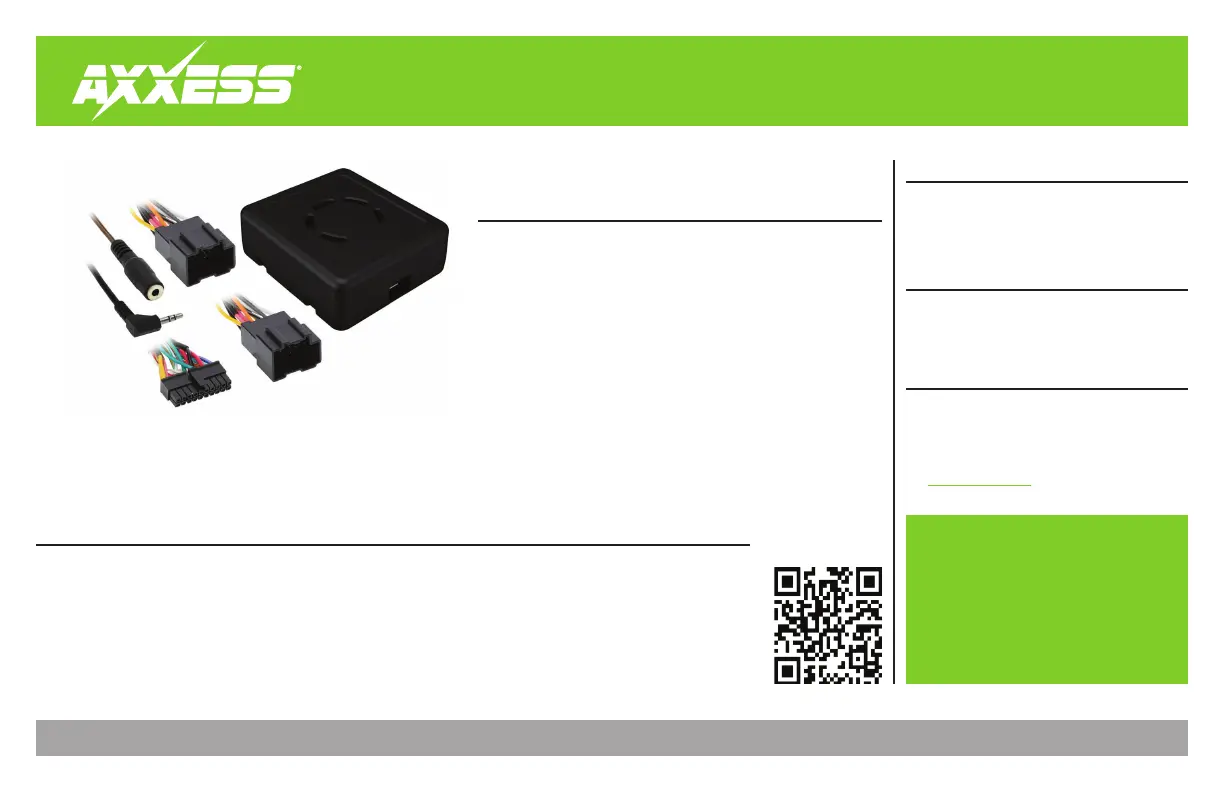

AXTC-LN11
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 4/7/23 INSTAXTC-LN11
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections 2 ............................................................
Programming 3 .........................................................
Troubleshooting.....................................................4
GM Data Interface with SWC 2006-2012
APPLICATIONS
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed sense
outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
Chevrolet
Cobalt 2007-2010 ............
HHR 2006-2011 ................
Malibu 2008-2012 ...........
Pontiac
G5 2007-2009 .................
G6 2009 (1) .....................
G6 2010 ............................
Solstice 2006-2009 .........
Saturn
Aura 2007-2009 .............
Sky................2007-2009
• AXTC-LN11 interface
• AXTC-LN11 harness
• 3.5mm adapter
(1) 5th digit of VIN must be a J, K, or L
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
2

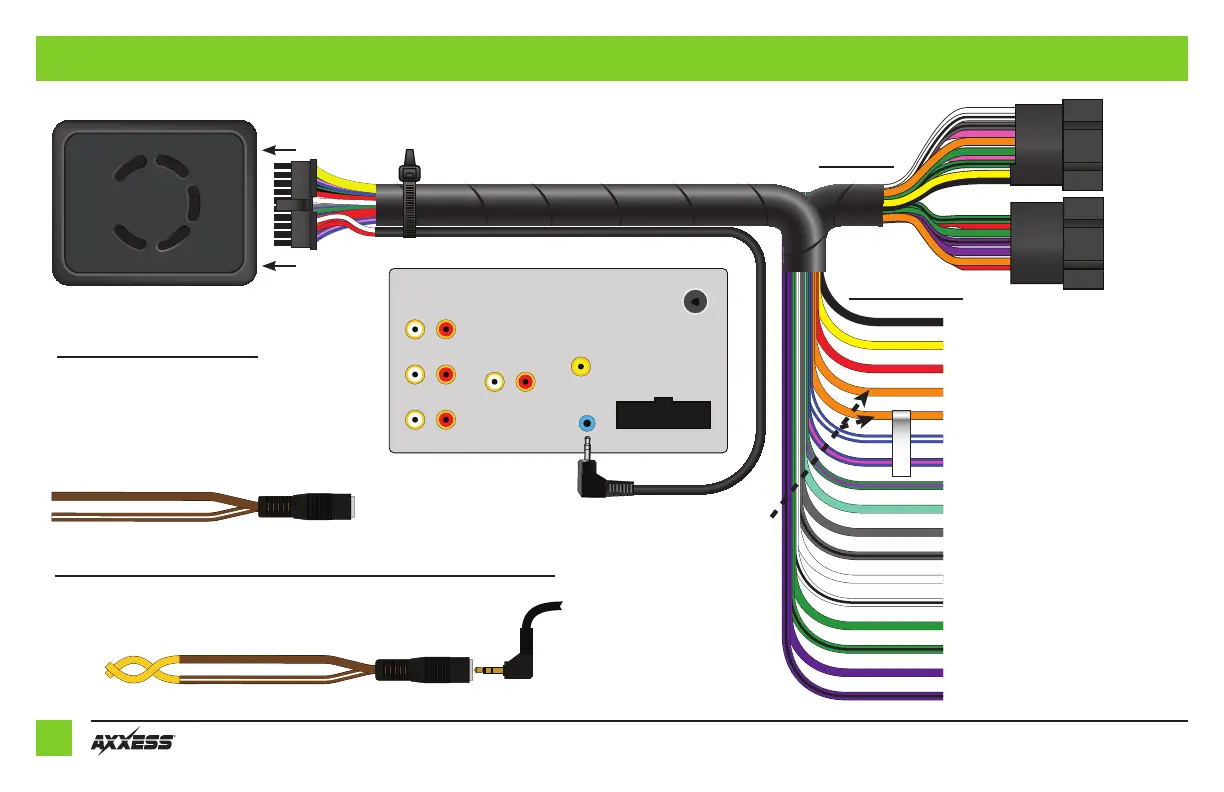

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
IFACE ILL
* Only use one wire! IMPORTANT: Orange
If either one of the wires on the Orange
main harnesses are populated on the
factory side, use the unlabeled Orange
wire. If not populated, use the Orange
wire labeled IFACE ILL.
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector
2) 3.5mm adapter AXTC-LN11 HarnessConnect the to the 3.5mm jack from the
3) AXTC-LN11 Program the per the instructions on pages 4 and 5. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination*
Orange (labeled IFACE ILL) - Illumination *
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Vehicle
Connectors
Reset Button
LED
Radio Connections
3
REV. 4/7/23 INSTAXTC-LN11
Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the to the , and then toAXTC-LN11 harness AXTC-LN11 interface
the wiring harness in the vehicle.
Locate the button on the the steering wheel. Program the Volume Up
interface by holding the button until the LED stops flashing.Volume Up
*Only applicable if vehicle came with steering wheel controls
The LED will flash & while the interface programs the radio to Green Red
the steering wheel controls. Once programmed, the LED will go out, then
produce a pattern which will identify the radio type installed. Refer to
the section under for radio typesRadio LED Feedback Troubleshooting
.
*Only applicable if vehicle came with steering wheel controls
PROGRAMMING
1.
2.
3.
*4.
*5.
O
F
F
A
C
C
O
N
S
T
A
R
T
VOL
+
Volume Up
Gr Deen & Red LE
Gr Deen or Red LE
The LED will go out, then once again quickly flash & while Green Red
the interface programs itself to the vehicle. Once programmed, the LED
will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
