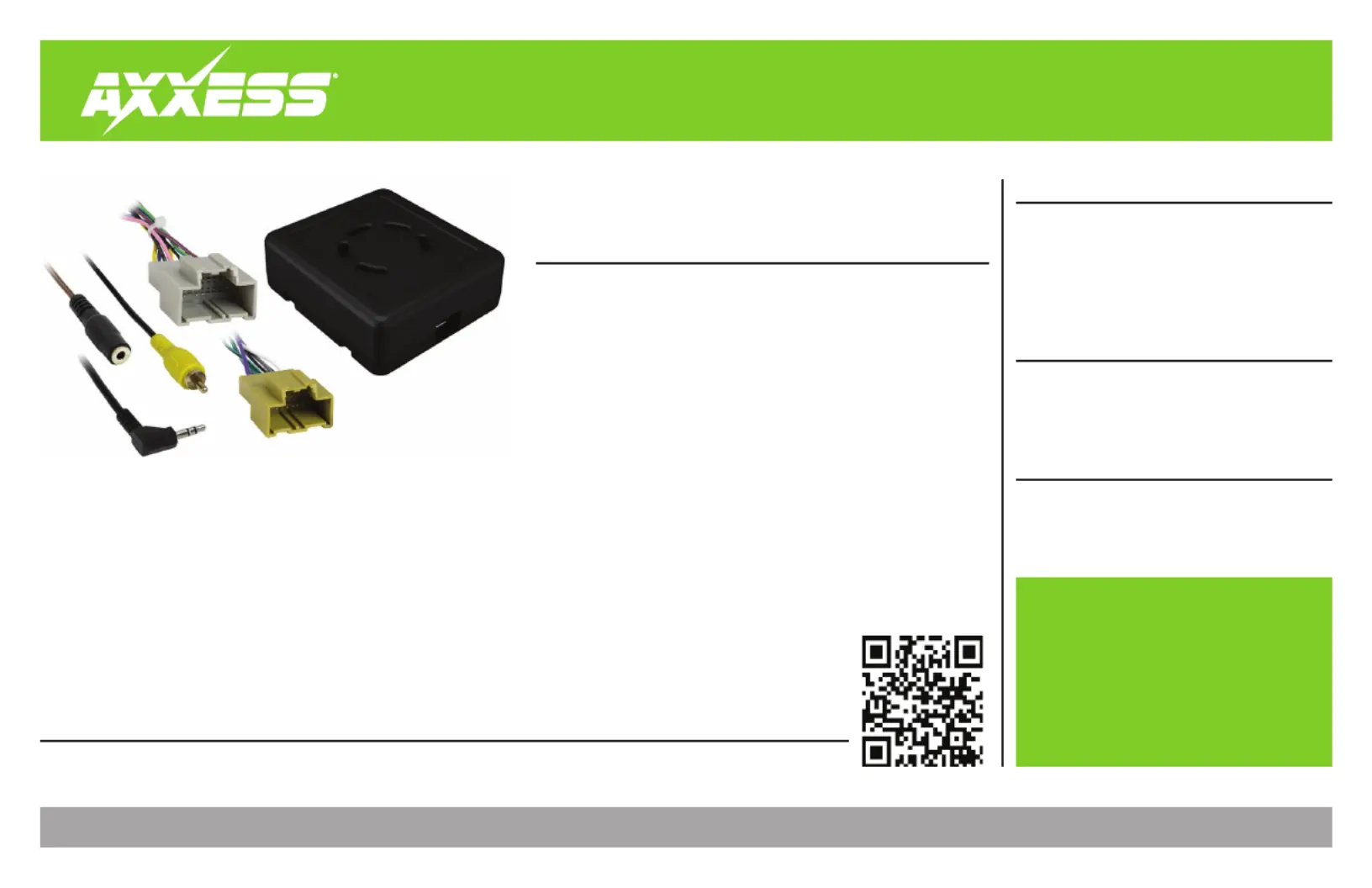

AXTC-LN10
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 4/3/23 INSTAXTC-LN10
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections 3 ............................................................
Programming 4 .........................................................
Troubleshooting.....................................................5
GM Data Interface with SWC 2016-2019
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed sense
outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
• AXTC-LN10 interface
• AXTC-LN10 harness
• 3.5mm adapter
APPLICATIONS
See inside front cover
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
2
Chevrolet
Camaro 2016-2018(1) .............................
Colorado 2017-2018(1) ...........................
Cruze 2016-2018(2) .................................
Cruze Hatchback 2016-2018(2) ..............
Equinox 2018(1) ......................................
Malibu 2016-2018(2) ...............................
Silverado 1500 LD 2019(1) ......................
Silverado 1500 2016-2018(1) ..................
Silverado 2500 HD 2016-2019(1) ...........
Silverado 3500 HD 2016-2019(1) ...........
Trax 2017(2) ............................................
GMC
Acadia 2017-2018(1) ...............................
Canyon 2017-2018(1) ..............................
Sierra 1500 Limited 2019(1) ...................
Sierra 1500 2016-2018(1) ........................
Sierra 2500 HD 2016-2019(1) .................
Sierra 3500 HD 2016-2019(1) .................
APPLICATIONS
(1) IOB code radio †
(2) IOA code radio †
† The IOA/IOB code can be found in the located:Service Parts Identification Label
• Glove box – Acadia/Canyon/Colorado/Cruze/Equinox/Silverado/Sierra
• Rear compartment floor – Camaro/Malibu
• Underneath spare tire – Trax
Note: Service Parts Newer model GM vehicles are transitioning to a QR style label. If the
Identification Label
is not located where listed, reference the Vehicle Certification Label
on the inside of the driver’s door opening for the QR code.
3
REV. 4/3/23 INSTAXTC-LN10
Front
Rear
Sub
AUX-IN
Rear View
SWC
Yellow RCA - Rear View
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector
2) 3.5mm adapter AXTC-LN10 HarnessConnect the to the 3.5mm jack from the
3) AXTC-LN10 Program the per the instructions on page 4. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls

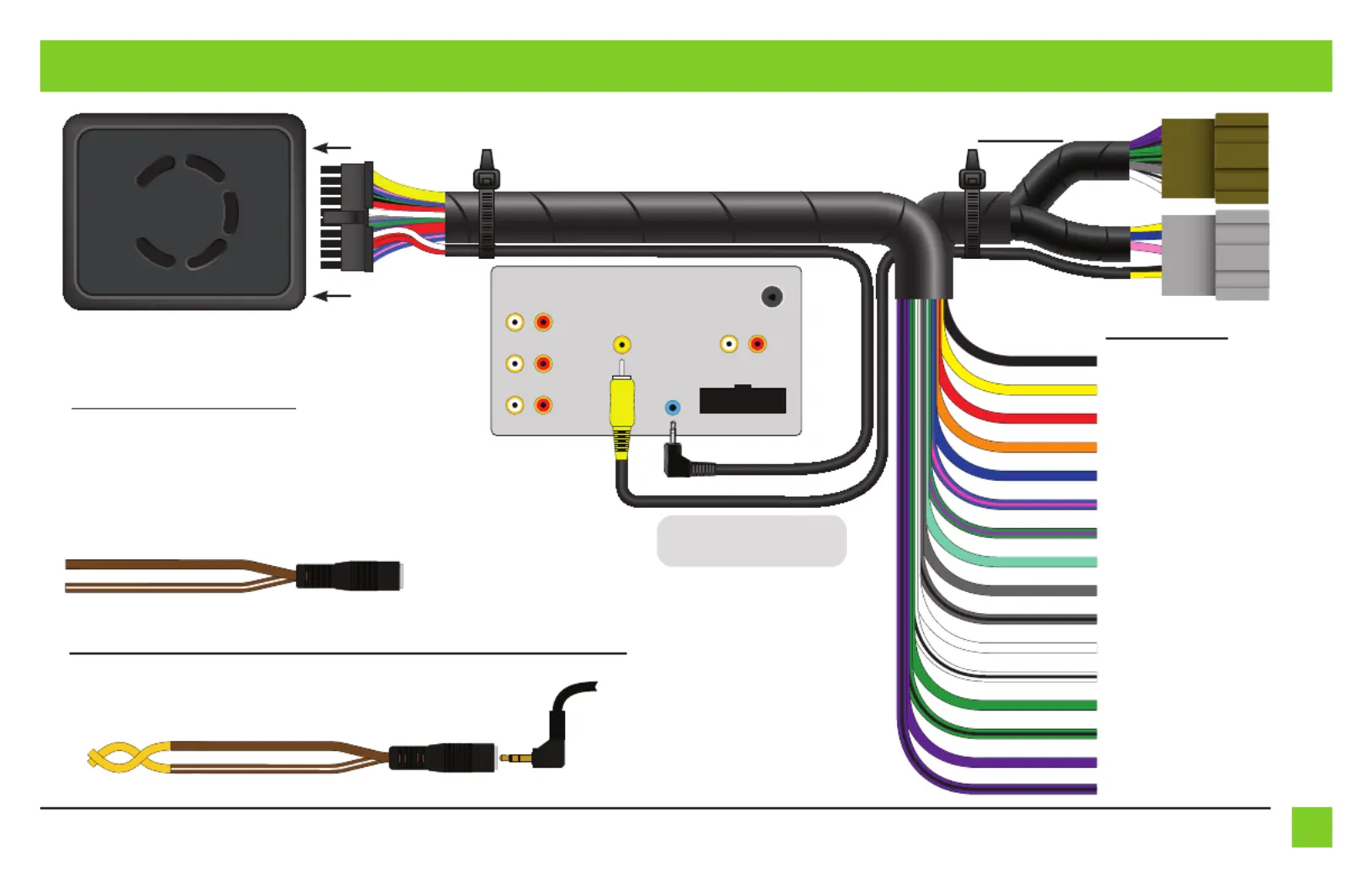

CONNECTIONS
Aftermarket Radio
(radio’s features may vary) Radio Connections
Reset Button
LED
Vehicle
Connectors
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
