AXTC-HN1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 6/6/24 INSTAXTC-HN1
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections 2 ............................................................
Programming 3 .........................................................
Troubleshooting.....................................................4
Honda SWC (Steering Wheel Control)
and Data Interface 2016-2021
APPLICATIONS
• Provides illumination, parking
brake, reverse, and speed
sense outputs
• Retains the factory backup
camera, and also includes an
12-volt to 6-volt step-down
converter (AXCSD-6V)
• Retains audio controls on the
steering wheel
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Micro-B USB updatable
Honda
Civic (Coupe, Sedan) LX, LX-P 2016-2021 .........................................................
Civic (Hatchback) LX, Sport 2017-2021 .............................................................
Fit 2018-2020 ....................................................................................................

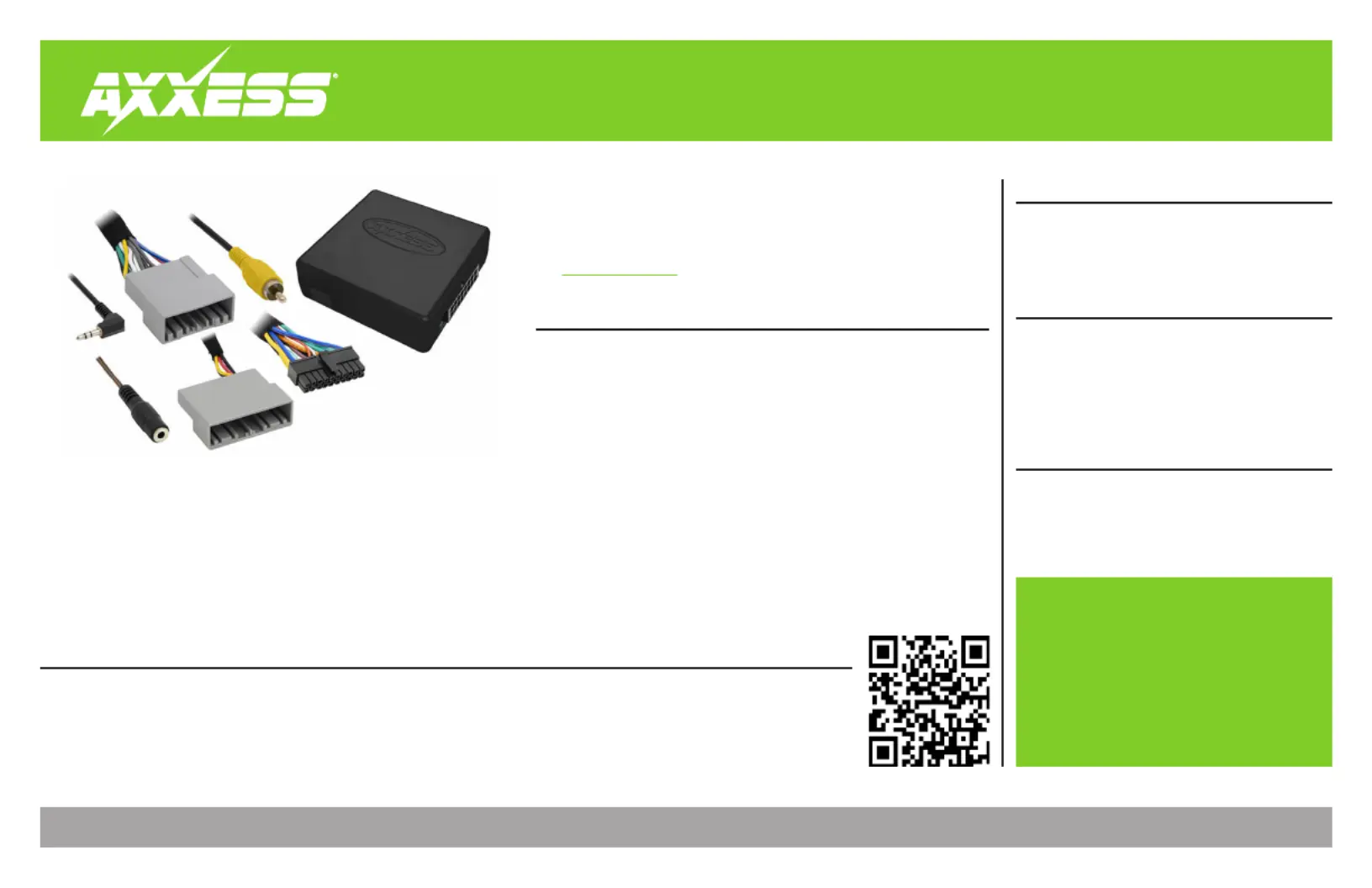

INTERFACE COMPONENTS
• AXTC-HN1 interface
• AXTC-HN1 harness
• 3.5mm adapter
•
AXCSD-6V
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit for more detailed information about the product and up-to-AxxessInterfaces.com
date vehicle specific applications.
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
LD-AFDI-5V *
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Blue/White - Amp turn-on
Orange - Illumination
Yellow - Battery power
AXTC-HN1
E1
E2
E
Red & Blue/White - Accessory power
Red Blue/Red (CAMERA POWER 6V) & - Camera Power
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together
with tape or connector
2) 3.5mm adapter AXTC-HN1 HarnessConnect the to the 3.5mm jack from the
3) AXTC-HN1 Program the per the instructions on page 3. Disregard steps 4 & 5

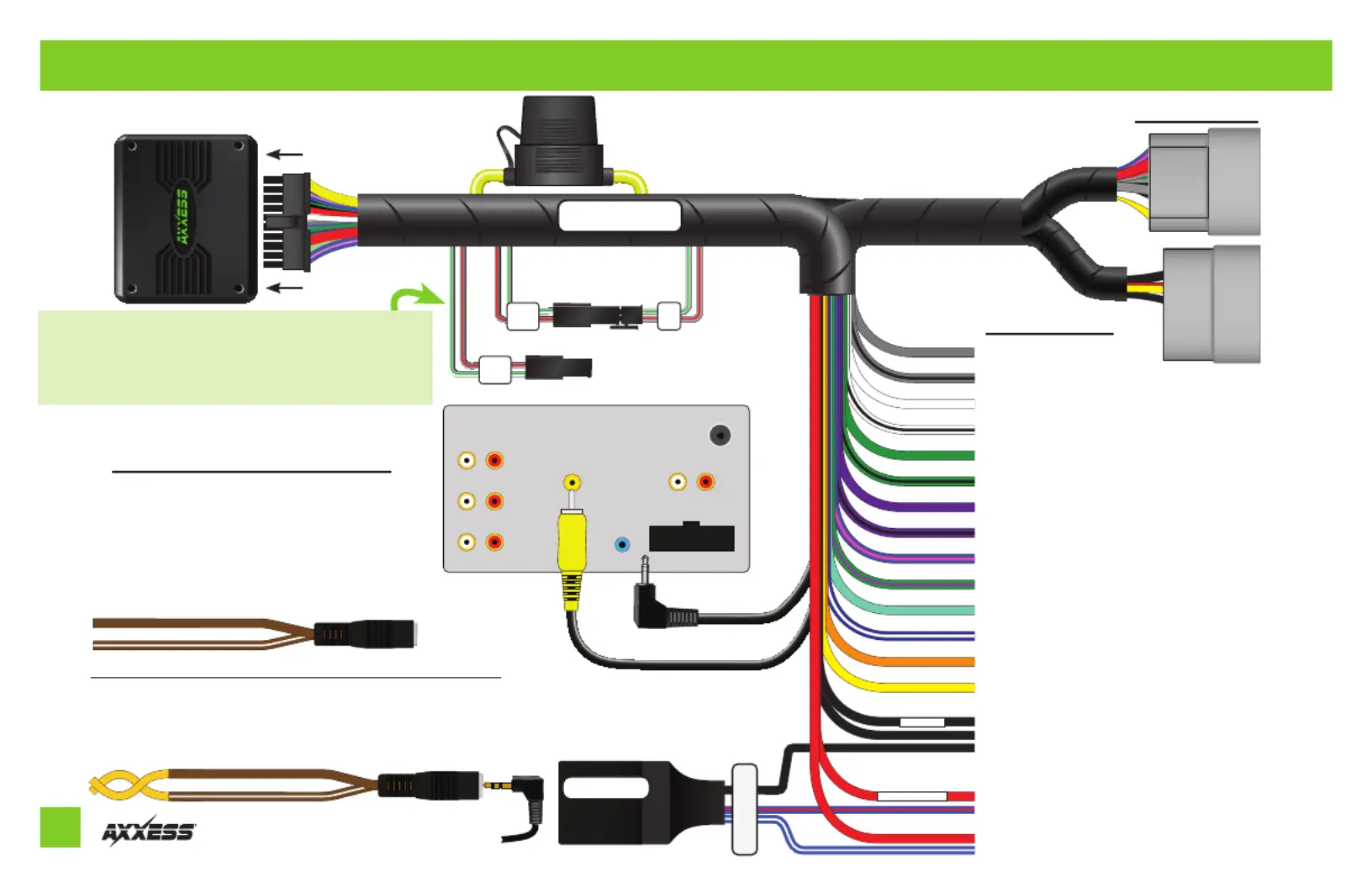

VEHICLE CONNECTORS
RADIO CONNECTIONS
Black & Black X2 - Ground
CAMERA POWER 6V
SWC GROUND
(Connect All Grounds Together)
*Harness #
AXCSD-6V
2
NOTE: Steering Wheel Controls If the vehicle’s do not function after the
AXTC-HN1 E1 has completed its programing sequence, unplug connector
from connector and connect to . Once completed, hit the reset button E E2 E
on the interface to restart the programming sequence and test. Refer to LED
Feedback Chart for programming information if needed.
CONNECTIONS
3
REV. 6/6/24 INSTAXTC-HN1

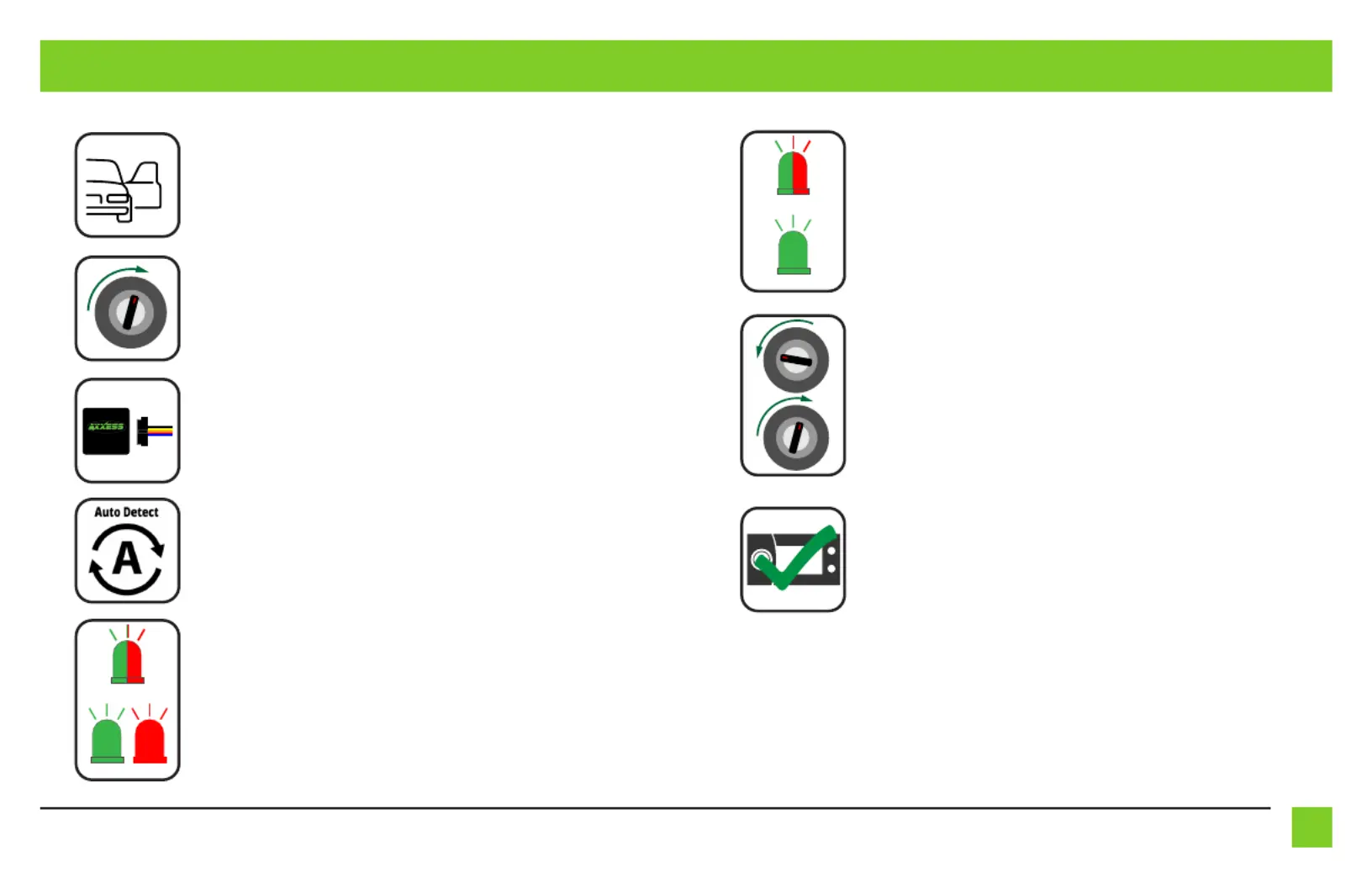

Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the to the , and then toAXTC-HN1 harness AXTC-HN1 interface
the wiring harness in the vehicle.
The will enter auto-detect mode. AXTC No additional action is required.
The LED will flash & while the interface programs the radio to Green Red
the steering wheel controls. Once programmed, the LED will go out, then
produce a pattern which will identify the radio type installed. Refer to
the section under for radio typesRadio LED Feedback Troubleshooting
.
*Only applicable if vehicle came with steering wheel controls
PROGRAMMING
1.
2.
3.
4.
5*.
O
F
F
A
C
C
O
N
S
T
A
R
T
Gr Deen & Red LE
Gr Deen or Red LE
The LED will go out, then once again quickly flash & while Green Red
the interface programs itself to the vehicle. Once programmed, the LED
will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
Note: Steering Wheel Controls If the vehicle’s do not function after the
AXTC-HN1 has completed its programing sequence, unplug connector
E1 E E2 E from connector and connect to . Once completed, hit the reset
button on the interface to restart the programming sequence and test.
Refer to for programming information if needed.LED Feedback Chart
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
