AXTC-FD3
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/6/23 INSTAXTC-FD3
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
Ford SWC (Steering Wheel Control)
and Data Interface 2019-Up
APPLICATIONS
• Provides accessory power
(10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed for non-amplified
models only
• Designed to be compatible
with all major radio brands
•
Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection
or interface removal (non
volatile memory)
• Provides illumination output
• Micro-B USB updatable
Ford
E Series ...........................2021-Up
Eco Sport ........................2020-Up
Escape ............................2020-Up
F250/F350/F450/F550 ...2020-Up
Transit ............................2020-Up
Transit Connect .............. 2019-Up

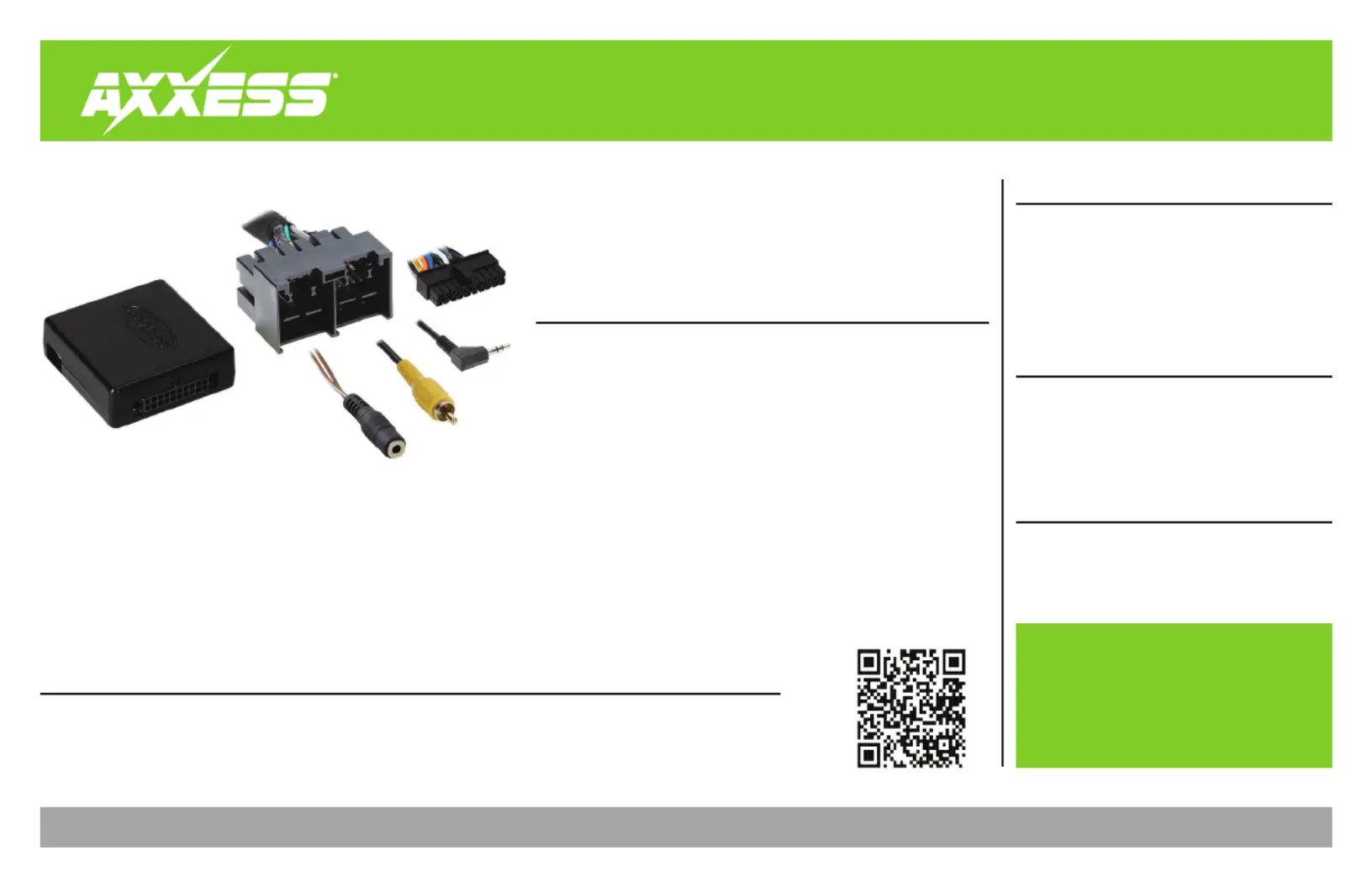

INTERFACE COMPONENTS
• AXTC-FD3 interface
• AXTC-FD3 harness
• 3.5mm adapter
Note: The AXTC-FD3 does not retain SYNC.
2

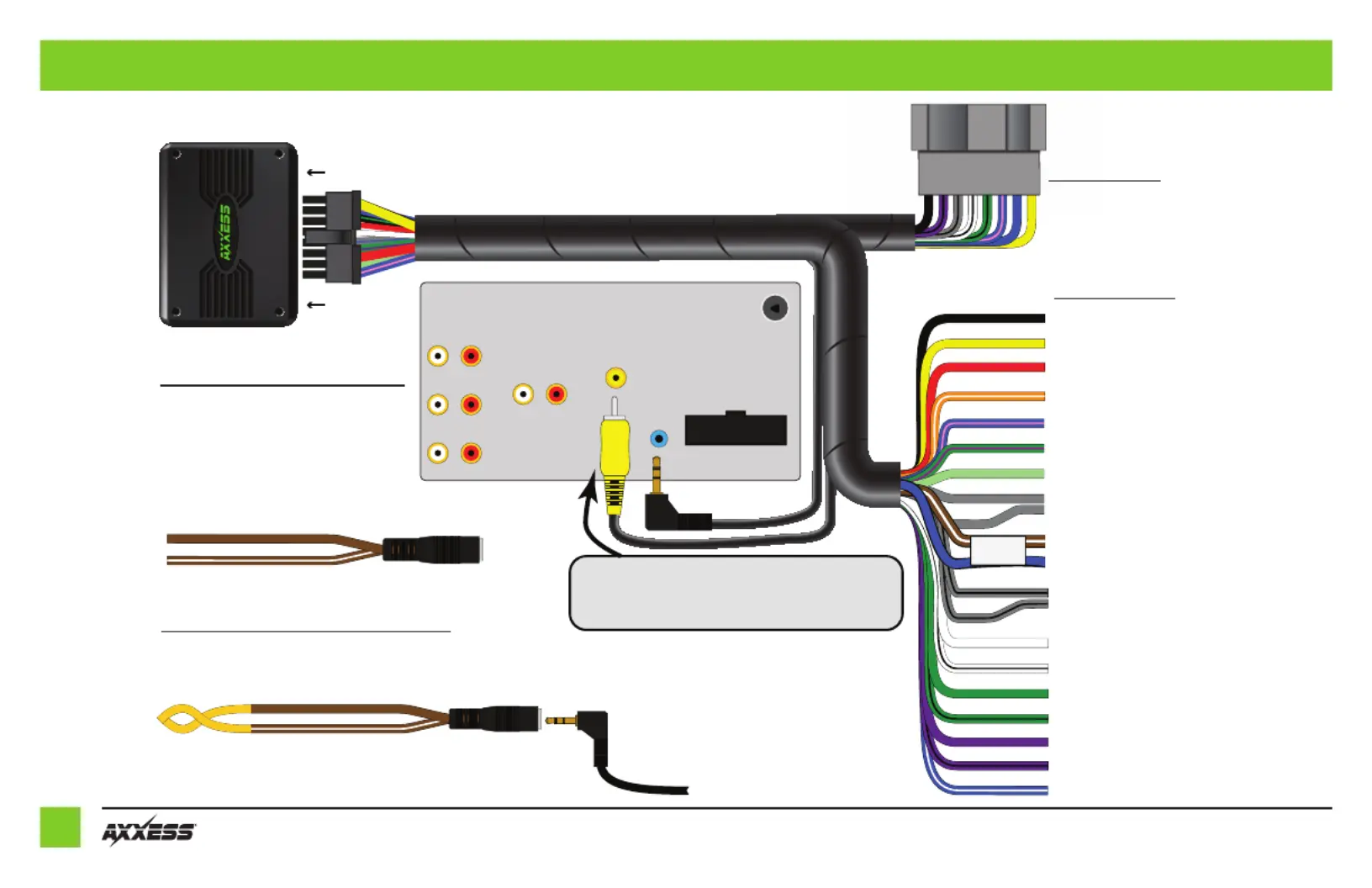

CONNECTIONS
Br /White own (NOT USED)
Blue Ground on Non-SYNC
application for reverse camera
Front
Rear
Sub
AUX-IN
Rear View
SWC
This is to be done only in the Ford ansit/Transit ConnectTr
2019-Up without SYNC. tain backup camera in anyother To re
application you must purchase the .AXBUCH-FD1
CENTER
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory po rwe
Orange/White - Illumination
Blue/Pink - S/Speed-SenseVS
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with C wire):SW y 1 - Br nKe (Gray) ow
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: 2 - Br nSWC- ow
Key-A or 1 - Br n SWC- ow
Key-B or 2 - Br n/WhiteSWC- ow
* After programming, assign C buttons within dio menuSW ra
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) Brown and Br From the 3.5mm adapter, tie the own/White wires together with tape or conntector
2) 3.5mm adapter -FD3 HarnessConnect the to the 3.5mm jack from the AXTC .
3) Program the per the instructions on page 3. DisregarAXTC-FD3 d steps 4 & 5
Gr /Blackay - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Blue/White - Amp turn on from radio
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED Light
Vehicle Connectors
3
REV. 3/6/23 INSTAXTC-FD3

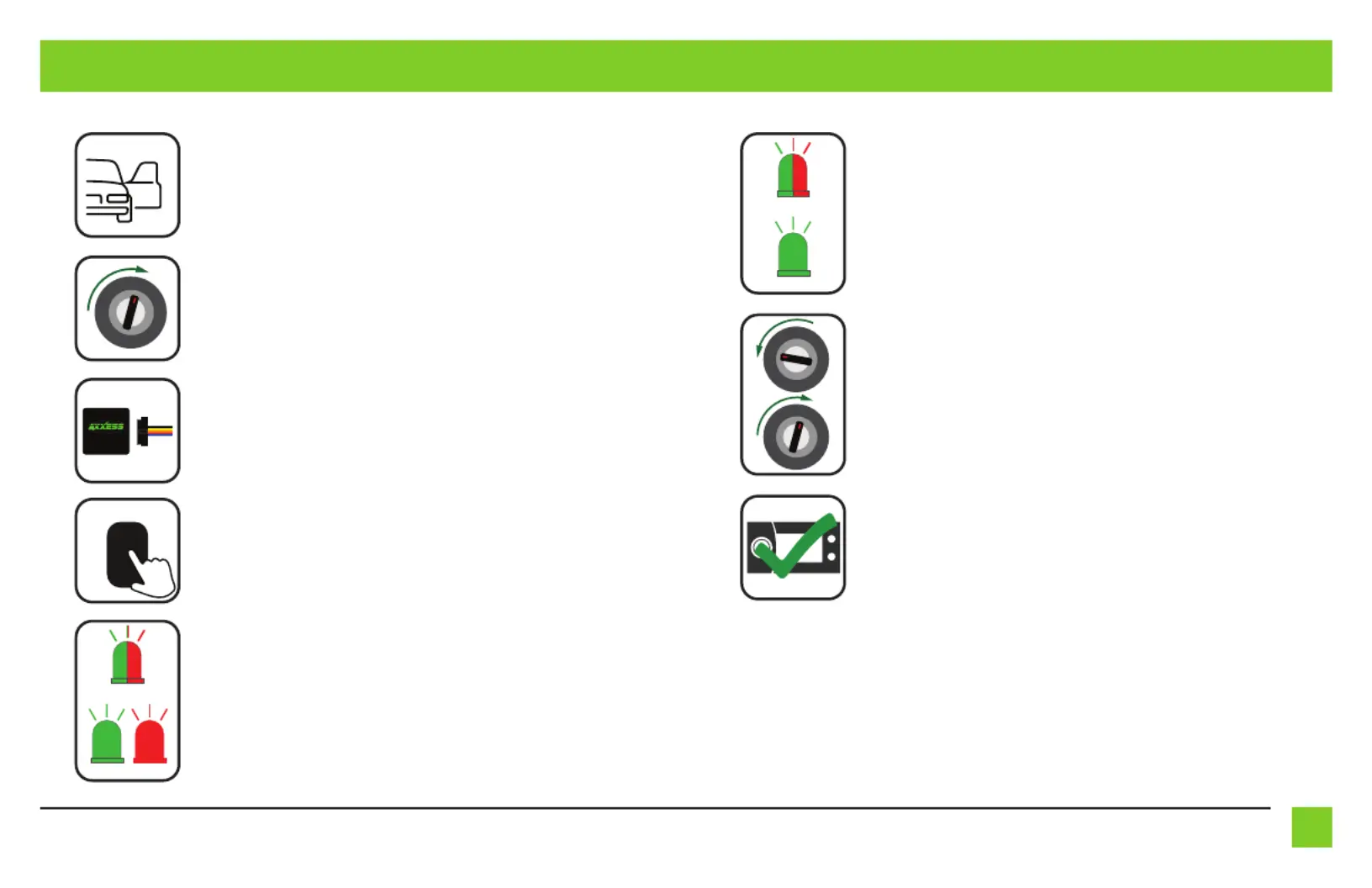

PROGRAMMING
1.
Open the driver’s door, and keep open during the programming process.
2.
Cycle the ignition on and wait (5) seconds.
3. AXTC-FD3 harness AXTC-FD3 interface Connect the to the , and then to
the wiring harness in the vehicle.
4.*
Locate the Volume Up button on the steering wheel. Program the interface
by tapping the Volume Up button at a heartbeat pace until the LED light
stops flashing.
* Only applicable if vehicle came with steering wheel controls
5.*
The LED light will flash & while the interface programs the Green Red
radio to the steering wheel controls. Once programmed, the LED light will
go out, then produce a pattern which will identify the radio type installed
.
* Only applicable if vehicle came with steering wheel controls
6. GreenThe LED light will go out, then once again quickly flash & Red
while the interface programs itself to the vehicle. Once programmed,
the LED light will go out again, then turn solid .Green
7. Cycle the ignition off, then back on.
8. Test all functions of the installation for proper operation.
Gr Deen & Red LE
Gr Deen or Red LE
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
VOL
+
Tap Volume Up
