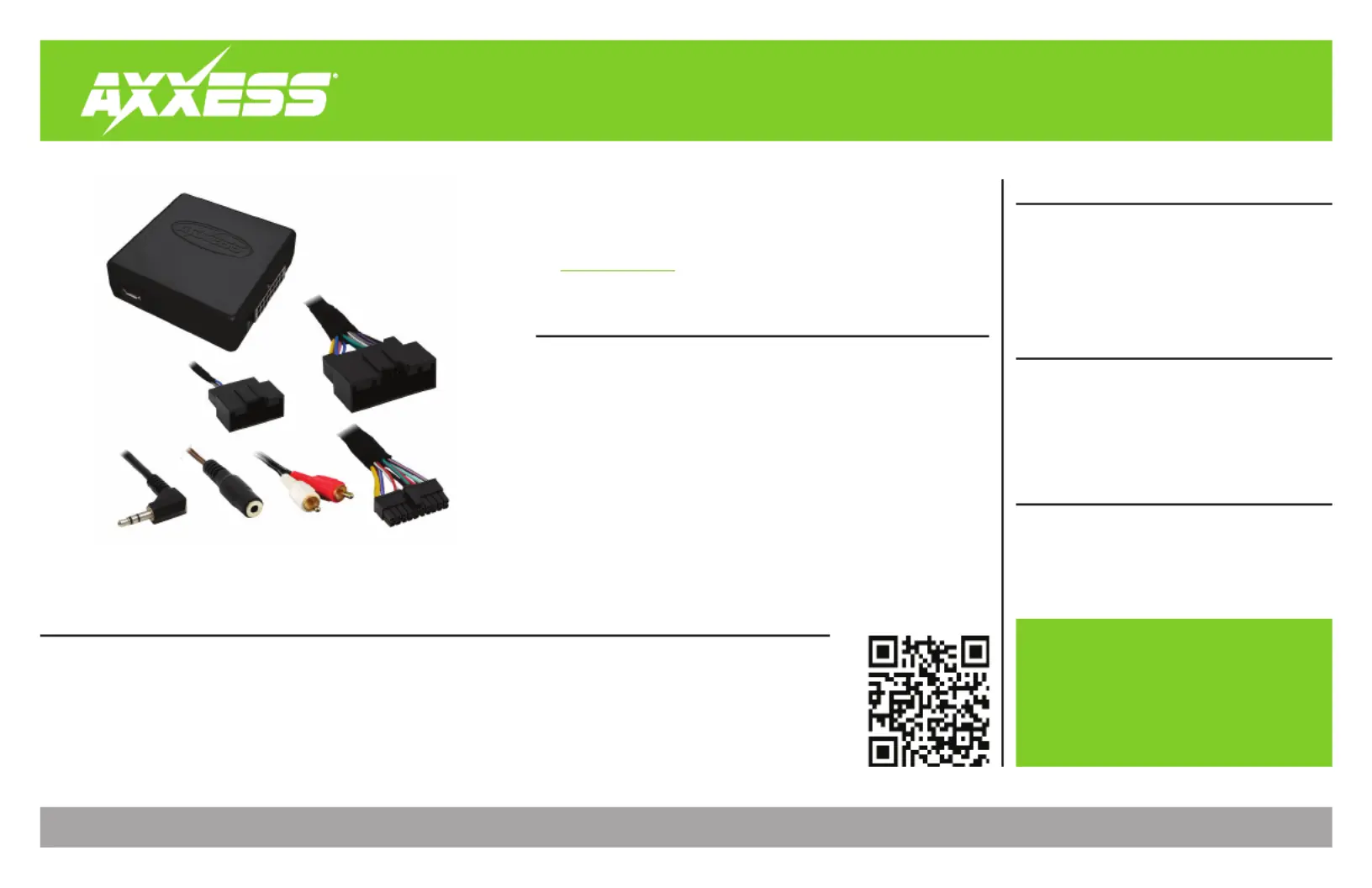

AXTC-FD2
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/10/23 INSTAXTC-FD2
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
Ford SWC (Steering Wheel Control)
and Data Interface 2012-2020
APPLICATIONS
• Provides accessory power (10-
amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
•
Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
•
Retains the 3.5mm AUX-IN jack
• USB Micro-B updatable
• Includes 5V factory amplifier
step-down
Ford (1)
Escape ....................................2013-2016
Fiesta ......................................2011-2019
Focus ...................................... 2012-2014
Ranger ..................................2019-2020
Transit 150/250/350 .............. 2015-2019
Transit Connect .....................2014-2016
(1) This interface must be used along with the corresponding Metra radio-install-kit (sold separately)
• AXTC-FD2 interface • AXTC-FD2 harness
• 3.5mm adapter
• LD-AFDI-5V amplifier step-down
Visit AxxessInterfaces.com for more detailed information about the product and
up-to-date vehicle specific applications
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
Product Info
2
Front
Rear
Sub
AUX-IN
Rear ewVi
SWC
AFDI-5V
AFDI-5V
LD-AFDI-5V
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with C wire):SW y 1 - Br nKe (Gray) ow
Kenwood / JVC (with SWC wire): Blue/Yellow - Br now
XITE: 2 - Br nSWC- ow
Key-A or 1 - Br n SWC- ow
Key-B or 2 - Br n/WhiteSWC- ow
* After programming, assign dio menuSWC buttons within ra
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Br n Br From the , tie the ow and own/White wir res together with tape or connecto
2) 3.5mm adapter -FD2 HarnessConnect the to the 3.5mm jack from the AXTC
3) Program the per the instructions on page 3. DisregarAXTC-FD2 d steps 4 & 5
CONNECTIONS
Vehicle Connectors
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED Light
White - AUX-IN Left
Red - AUX-IN Right
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue - Power Antenna
Blue/White - See below
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Blue/White - Amp turn on from radio
Black - Ground
Blue/White - Amp turn-on from radio
Blue/Red - AXTC-FD2 Blue/White wires (2)
3
REV. 3/10/23 INSTAXTC-FD2
PROGRAMMING
Open the driver’s door, and keep open during the programming process.
Cycle the ignition on and wait (5) seconds, or until the factory display
screens reads .LINE IN
Connect the AXTC-FD2 harness AXTC-FD2 interface to the , and then to
the wiring harness in the vehicle.
Locate the Volume Up button on the steering wheel. Program the
interface
by tapping the Volume Up button at a heartbeat pace until the
LED light stops flashing.
*Only applicable if vehicle came with steering wheel controls
The LED light will flash & while the interface programs the radio Green Red
to the steering wheel controls. Once programmed, the LED light will go
out, then produce a pattern which will identify the radio type installed
.
* Only applicable if vehicle came with steering wheel controls
The LED light will go out, then once again quickly flash Green & Red
while the interface programs itself to the vehicle. Once programmed,
the LED light will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
1.
2.
3.
4.*
5.*
6.
7.
8.
Gr Deen & Red LE
Gr Deen or Red LE
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
VOL
+
Tap Volume Up
