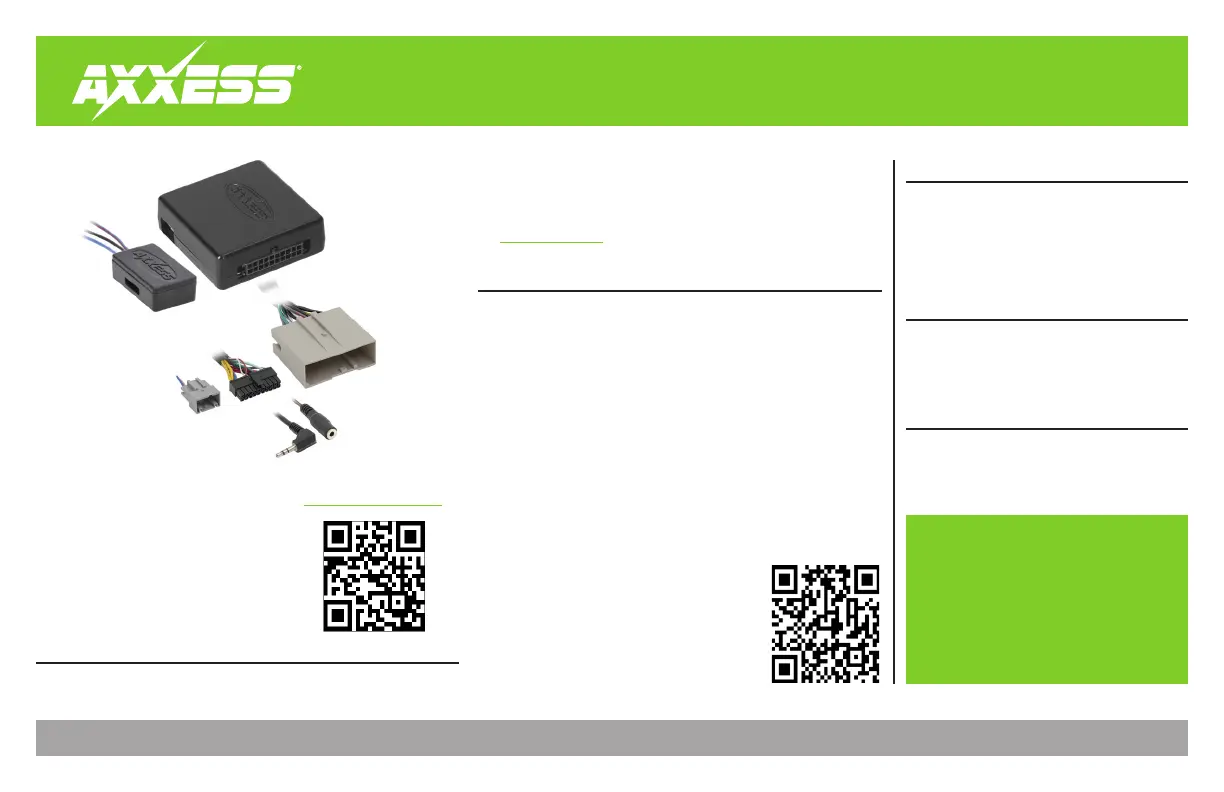

AXTC-FD1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com Š COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/9/24 INSTAXTC-FD1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & PARTS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections 3 ............................................................
Programming 4 .........................................................
Troubleshooting.....................................................5
Ford/Mazda/Mercury SWC (Steering Wheel
Control) and Data Interface 2007-2022
APPLICATIONS
•
Provides accessory power (10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
• Micro-B USB updatable
• Includes 5V factory amplifier
step-down
• AXTC-FD1 interface • AXTC-FD1 harness
• 3.5mm adapter
• LD-AFDI-5V amplifier step-down
See inside front cover
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-
date vehicle specific applications.
Product Info
www.MetraOnline.com
MetraOnline.com may be used to assist with dash
assembly instructions. Simply enter your Year,
Make, Model vehicle into the vehicle fit guide and
look for the Dash Kit Installation Instructions.
2
APPLICATIONS
Ford SWC*
Edge ................................................. 2007-2008 (auto)
Edge ..................................................2009-2010 (auto)
Escape ............................................... 2008-2012 (auto)
E series (with AM/FM/CD/SYNC) ..... 2014-2020 (tap)
Expedition .........................................2007-2013 (auto)
F-150 Base (1) .............................................2013 (tap)
F-150 (2) ...........................................2009-2014 (tap)
F-150 (2) ...........................................2009-2010 (auto)
F-250/350/450/550 (Base) (1) ................. 2016 (tap)
F-250/350/450/550 (2) .....................2011-2016 (tap)
F650/750 (w/CD) ...............................2016-2022 (tap)
Focus ..................................................2008-2011 (auto)
Fusion ................................................2010-2012 (auto)
Mustang (3) .....................................2008-2014 (auto)
Mazda SWC*
Tribute ...............................................2008-2011 (auto)
Mercury
Mariner...............................................2008-2011 (auto)
Milan ...................................................2010-2011 (auto)
( )1 Without 8.4” color screen. XL models must have a CD player
(2) XL models must have a CD player
(3) Late 2008 build date
*SWC Programming Sequence
(auto) Do nothing, the interface will auto program
(tap) Tap the Volume Up button to program the interface
3
REV. 7/9/24 INSTAXTC-FD1
CONNECTIONS
Blue/Red Blue/White -
(x3) Blue/White Amp Turn-On Wires
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
LD-SWCX-5521
AFDI-5V
Blue/White - Amplier turn on from aftermarket radio
Black - Chassis ground
LED Light
Reset Button
Blue/White (x3) - Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
{
Universal
Radio
*
Key-A or SWC-1 -Brown
Key-B or SWC-2 -Brown/White
After programming, assign SWC buttons within radio menu
*
3.5mm Adapter for vehicles without Steering wheel controls
1) 3.5mm adapter Brown Brown/WhiteFrom the , tie the and wires together
with tape or connector
2) 3.5mm adapter SWCX-5521 HarnessConnect the to the 3.5mm jack from the
3) SWCX-5521 Program the per the instructions on page 4. Disregard steps 4 & 5
Blue - Antenna Turn On
Red - Accessory power
Yellow - Battery wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Vehicle Connectors
Radio Connections
Interface
20-Pin
