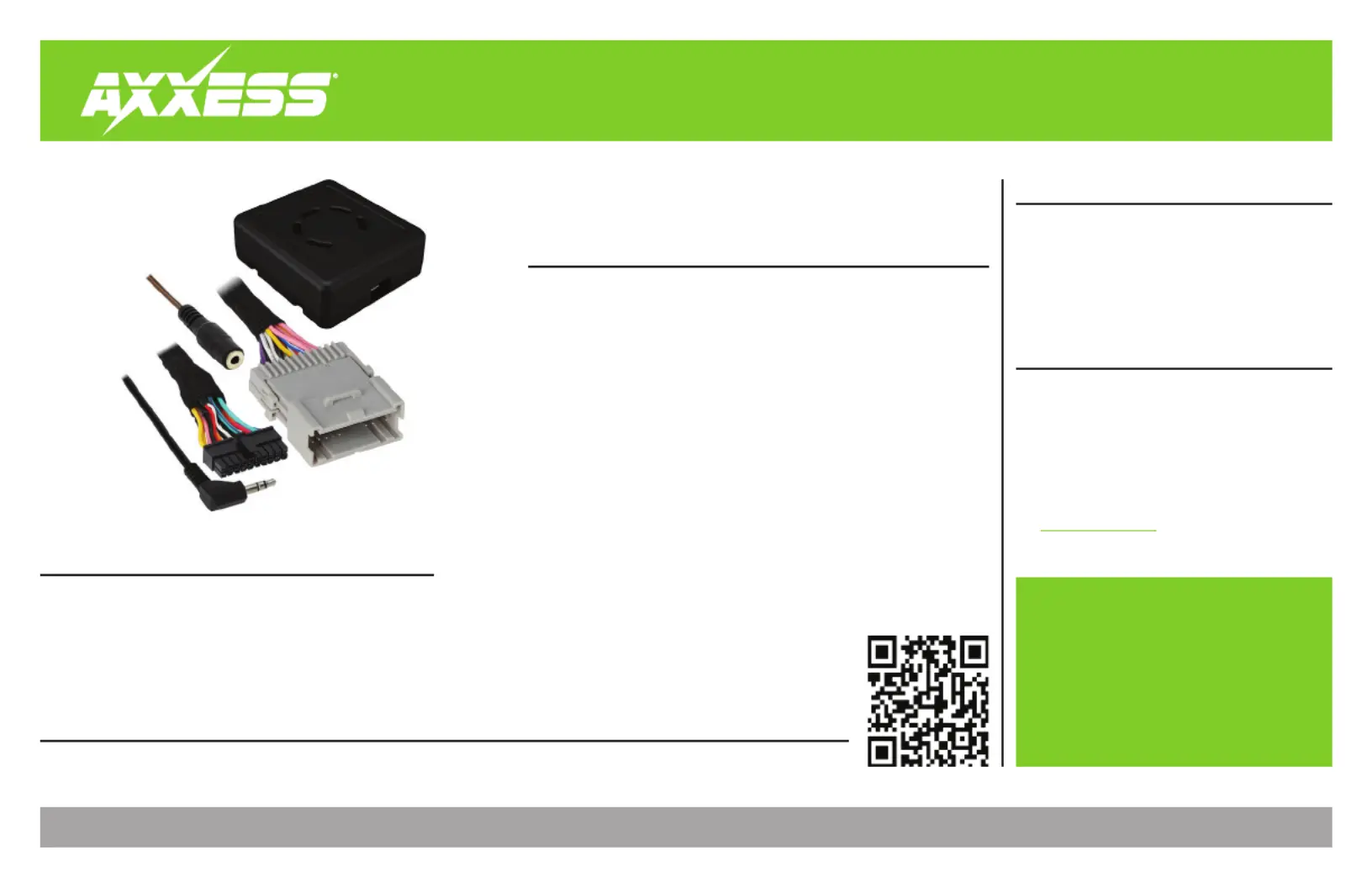

AXTC-CL2
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 4/5/23 INSTAXTC-CL2
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
• Zip ties
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections 3 ............................................................
Programming 4-5 ..........................................................
Troubleshooting.....................................................6
GM Data Interface with SWC 2000-2013
APPLICATIONS
See inside front cover
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed
sense outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (nonvolatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
• AXTC-CL2 interface
• AXTC-CL2 harness
• 3.5mm adapter
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Product Info
Visit for more detailed information
AxxessInterfaces.com
about the product and up-to-date vehicle specific applications.
2
APPLICATIONS
* SWC Programming Sequence
(hold) Press and hold the button to program the interface.Volume Up
(tap) Tap the button to program the interface.Volume Up
Buick SWC*
Century ..........................2004-2005 (hold)
Lacrosse .........................2005-2009 (hold)
Rainier ...........................2004-2007 (tap)
Regal ........................................2004 (hold)
Rendezvous ...................2002-2007 (hold)
Terraza ...........................2005-2007 (hold)
Cadillac
Escalade (1) ...................2003-2006 (tap)
Escalade ESV (1) ............2003-2006 (tap)
Escalade EXT (1) ............2003-2006 (tap)
Chevrolet
Avalanche ......................2003-2006 (tap)
Cavalier ..........................2000-2005 (tap)
Colorado .........................2004-2012 (tap)
Corvette ..........................2005-2013 (hold)
Express...........................2003-2007 (tap)
Chevrolet (Cont) SWC*
Impala ............................2000-2005 (hold)
Kodiak C4500-C8500 ....2003-2009 (tap)
Malibu .............................2001-2003 (tap)
Malibu Classic ................2004-2005 (tap)
Monte Carlo ...................2000-2005 (hold)
Silverado........................2003-2006 (tap)
Silverado Classic......................2007 (tap)
SSR .................................2003-2006 (tap)
Suburban .......................2003-2006 (tap)
Tahoe .............................2003-2006 (tap)
Trailblazer ......................2002-2009 (tap)
Uplander ........................2005-2008 (hold)
GMC
Canyon ............................2004-2012 (tap)
Envoy .............................2002-2009 (tap)
Savana ...........................2003-2007 (tap)
GMC (Cont) SWC*
Sierra ..............................2003-2006 (tap)
Sierra Classic ............................2007 (tap)
Top Kick C4500-C8500 ..2005-2009 (tap)
Yukon .............................2003-2006 (tap)
Yukon XL ........................2003-2006 (tap)
Hummer
H2 (1) .............................2003-2007 (tap)
H3 ................................... 2006-2010 (tap)
H3T ................................. 2006-2010 (tap)
Isuzu
Ascender ........................ 2003-2008 (tap)
H Series ..........................2003-2008 (tap)
I Series pickups .............2006-2008 (tap)
Oldsmobile SWC*
Alero .............................. 2001-2004 (hold)
Bravada .........................2002-2004 (tap)
Intrigue ....................................2002 (hold)
Pontiac
Aztec ...............................2001-2005 (hold)
Grand Am .......................2001-2005 (hold)
Grand Prix ......................2004-2008 (hold)
Montana SV6 .................2005-2006 (hold)
Sunfire ...........................2000-2005 (tap)
SAAB
9-7X ................................2005-2009 (tap)
Saturn
Relay ..............................2005-2007 (hold)
(1) These vehicles are standard for an amp and must be bypassed.
3
IFACE ILL
Front
Rear
Sub
AUX-IN
Rear View
SWC
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector
2) 3.5mm adapter AXTC-CL2 HarnessConnect the to the 3.5mm jack from the
3) AXTC-CL2 Program the per the instructions on pages 4 and 5. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
REV. 4/5/23 INSTAXTC-CL2
CONNECTIONS
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination *
Orange (labeled IFACE ILL) - Illumination *
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Vehicle
Connector
