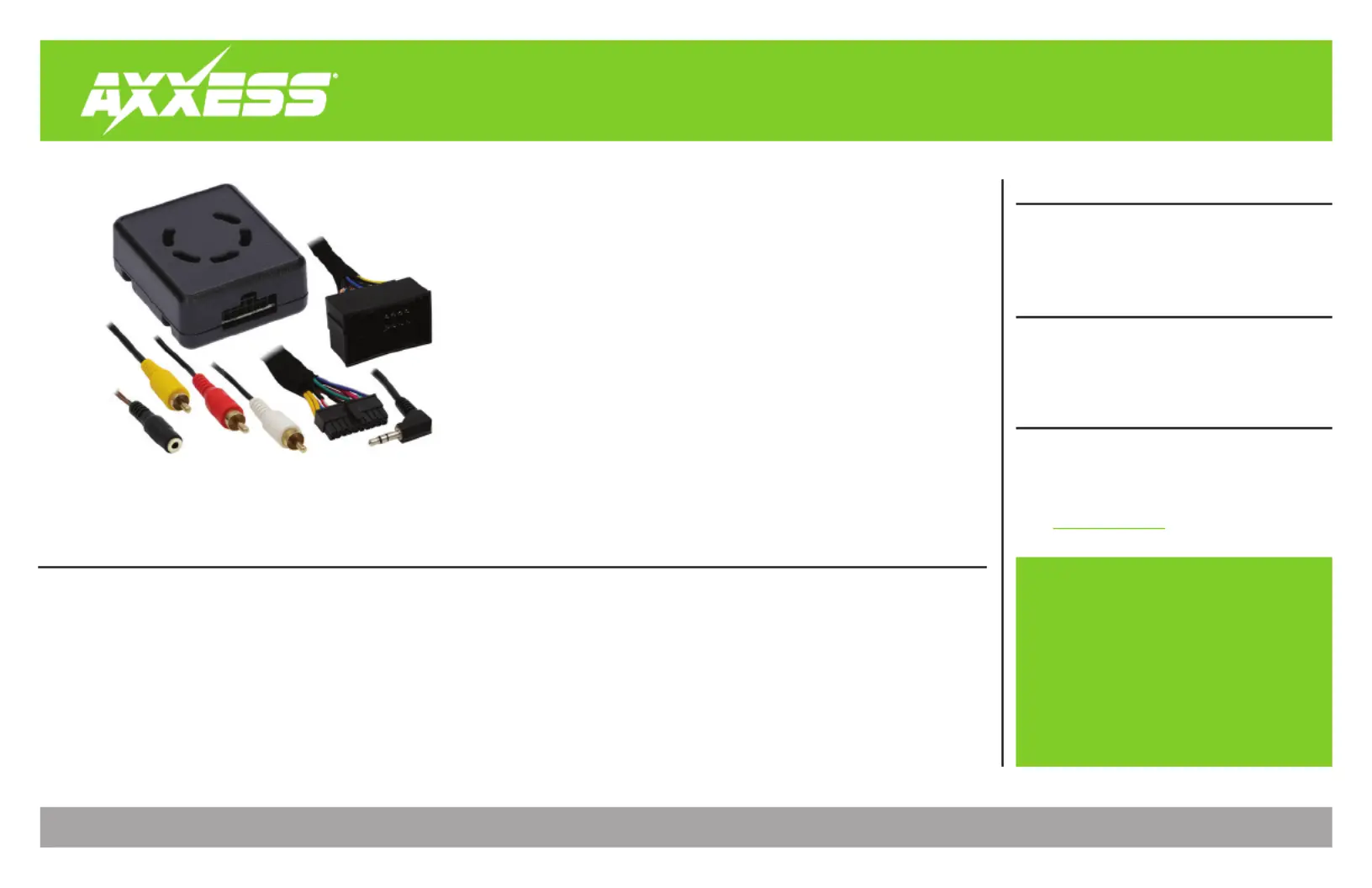

AXTC-CH5
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/7/23 INSTAXTC-CH5
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
Chrysler SWC (Steering Wheel Control)
and Data Interface 2013-2023
APPLICATIONS
• Provides accessory power
(10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
•
Retains the factory backup camera
• Retains the 3.5mm AUX-IN jack
• Micro-B USB updatable
Chrysler
200 LX ...............................................2015-2016
Dodge
Dart* .................................................. 2013-2016
Jeep
Cherokee Sport ..................................2014-2016
Compass Sport ................................2017.5-2018
Ram
1500/2500/3500 (small screen, base radio)
............................................................2013-2018
Chassis Cab 3500/4500/5500 (small screen
Base radio) .......................................2013-2018
1500/2500/3500 (small screen, base radio)
.............................................2019-2023 (Classic)
Chassis Cab 3500/4500/5500 (small screen
Base radio) ........................2019-2023 (Classic)
• AXTC-CH5 interface
• AXTC-CH5 harness
• 3.5mm adapter
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
2
Front
Rear
Sub
AUX-IN
Rear View
SWC
3.5mm Adapter (for vehicles without
Steering wheel controls or
aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
*After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) From the , tie the and3.5mm adapter Brown Brown/White wires together with tape or connector
2) 3.5mm adapterConnect the to the 3.5mm jack from the AXTC-CH5 Harness
3) Program the AXTC-CH5 per the instructions on page 3. Disregard steps 4 & 5
CONNECTIONS
To Vehicle Connector
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED Light
White - AUX-IN Left
Red - AUX-IN Right
Yellow - Rear View
3
REV. 3/7/23 INSTAXTC-CH5
Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the AXTC-CH5 harness AXTC-CH5 interface to the , and then to
the wiring harness in the vehicle.
Locate the Volume Up button behind the steering wheel on the right
hand side. Program the interface by tapping the Volume Up button at
a heartbeat pace until the LED light stops flashing. For models with just
Bluetooth buttons on the steering wheel, use the button instead.PTT
* Only applicable if vehicle came with steering wheel controls
The LED light will go out, then once again quickly flash Green & Red
while the interface programs itself to the vehicle. Once programmed,
the LED light will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
PROGRAMMING
1.
2.
3.
4.*
5.*
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
Gr Deen & Red LE
Gr Deen or Red LE
The LED light will flash & while the interface programs Green Red
the radio to the steering wheel controls. Once programmed, the
LED light will go out, then produce a pattern which will identify the
radio type installed. Refer to the section under Radio LED Feedback
Troubleshooting for radio types.
* Only applicable if vehicle came with steering wheel controls
