AXTC-CH13
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/28/23 INSTAXTC-CH13

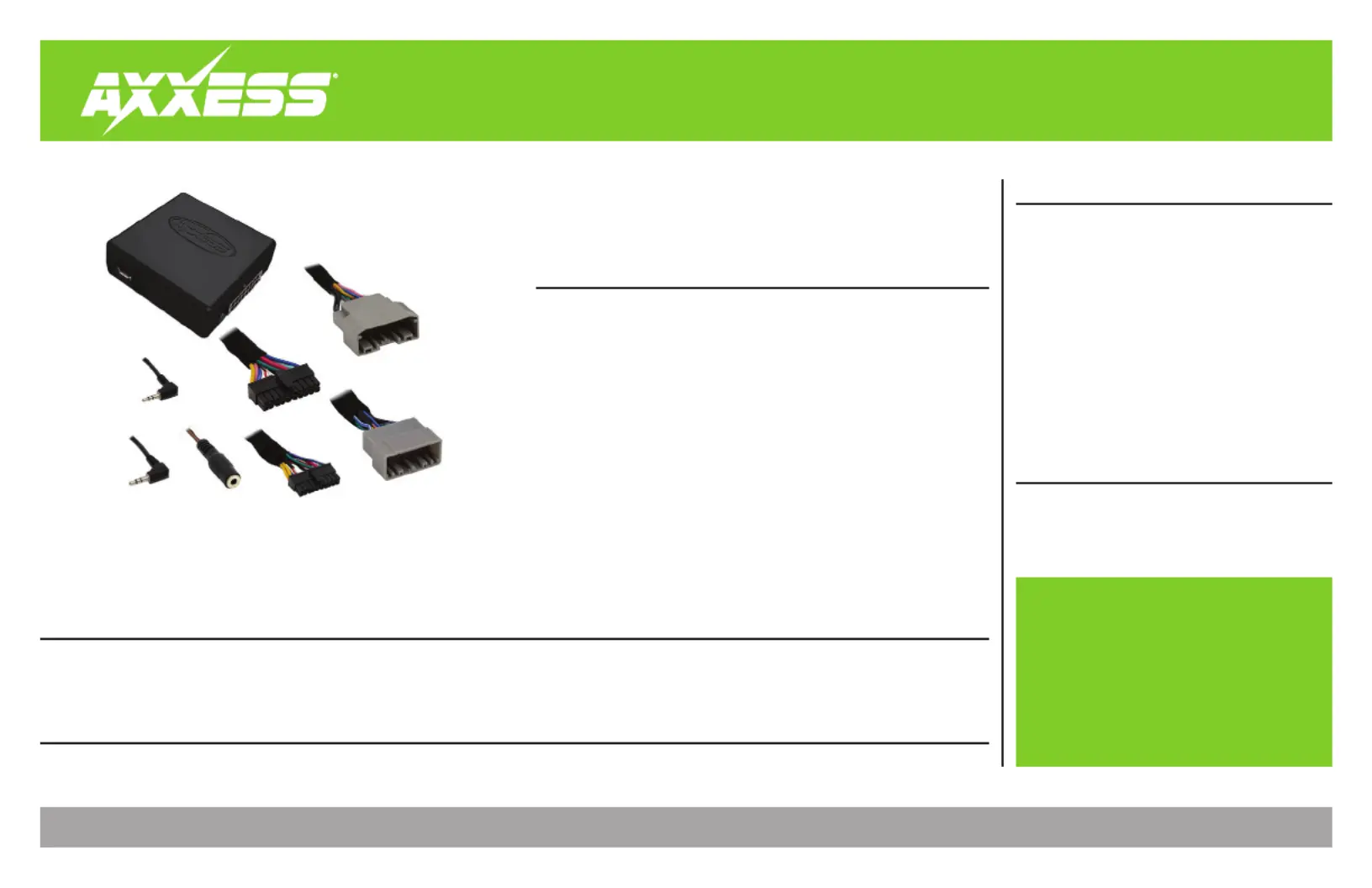

INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Applications 2 ...........................................................
Connections
LDSWCX-6502 Without Amp 3 ..............................
LDSWCX-6502 With Amp 4 ...................................
LDSWCX-6522 Without Amp 5 ..............................
LDSWCX-6522 With Amp 6 ....................................
Programming 7 .........................................................
Troubleshooting.....................................................8
APPLICATIONS
• AXTC-CH13 interface • LD-SWCX-6502 harness • LD-SWCX-6522 harness • 3.5mm adapter
See inside front cover
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
•
Provides accessory power (10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Can be used in both amplified
and non-amplified models
• Retains balance and fade (†)
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
• Micro-B USB updatable
(†) Non-amplified models only
INTERFACE FEATURES
•
Provides accessory power (10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Can be used in both amplified
and non-amplified models
• Retains balance and fade (†)
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
• Micro-B USB updatable
(†) Non-amplified models only
Chrysler SWC (Steering Wheel Control)
and Data Interface 2004-Up
2
APPLICATIONS
Chrysler
300 2005-2007 ....................................................
Aspen 2007 ..........................................................
PT Cruiser 2006-2010 ..........................................
Dodge
Caliber 2007-2008 ..............................................
Charger 2006-2007 ............................................
Dakota 2005-2007 ..............................................
Durango 2004-2007 ...........................................
Magnum 2005-2007 ...........................................
Ram 1500 2006-2008 .........................................
Ram 2500/3500 2006-2009 ..............................
Ram Chassis Cab 4500/5500 2008-2010 ...........
Jeep
Commander 2006-2007 ....................................
Compass 2007-2008 ..........................................
Grand Cherokee 2005-2007 ...............................
Patriot 2007-2008 ..............................................
Mitsubishi
Raider 2006-2007 ..............................................
Chrysler
200 2011-2014 ......................................................
300 2008-2010 ....................................................
Aspen 2008-2009 ...............................................
Sebring 2007-2010 .............................................
Town & Country 2008-2017 ...............................
Dodge
Avenger 2008-2014 ............................................
Caliber 2009-2012 ...............................................
Caravan, Grand Caravan.....................2008-up
Challenger 2008-2014 ........................................
Charger 2008-2010 .............................................
Dakota 2008-2011 ...............................................
Durango 2008-2013 ............................................
Journey 2009-2010 .............................................
Magnum 2008-2009 ..........................................
Nitro 2007-2011 ...................................................
Ram 1500 2009-2011 ...........................................
Ram 2500/3500 2010-2011 .................................
Ram Chassis Cab 4500/5500 2011 ......................
Jeep
Commander 2008-2010 .....................................
Compass 2009-2017.5 ........................................
Grand Cherokee 2008-2013 ...............................
Liberty 2008-2012 ...............................................
Patriot 2009-2017 ...............................................
Wrangler* 2018 ...................................................
Wrangler Unlimited* 2018 .................................
Wrangler............................................2007-2017
Wrangler Unlimited 2007-2017 ..........................
* JK body type
Mitsubishi
Raider 2008-2009 ..............................................
Ram
1500/2500/3500 2012 ..........................................
Chassis Cab 3500/4500/5500.....................2012
C/V Tradesman 2012-2015 ..................................
Volkswagen
Routan 2009-2013 ..............................................
LD-SWCX-6502 APPLICATIONS LD-SWCX-6522 APPLICATIONS
3
REV. 3/28/23 INSTAXTC-CH13
LD-SWCX-6502 CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector
2) 3.5mm adapter AXTC-CH13 HarnessConnect the to the 3.5mm jack from the
3) AXTC-CH13 Program the per the instructions on page 7. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Vehicle Connector
Radio Connections
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED Light
Without Factory Amp
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue - Power Antenna
Not Used
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
