AXTC-BM1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/8/23 INSTAXTC-BM1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
BMW / Mini SWC (Steering Wheel Control)
and Data Interface 2006-2012
APPLICATIONS
• Provides accessory power (10-amp)
•
Provides illumination, parking brake,
reverse, and speed sense outputs
• Retains warning chimes through
an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with all
major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
BMW
1 Series .....................2008-2013
3 Series ...............2012-2013(1)
3 Series......................2007-2011
3 Series .......................2006(2)
M3 ..............................2007-2013
Mini (Cooper)
Clubman (R55) ........2008-2014
Convertible (R57) ....2009-2015
Countryman ....... 2011-2016(3)
Coupe (R58) ..............2012-2015
Hatchback (R56) ......2007-2013
Paceman ............ 2011-2016(3)
Roadster (R59) .........2012-2015

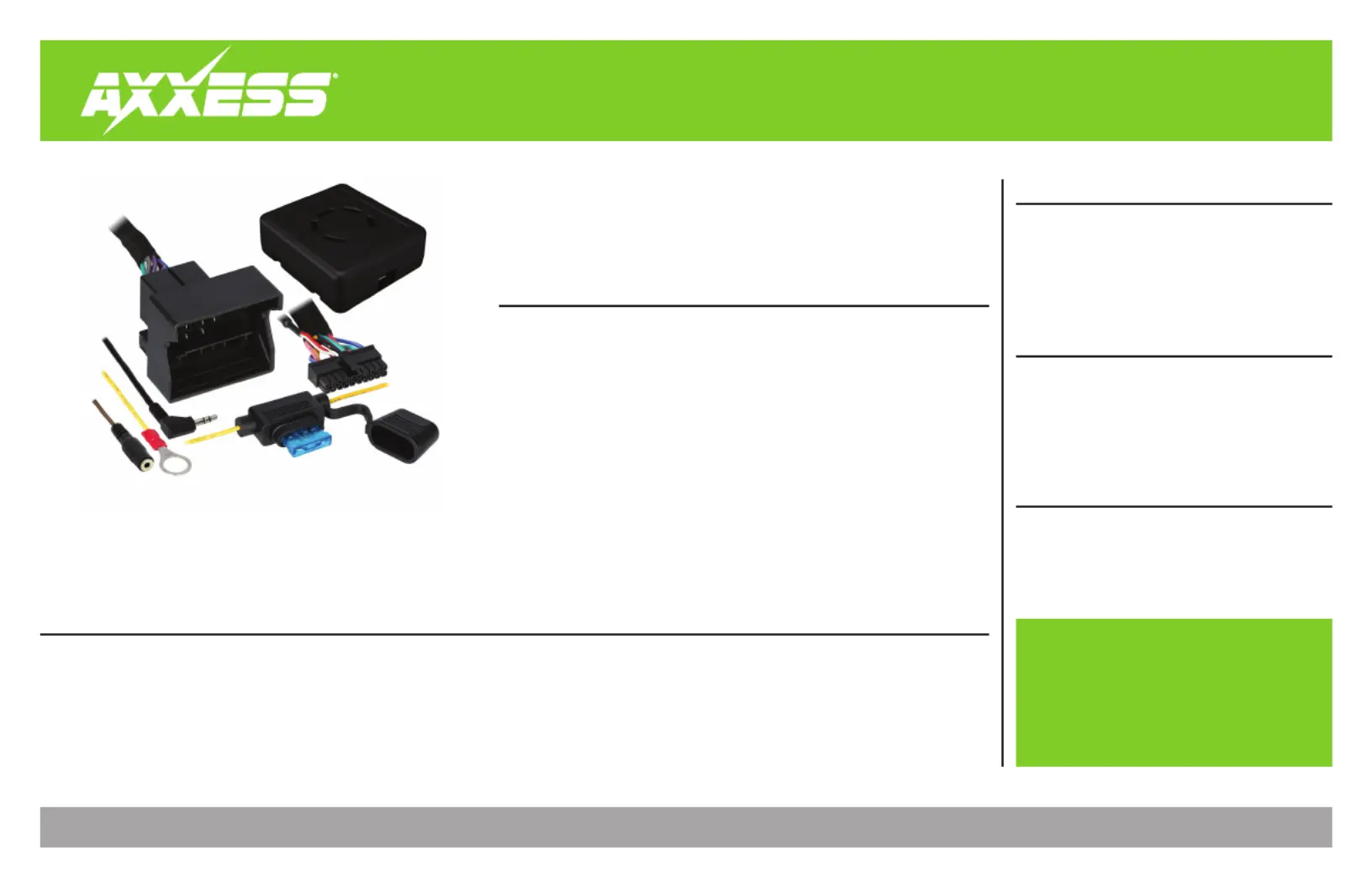

• AXTC-BM1 interface
• AXTC-BM1 harness
• 3.5mm adapter
(1) (2) (3) Excluding sedan models Sedan and Wagon only Without factory NAV
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
2

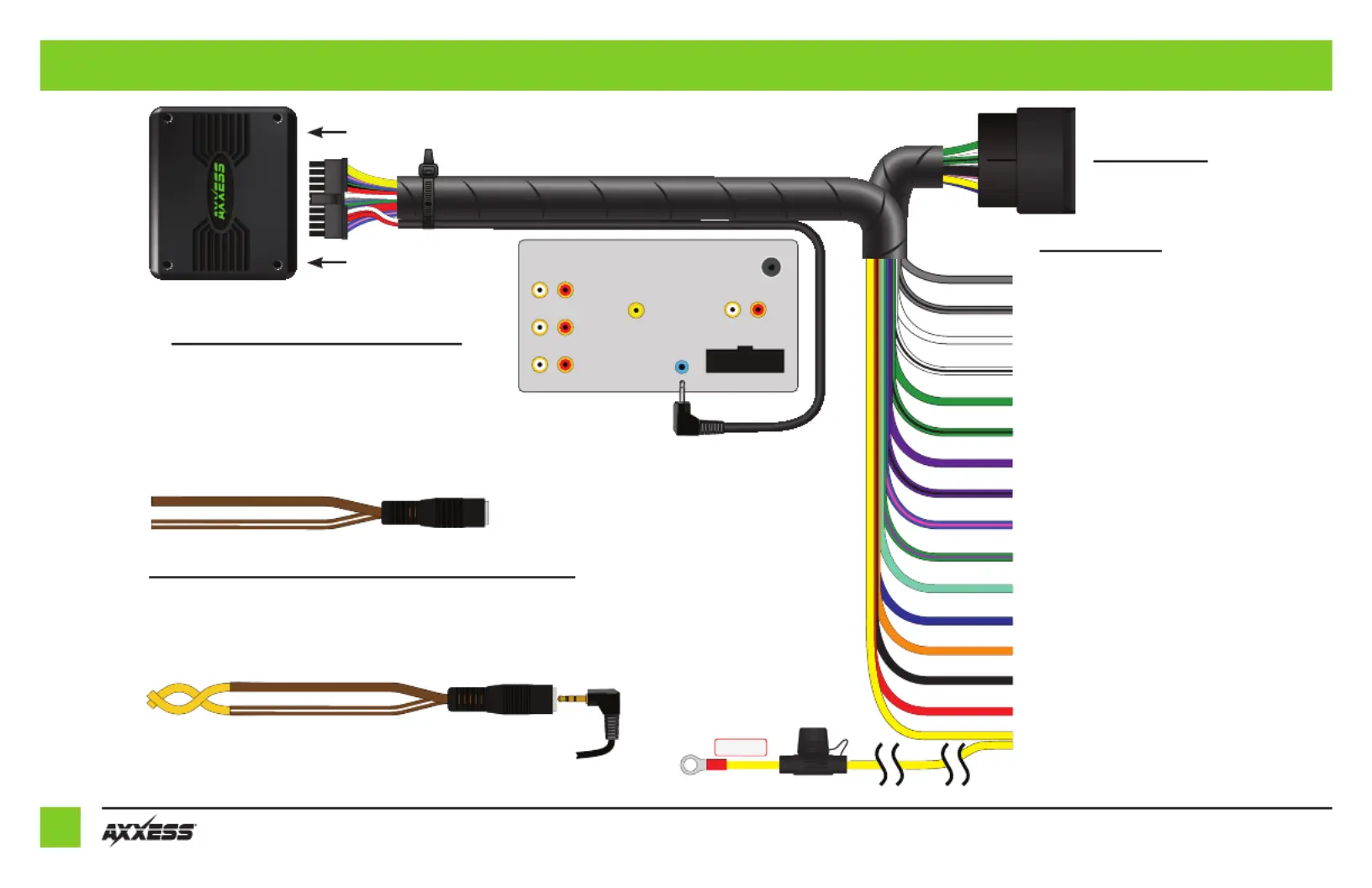

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
To Battery
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with C wire):SW y 1 - Br nKe (Gray) ow
Kenwood / JVC (with SWC wire): Blue/Yellow - Br now
XITE: 2 - Br nSWC- ow
Key-A or 1 - Br n SWC- ow
Key-B or 2 - Br n/WhiteSWC- ow
* After programming, assign dio menuSWC buttons within ra
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) 3.5mm adapter Br n Br From the , tie the ow and own/White wires together
with tape or connector
2) 3.5mm adapterConnect the to the 3.5mm jack from the AXTC-BM1 Harness
3) Program the per the instructions on page 3. DisregarAXTC-BM1 d steps 4 & 5
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Blue - Not used
Orange - Illumination
Black - Ground
Red - Accessory power
Yellow - Battery power
Aftermarket Radio
(radio’s features may vary)
Vehicle Connector
Reset Button
LED
Radio Connections
3
REV. 3/8/23 INSTAXTC-BM1

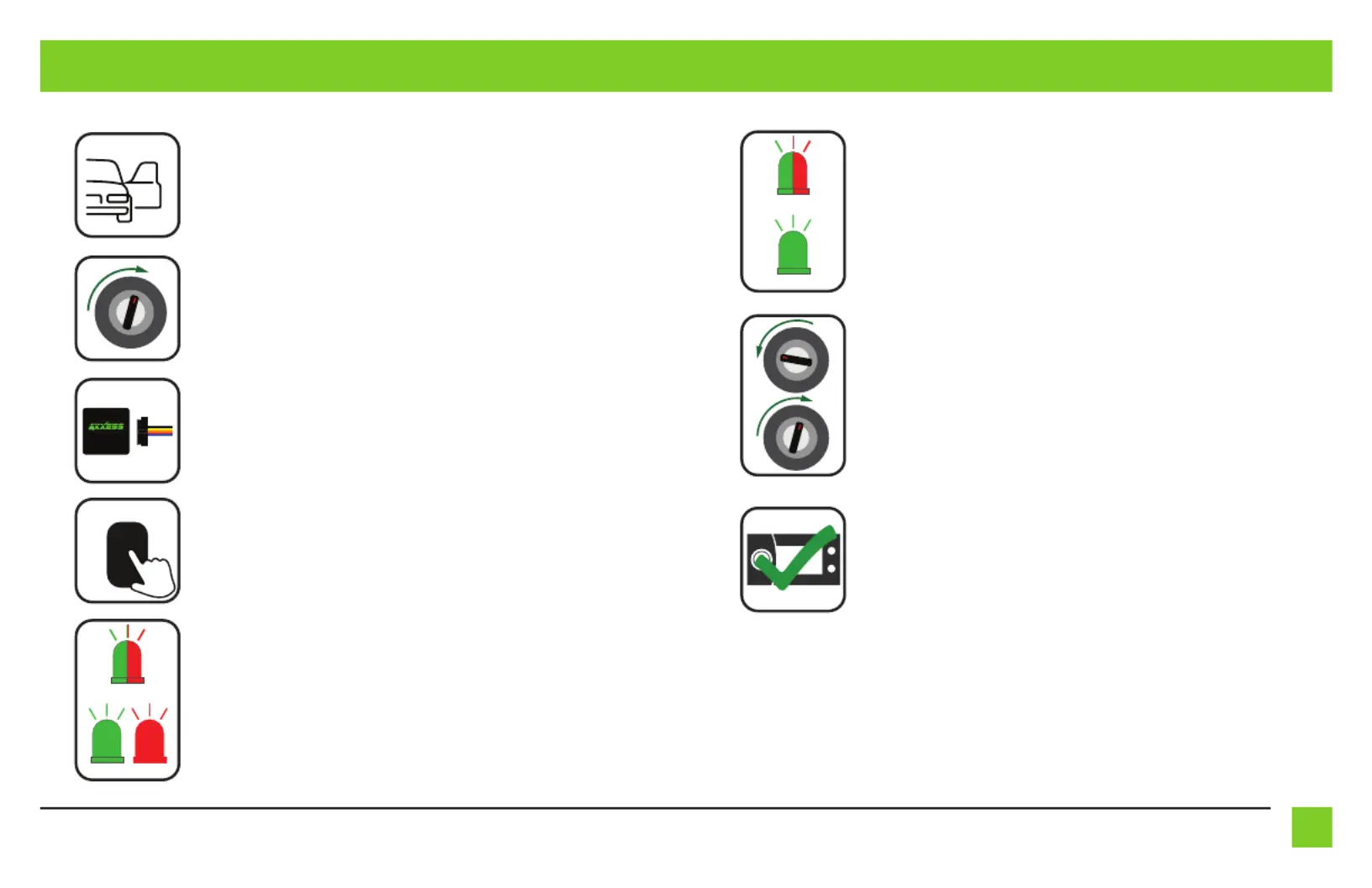

PROGRAMMING
Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the AXTC-BM1 harness AXTC-BM1 interface to the , and then to
the wiring harness in the vehicle.
Locate the Volume Up button on the the steering wheel. Program the
interface by tapping the Volume Up button until the LED stops flashing.
*Only applicable if vehicle came with steering wheel controls
The LED will flash & while the interface programs the radio to Green Red
the steering wheel controls. Once programmed, the LED will go out, then
produce a pattern which will identify the radio type installed. Refer to
the section under Radio LED Feedback Troubleshooting for radio types
.
*Only applicable if vehicle came with steering wheel controls
1.
2.
3.
4.*
5.*
O
F
F
A
C
C
O
N
S
T
A
R
T
VOL
+
Tap Volume Up
Gr Deen & Red LE
Gr Deen or Red LE
The LED will go out, then once again quickly flash & while Green Red
the interface programs itself to the vehicle. Once programmed, the LED
will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
