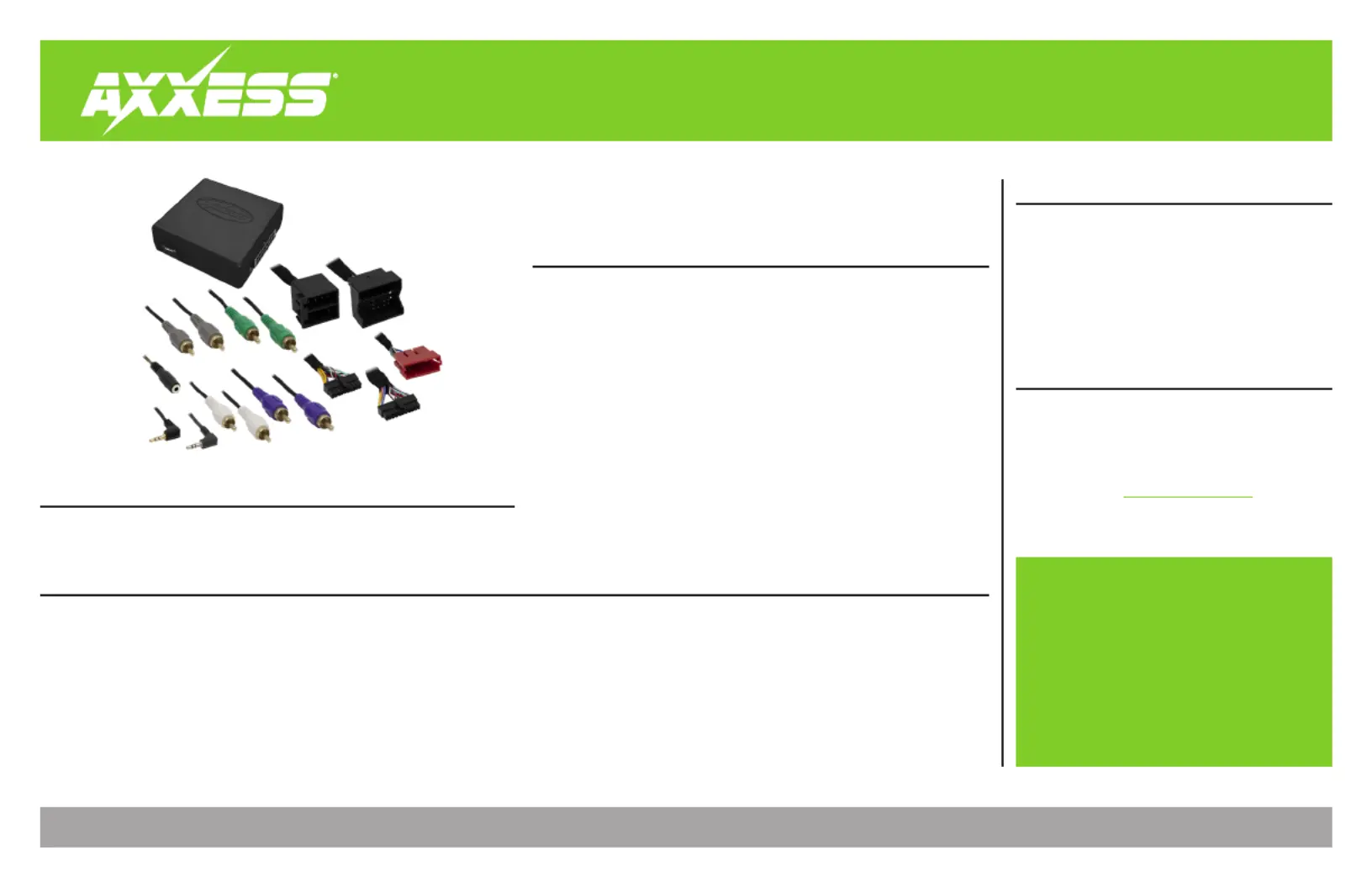

AXTC-A12
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 8/24/23 INSTAXTC-A12
ATTENTION:
With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties
TABLE OF CONTENTS
Connections
LD-AX-SWCX-AU1 ...............................................2
LD-AX-SWCX-AU2 ................................................3
Programming 4 .........................................................
Troubleshooting.....................................................5
Audi Data Interface with SWC 2002-2013
• Provides accessory power
(10-amp)
• Provides illumination output
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Micro-B USB updatable
• AXTC-A12 interface
• LD-AX-SWCX-AU1 Harness
• LD-AX-SWCX-AU2 Harness
• 3.5mm Adapter
APPLICATIONS
Applications below use
LD-AX-SWCX-AU1 Harness:
A3 2006-2013(1) ...............................................
A4/RS 4/S4 (with NAV) 2005-2008 .................
A4/RS 4/S4 2007-2008 .....................................
A4/RS 4/S4 2006 ...............................................
TT 2008-2013 ......................................................
Applications below use
LD-AX-SWCX-AU2 Harness:
A3 2006-2007(2) ..............................................
A4/S4 2002-2006(3) ........................................
A6 2004 ..............................................................
Allroad 2004-2005 ............................................
TT 2002-2006 .....................................................
(1) With either Symphony Plus or NAV radio.
(2) With Concert radio (without NAV)
(3) With Symphony radio (without NAV)
Visit
AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
2
20
3.5mm Jack
Connect to the jack on the radio
designated for an external steering
wheel control interface.
LD-AX-SWCX-AU1
Reset Button
LED Light
3.5mm Adapter (for radios with a wire for SWC)
Eclipse: /Brown - Brown/White Brown/White - Brown
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Universal Radio*: Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White *
* After programming, assign SWC buttons within radio menu
1. LD-AX-SWCX-AU1 harness only
2. For models without Bose only
3. For models with Bose only
4. Any remaining wires, tape off and disregard
Connection Notes

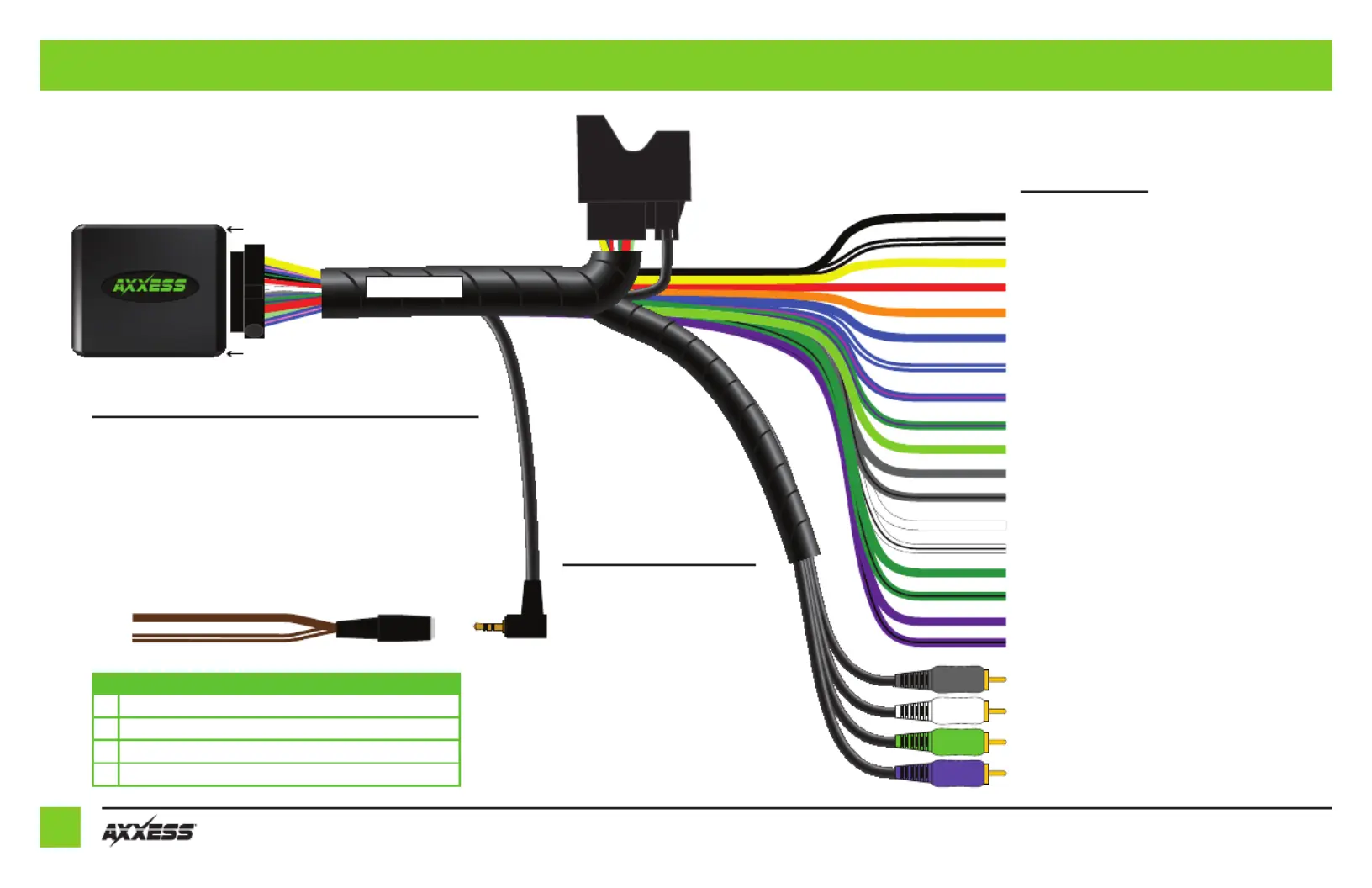

CONNECTIONS: LD-AX-SWCX-AU1 DIAGRAM
Radio Connections
Black - Ground
Black/White (1)- Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue (1)- Amp turn-on
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray (2)– Front right speaker +
Gray/Black (2) – Front right speaker -
White (2) – Front left speaker +
White/Black (2) – Front left speaker -
Green (2)– Rear left speaker +
Green/Black (2)– Rear left speaker -
Purple (2) – Rear right speaker +
Purple/Black (2)– Rear right speaker –
Gray RCA Jack (3)– Front right output
White RCA Jack (3)– Front left output
Green RCA Jack – Rear left output
Purple RCA Jack – Rear right output
3
REV. 8/24/23 INSTAXTC-A12

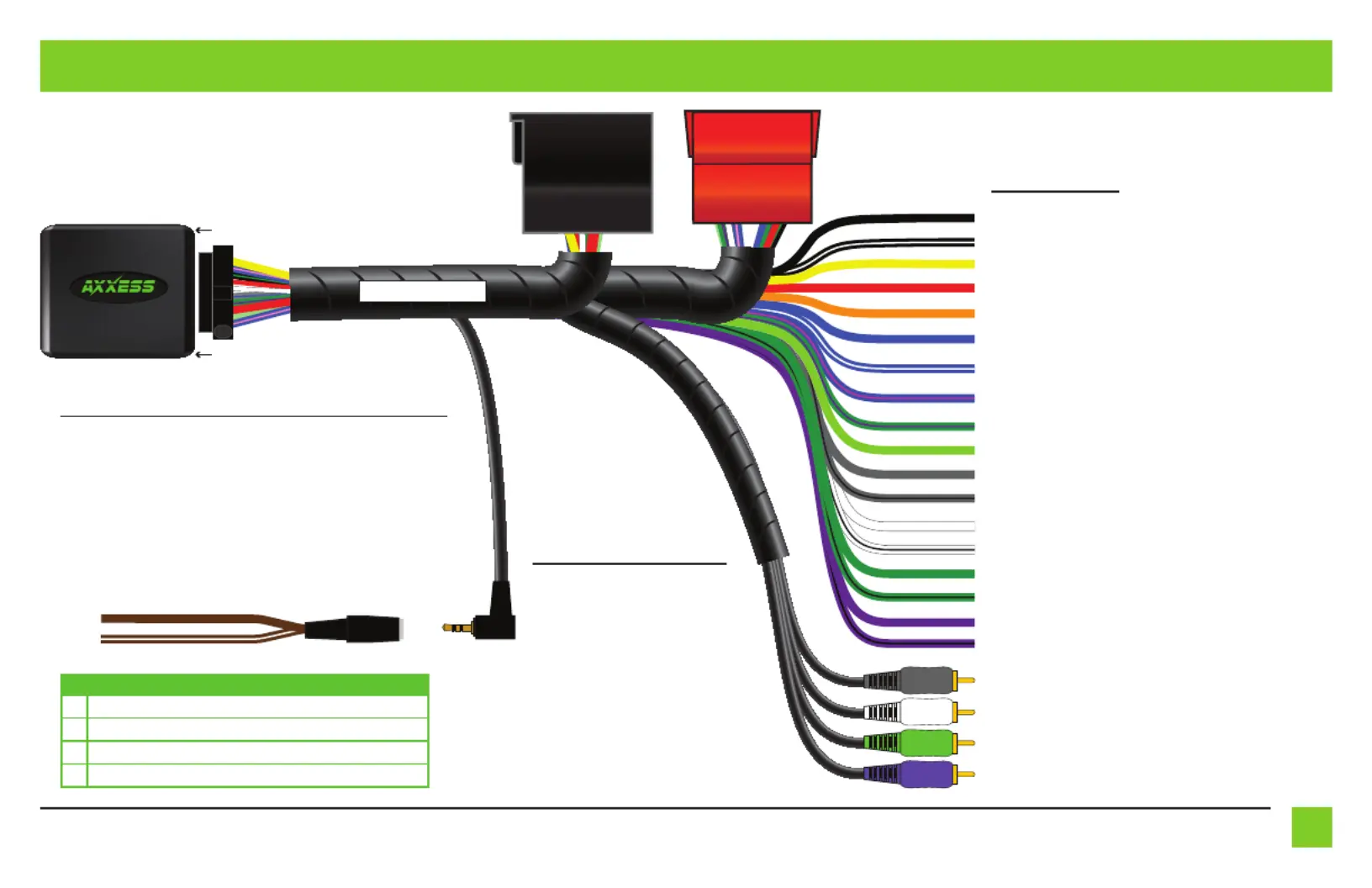

CONNECTIONS: LD-AX-SWCX-AU2 DIAGRAM
20
Radio Connections
Black - Ground
Black/White (1)- Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue (1)- Amp turn-on
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray (2)– Front right speaker +
Gray/Black (2) – Front right speaker -
White (2) – Front left speaker +
White/Black (2) – Front left speaker -
Green (2)– Rear left speaker +
Green/Black (2)– Rear left speaker -
Purple (2) – Rear right speaker +
Purple/Black (2)– Rear right speaker –
Gray RCA Jack (3)– Front right output
White RCA Jack (3)– Front left output
Green RCA Jack – Rear left output
Purple RCA Jack – Rear right output
Reset Button
LED Light
3.5mm Adapter (for radios with a wire for SWC)
Eclipse: /Brown - Brown/White Brown/White - Brown
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Universal Radio*: Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White *
* After programming, assign SWC buttons within radio menu
1. LD-AX-SWCX-AU2 harness only
2. For models without Bose only
3. For models with Bose only
4. Any remaining wires, tape off and disregard
Connection Notes
LD-AX-SWCX-AU2
3.5mm Jack
Connect to the jack on the radio
designated for an external steering
wheel control interface.
