AXSWCH-FD1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 12/29/21 INSTAXSWCH-FD1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
INTERFACE FEATURES
Prewired AXSWC harness
Retains the factory backup camera
INTERFACE COMPONENTS

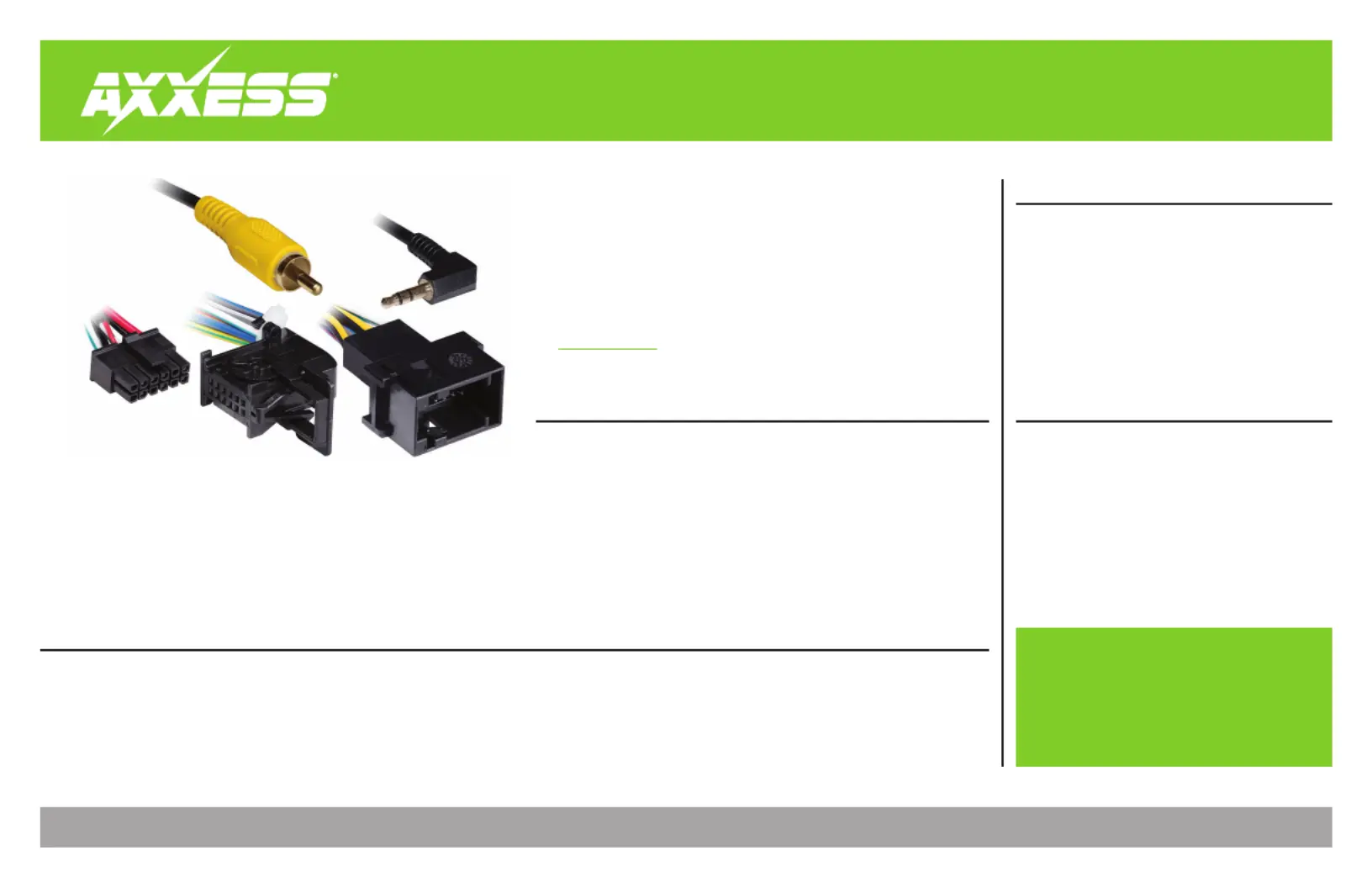

• AXSWCH-FD1 harness
• AXSWC interface (sold separately)
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors
(example: butt-connectors, bell caps, etc.)
or
• Solder gun, solder, and heat shrink
• Tape
• Zip-ties
TABLE OF CONTENTS
Connections ............................................................2
Plug and Play Harness for the AXSWC
Ford Fiesta 2011-2016
Ford Focus 2012-2016 (w/o SYNC)
Ford Transit 2012-2016 (w/CD & w/o NAV)
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle
specific applications
2
CONNECTIONS
12-pin pre-wired AXSWCH-FD1 harness:
This harness is a plug and play component that MUST be used with the AXSWC interface in order to retain steering wheel audio controls.
Note: Disregard the harness that comes with the AXSWC kit.
1. Replace the factory interface with the AXSWC interface, AXSWCH-FD1 harness AXSWC interface then plug into the .
2. Black Connect the wire to chassis ground.
3. Connect the Red wire to accessory power.
Important: Cut the Black/Green Green/Orange Black/Greenand wires and tie them off. For the Ford Fiesta, cut the wire only.
4. AXSWCH-FD1 harnessWith all connections complete, connect the to the wiring harness disconnected from the factory display screen.
To retain the factory backup camera:
Connect the Yellow RCA jack to the backup camera input of the aftermarket radio.
3
REV. 12/29/21 INSTAXSWCH-FD1
