I N S TA L L AT I O N I N S T R U C T I O N S
AXSUB-CH5
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 5/17/24 AXSUB-CH5
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. nsure that all installation E
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE: Refer also to the instructions included with
the aftermarket radio.
TABLE OF CONTENTS
Connections.................................................................2
Programming..............................................................3
Testing..........................................................................3
Specifications...............................................................3
Troubleshooting..........................................................4
INTERFACE FEATURES
CHRYSLER (Add a SUB) Interface
2013-UP
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications

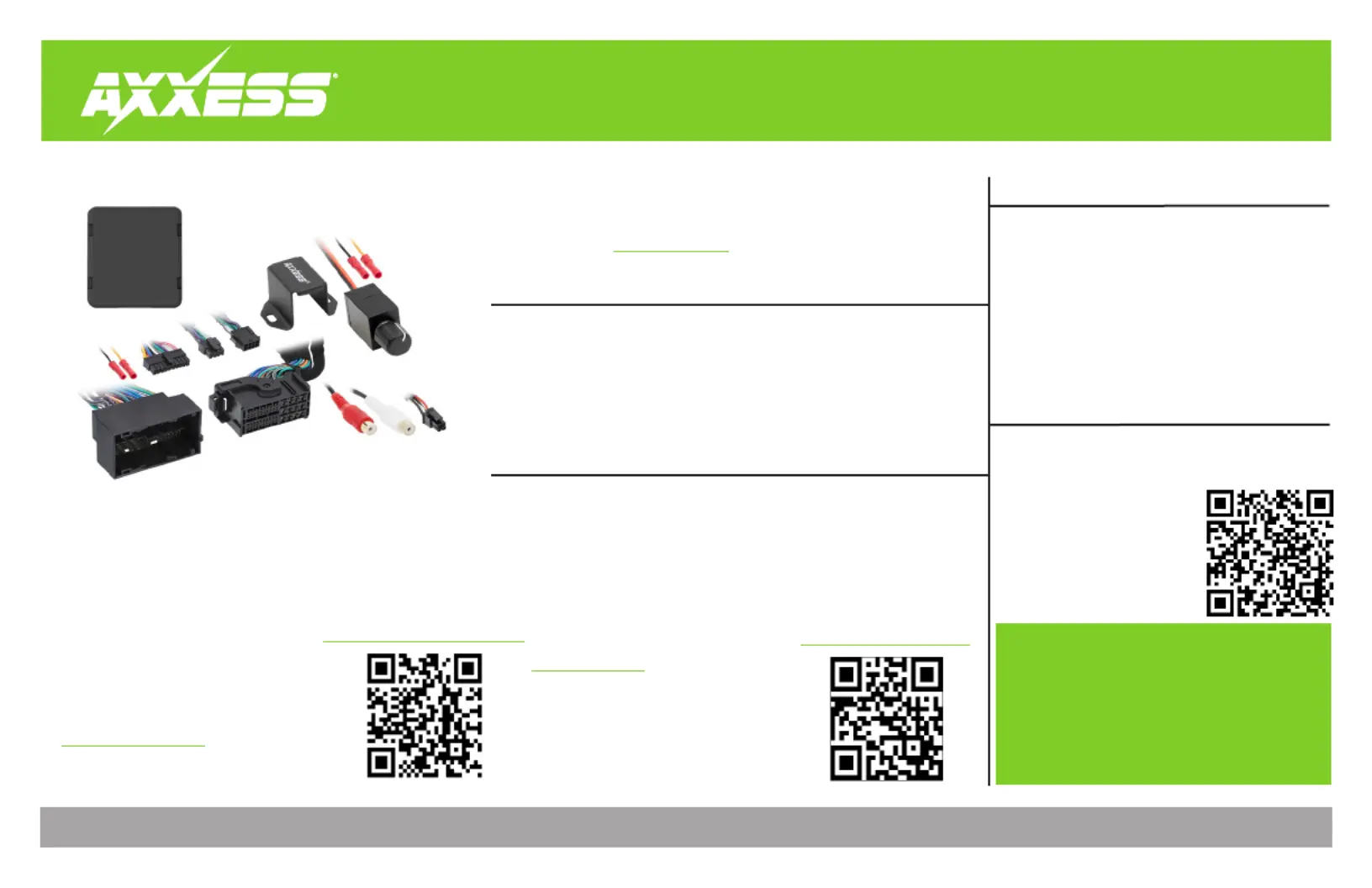

INTERFACE COMPONENTS
• AXSUB-CH5 interface
• AXDSPX-CH5 vehicle T-harness (LD-DSP-CH5)
• Bass knob (LD-BASSKNOB)
• ANC-CHH2 ANC bypass harness
• Can be used in amplified and non-amplified models
• Easy behind the radio installation with pre-wired harness
• Bass knob included for level control of subwoofer amp
• Micro-B USB updatable
www.AxxessInterfaces.com www.MetraOnline.com
MetraOnline.com may be used to assist
with dash assembly instructions. Simply
enter your Year, Make, Model vehicle
into the vehicle fit guide and look for
the Dash Kit Installation Instructions.
If the vehicle is equipped with Active noise
cancelation (ANC) microphones, they will
need to be bypassed. Please refer to www.
Axxessinterfaces.com for ANC bypass
harnesses offered for select vehicles.
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
• Zip ties
• Multimeter
ANC-CHH2 info
TOOLS REQUIRED
2

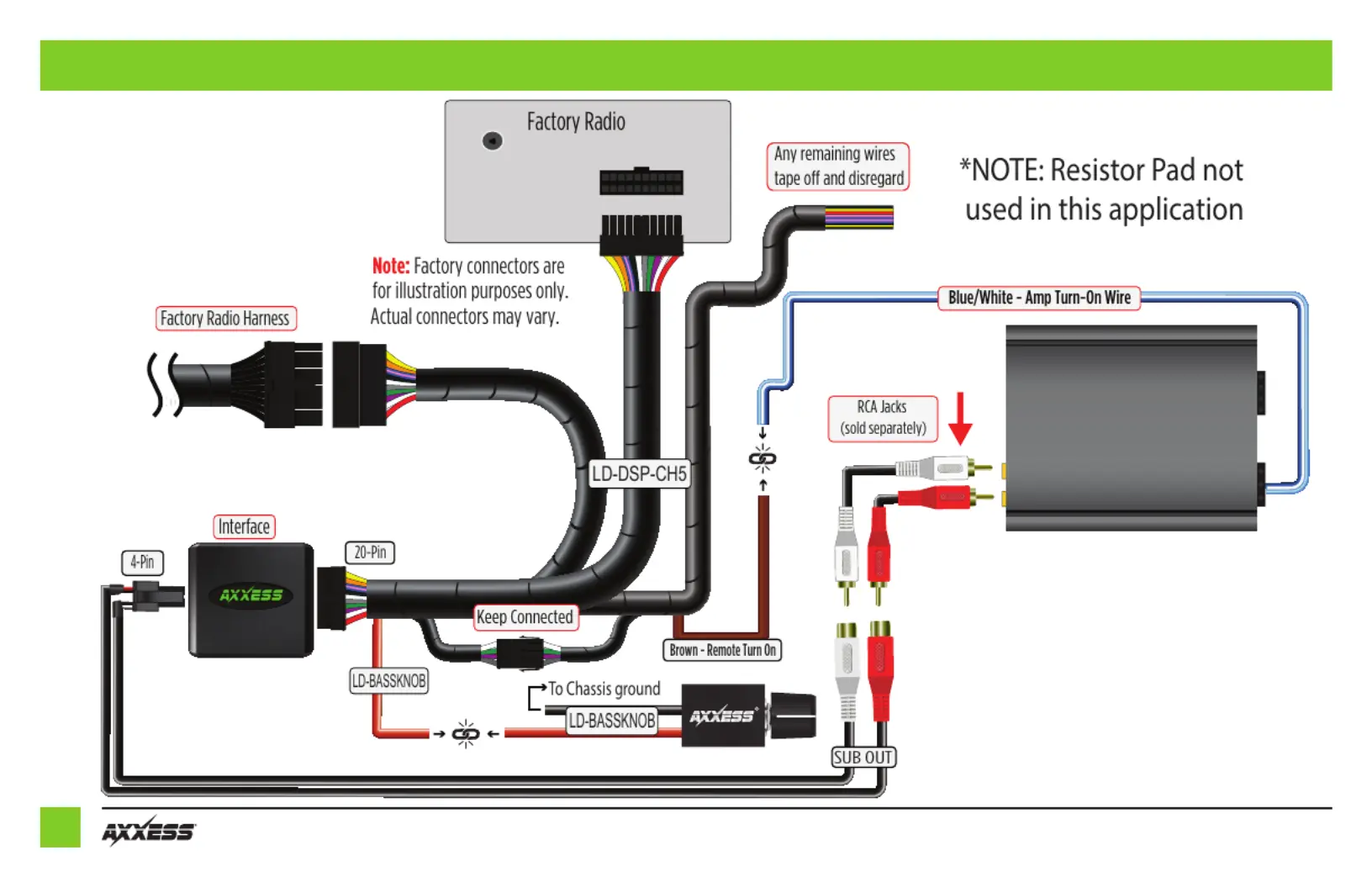

CONNECTIONS
3
PROGRAMMING
REV. 5/17/24 AXSUB-CH5
TESTING
1. With everything plugged in Turn on ignition and make sure audio volume is turned all the
way down. Also ensure that your LD-BASSKNOB is turned all the way to the left.
2. Increase audio volume to desired listening level.
3. Wait for aftermarket amp to turn on (up to 15 seconds).
4. You are now programmed .
1. Turn on audio and increase volume to desired level.
2. Rotate the LD-BASSKNOB to the right to increase SUB level. Turn to the left to decrease
SUB level.
NOTE: Lowering the bass or volume knob completely will deactivate the aftermarket
amplifier. Similarly, muting the radio will also result in turning off the aftermarket amplifier.
SPECIFICATIONS
•
2 Channel non-fading 5V RMS output
• Fixed low pass frequency of 234Hz
• 250mA remote turn on output

Produktspezifikationen

Marke: AXESS
Kategorie: niet gecategoriseerd
Modell: AXSUB-CH5
